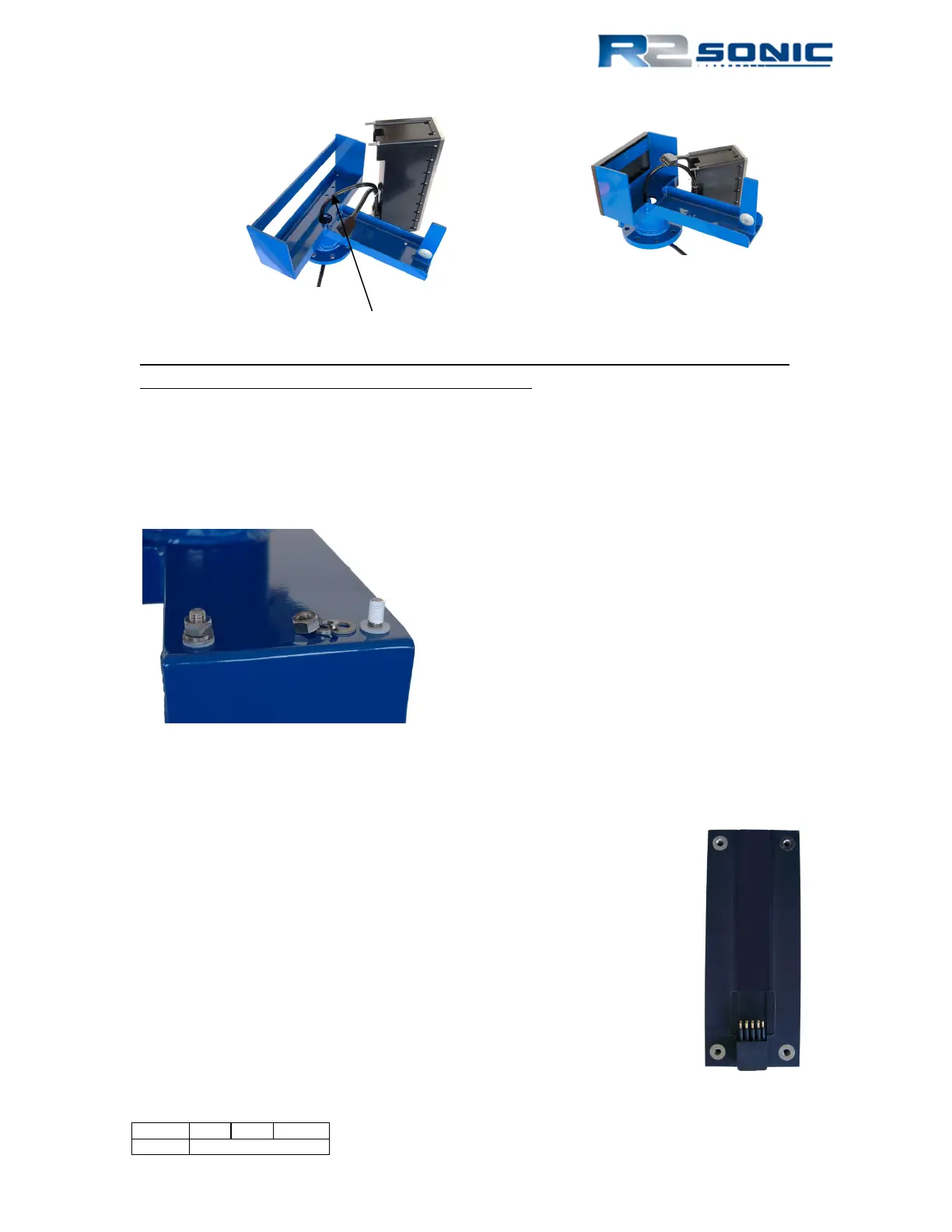

Figure 11: Receive Module with cables connected
Prior to mounting the Receive Module, the block that holds the sound velocity probe must be
secured through the underside of the mounting bracket. Next, mount the Receive Module in the
mounting frame. This can be most easily done by putting the receive module face on a piece of
cardboard or other material and then lowing the mounting frame down with the threaded bolts
passing through the mounting frame. The threads, of the securing bolts, after passing through the
frame, must be wrapped with 2 wraps of Teflon™ tape. This is to prevent galling where the nut will
freeze on the bolt. Do not tighten beyond 17Newton metre (150 pound-inch or 12.5 pound-foot).
Figure 13: Position the insulating bushing, then wrap threads with Teflon tape, then secure with flat washer, locking
washer and then nut.
3.1.3 Mounting the Projector
The projector is secured to the frame with two, 35mm stand offs. The
stand-offs allow room for the Projector to Receive Module cable to be
run. A 6mm drive hex screw secures the projector through the stand-
off. The Projector’s connector faces towards the protection fin.
Connect the 0.439m interconnect cable’s female end to the Projector’s
male bulk head connector. When the connectors are mated, there
should be no visible gap between them. A very light spray of silicon
lubricant will aid seating the connector.
Figure 12: Sonic 2024 Projector
SV Probe block is secured, via screws, though the underside of the mounting frame
Page 27 of 210
Version 5.0 Rev r002
Date 05-08-2014
