2.7

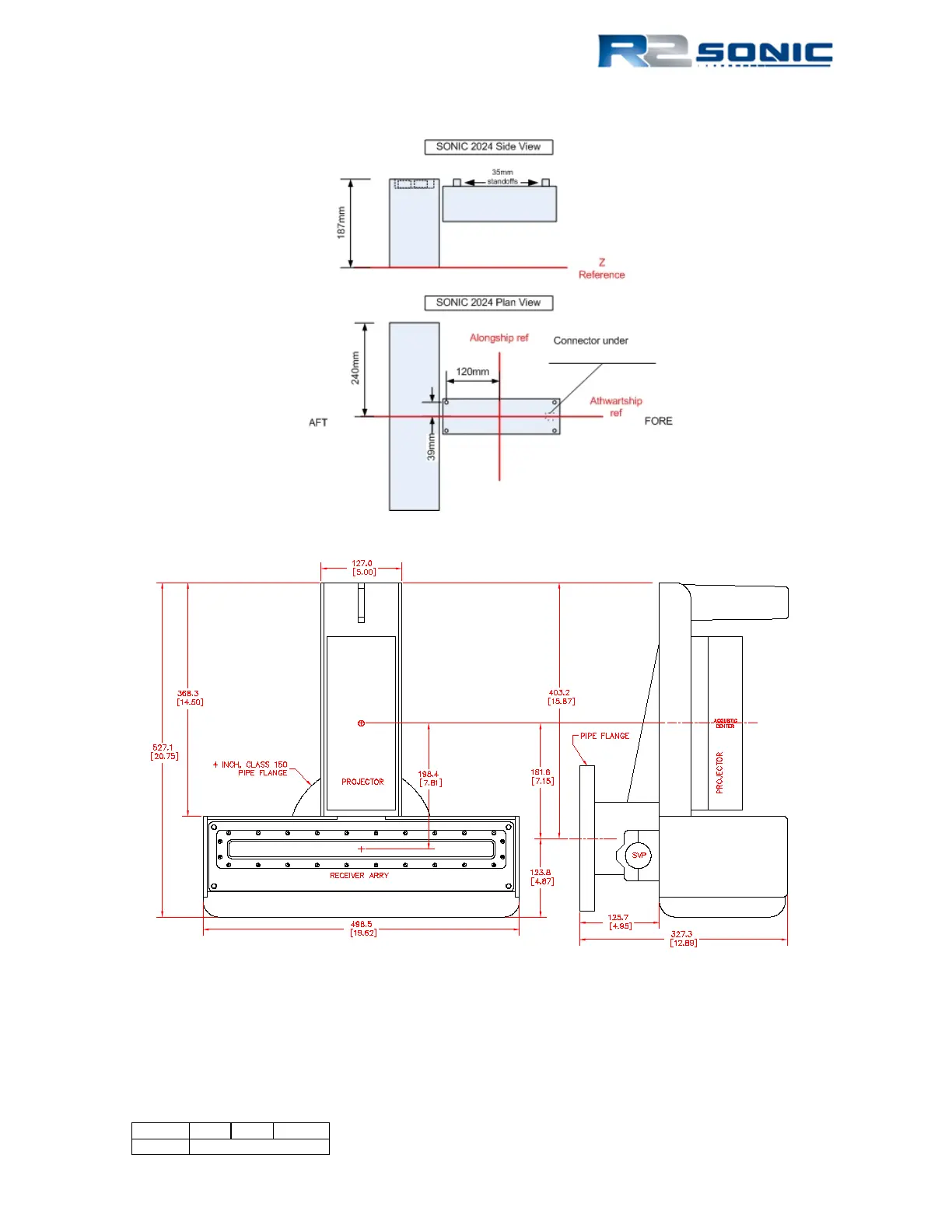

Acoustic Centre
Figure
2
: Sonic 2024 Acoustic Ce
ntre
Figure
3
: Sonic 2024 Acoustic Ce
ntre as Mounted
Centre of F
la
nge
to Alongship offs
et =
0.182
m
(0.597ft)
Top of F
lang
e
to Z refere
nce =
0.327m
(1.073ft)
