7.4 Setup in Sonic Control
7.4.1 Network Setup
In the event that the Applanix IP address is lost and no connection can be made through POSView it
can be reset through the R2Sonic GUI. To change the IP address of the POS/MV, reboot the SIM box,
open the R2Sonic GUI and go to Settings>Network Settings and under “INS IP” enter the desired IP.
The POS/MV takes approximately 2 minutes to power on, once the POS is fully booted, the IP can be
set in the R2Sonic GUI. Once the POS is fully booted the user has 5 minutes to change the IP address
of the POS/MV. Attempting to change the IP address, outside of the 5 minute window, will result in
a warning that the SIM box must be rebooted before changing the INS IP.

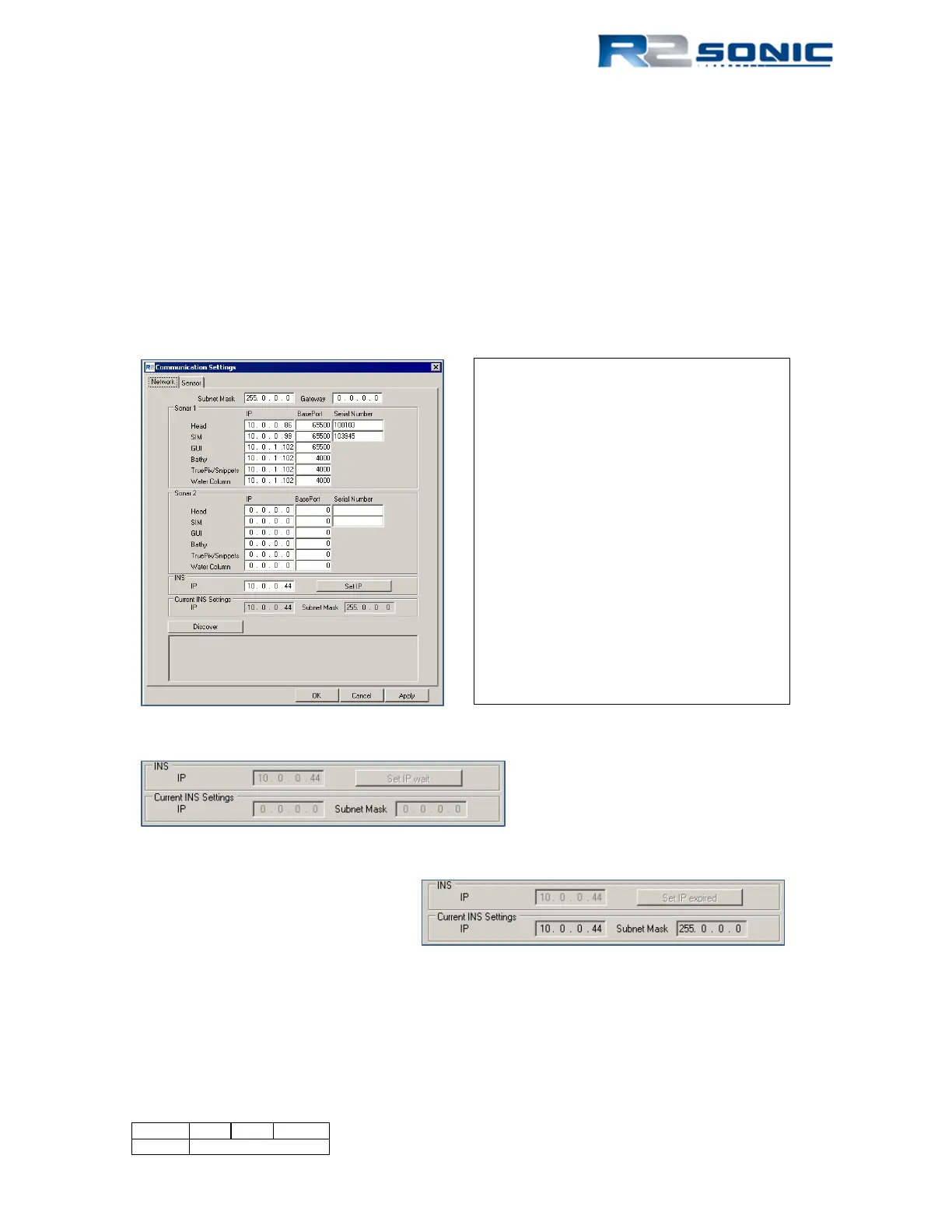

Figure 109: Network Settings SIMINS
Figure 110: Cannot Change IP, waiting on msg 32
Figure 111: Set IP time expired, cannot change IP
0 to 1min: Button label is "Set IP wait" and button text is
greyed out. The INS IP cannot be updated during this
period. The GUI is waiting for the INS to send out
message 32.
After ≈ 1 - 2 mins: the GUI will allow changes to the INS IP
address. The actual time depends on when the GUI starts
receiving message 32 from the INS.
From ≈1min (2min) to 7min: INS IP address can be
changed. Button text turns from greyed out to black text
and says "Set IP".
After 7 min: INS won't accept change in IP address.
Button text color is greyed out and label says "Set IP
expired".
