13.5 SIM Installation – ROV
The SIM can be installed either top-side or in the vehicle. There are advantages to both methods
which depend on the multiplexer capabilities. For SIM installation in the vehicle, the SIM Controller
board may be removed from the SIM or supplied as an additional item. The SIM controller board
uses a PC/104 size format, but does not use the PC/104 bus.

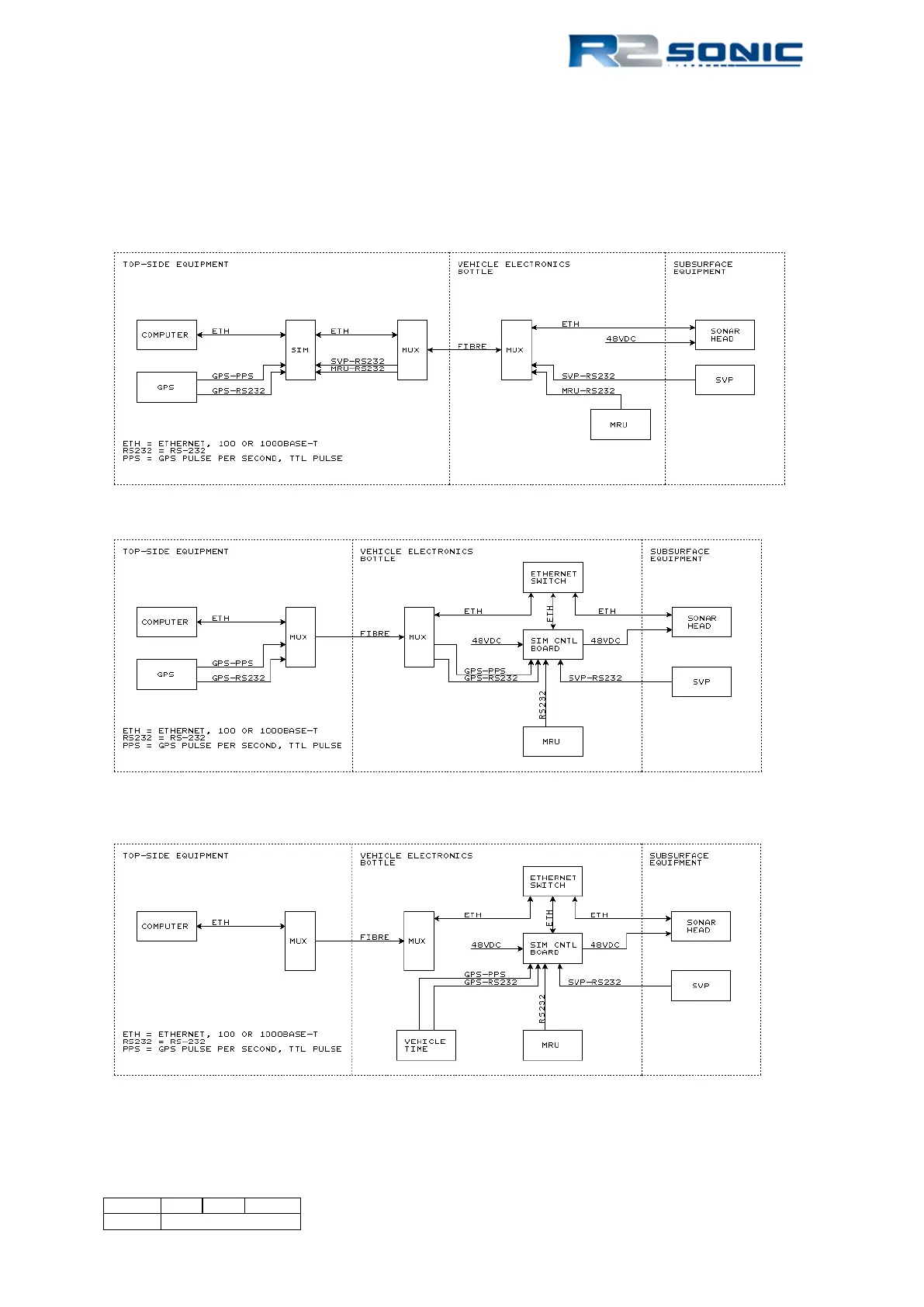

Figure 153: ROV installation block diagram with the SIM top-side
Figure 154: ROV installation block diagram with the SIM controller board mounted in the vehicle electronics bottle and
GPS (ZDA or UTC formats) and PPS signals are supplied by top-side equipment
Figure 155: ROV installation block diagram with the SIM controller board mounted in the vehicle electronics bottle. GPS
(ZDA or UTC formats) and PPS signals are supplied by the vehicle time system.
Page 159 of 210
Version 5.0 Rev r002
Date 05-08-2014
