7.3.3 I2NS DB9 Connections
The I2NS has two serial communication ports. These are standard DB9M serial connections that are
setup in the POSView software. Both ports are bi-directional and can be configured to receive RTCM
corrections or to output standard NMEA or binary serial data. For full information on the serial
ports, please refer to the POSView documentation.

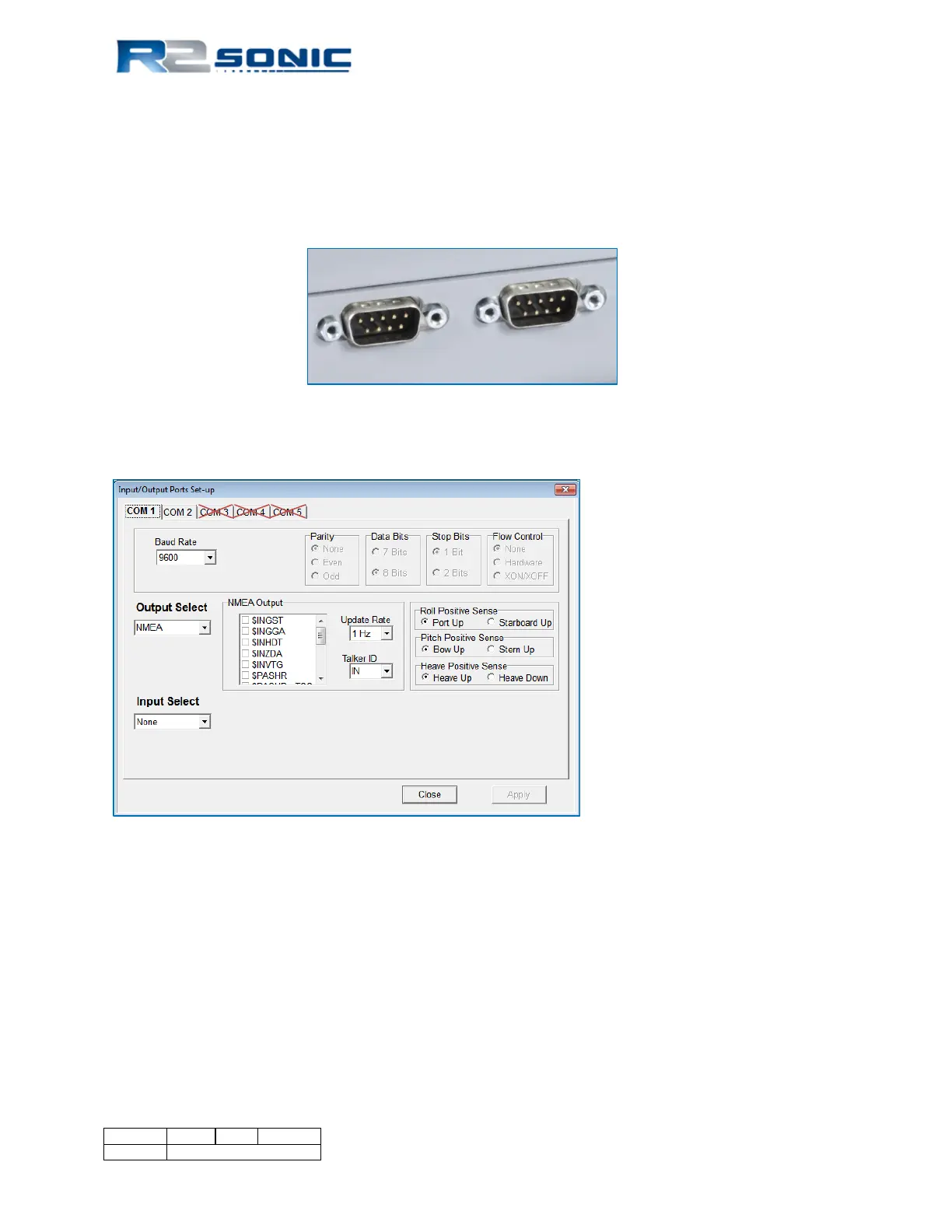

Figure 107: Com 1 and Com 2 on SIMINS for POS MV serial data
In POSView, in the Input/Output Ports Set-up, only COM 1 and COM 2 are to be configured.
Figure 108: POSView Serial port setup
