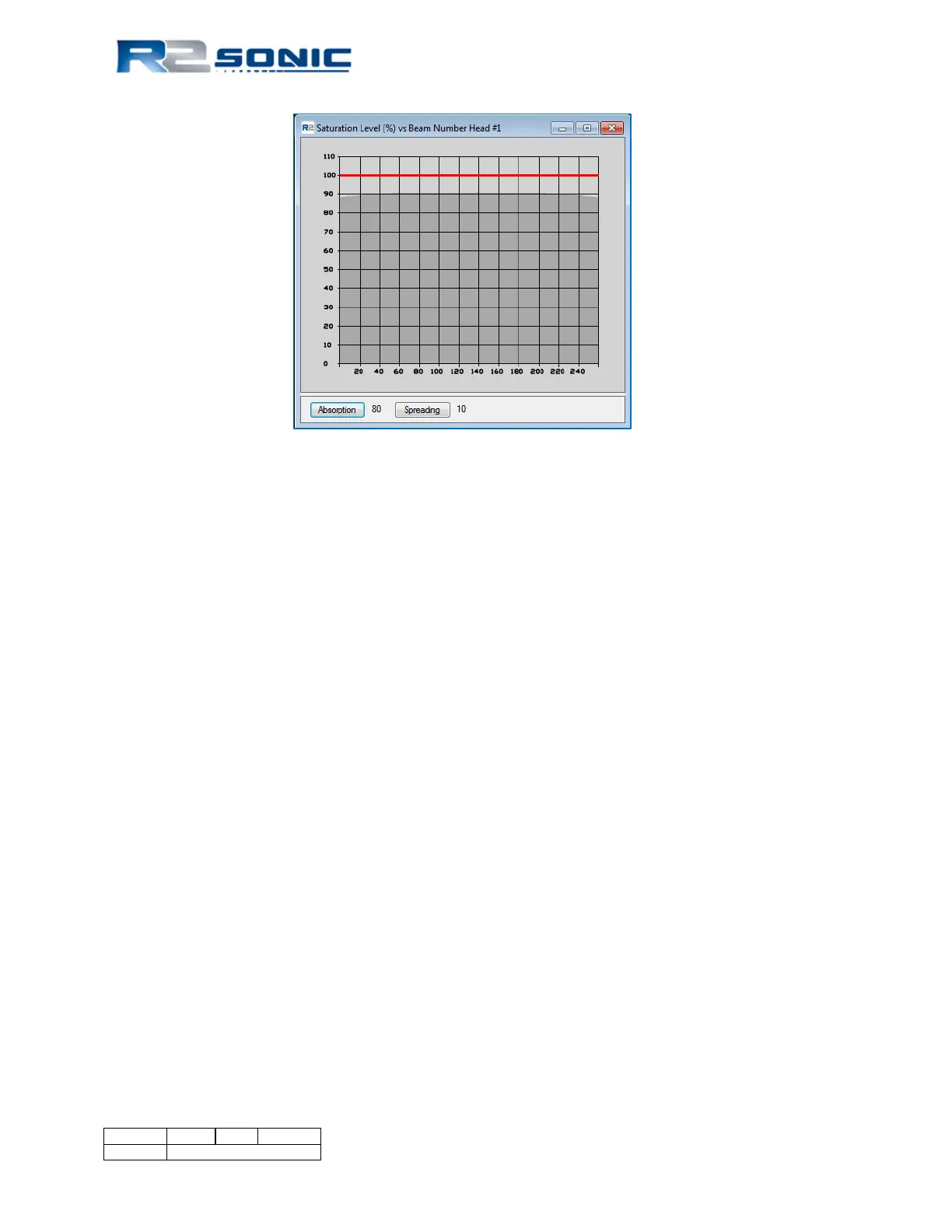

Figure 74: Saturation Monitor
The factors that control intensity are:
1. Power
2. Pulse Width
3. Gain
4. TVG Parameters
a. Spreading Loss
b. Absorption
When the Saturation Monitor is opened, the user can adjust the above parameters to maintain
signal levels below the red 100% saturation line. The TVG parameters can be changed, directly in
the monitor window, without having to go to the Settings | Ocean menu.
