MVC-FD83/FD88
CAMERA SIGNAL PROCESS, CAMERA DSP, VIDEO DECODER, LENS MOTOR DRIVE, AUDIO INTERFACE, MEDIA CONTROL
FD CONTROL, MODE CONTROL, A/V OUT, AUDIO A/D D/A CONVERTER, DC/DC CONVERTER
FC-70
4-9
4-10
FC-70 (CAMERA SIGNAL PROCESS, CAMERA DSP, VIDEO DECODER, LENS MOTOR DRIVE, AUDIO INTERFACE, MEDIA CONTROL, FD CONTROL,
MODE CONTROL, A/V OUT, AUDIO A/D D/A CONVERTER, DC/DC CONVERTER) PRINTED WIRING BOARD
– Ref. No.: FC-70 board; 1,000 series –
• For Printed Wiring Board.
• FC-70 board is 6-layer print board. However, the patterns of
layers 2 to 5 have not been included in the diagram.
• There are few cases that the part isn't mounted in this model
is printed on this diagram.
• Chip transistor

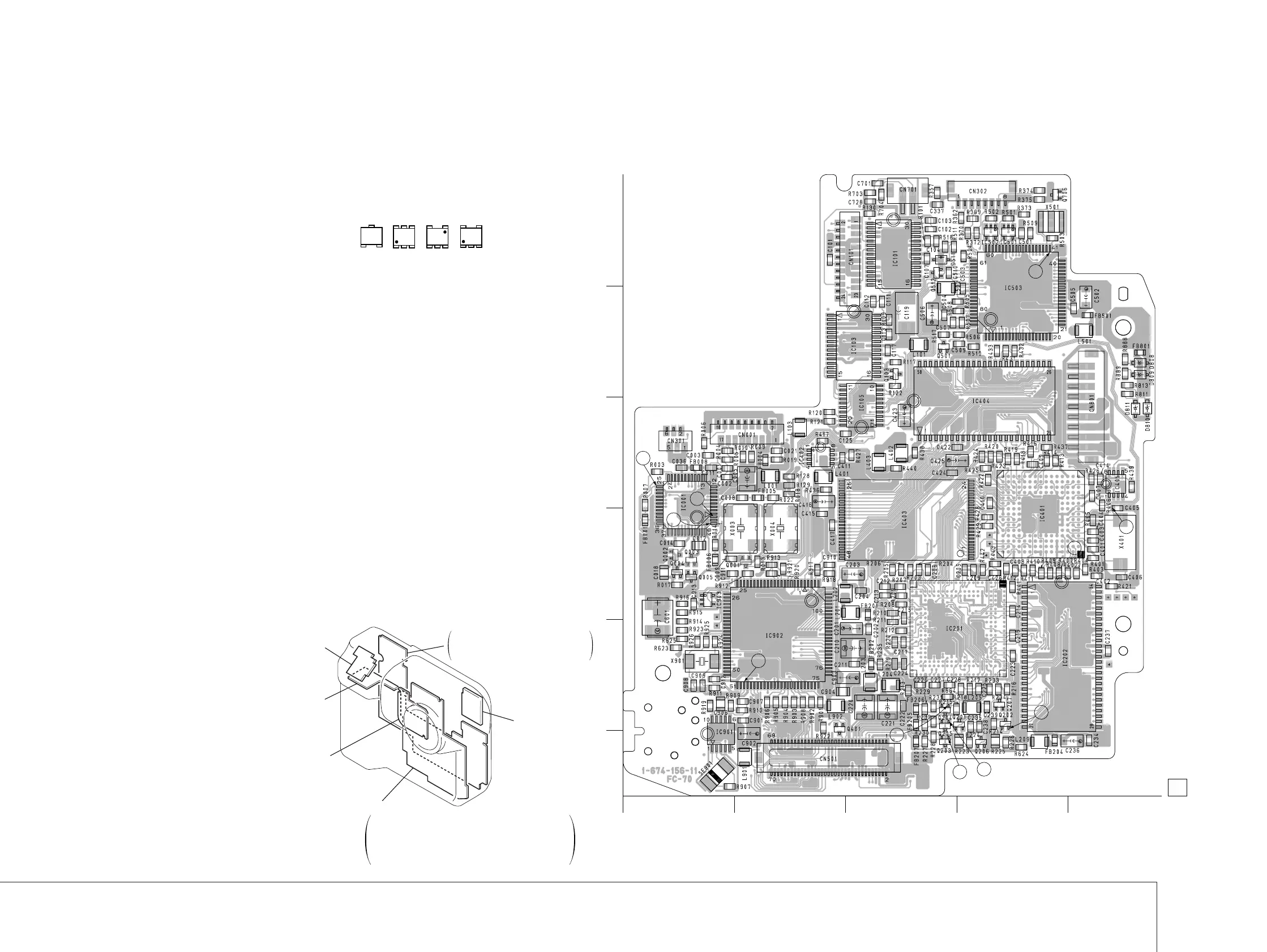

FC-70 BOARD (SIDE A)
C001 C-1
C002 C-1
C003 C-1
C005 C-2
C008 C-2
C009 D-1
C011 C-1
C012 D-1
C014 D-1
C018 D-1
C021 C-2
C036 C-1
C101 A-2
C102 A-3
C103 A-3
C104 A-3
C107 A-3
C111 B-3
C112 B-3
C113 B-3
C117 B-3
C119 B-3
C125 C-2
C201 E-3
C202 E-3
C203 D-3
C204 D-3
C205 D-4
C206 D-3
C209 D-4
C210 E-3
C211 E-3
C212 D-3
C213 D-3
C214 D-4
C215 D-3
C217 E-3
C219 E-4
C220 E-3
C221 E-3
C222 E-3
C223 E-4
C224 E-3
C225 E-4
C226 E-3
C227 E-3
C228 E-3
C234 F-5
C235 E-4
C236 F-5
C237 E-5
C238 E-4
C239 E-4
C401 D-5
C402 D-5
C403 D-5
C404 D-5
C405 C-5
C406 D-5
C407 C-5
C408 D-4
C409 C-4
C410 C-4
C411 C-2
C414 C-5
C415 D-2
C416 C-2
C417 D-2
C422 C-3
C423 C-3
C424 C-3
C425 C-3
C426 D-4
C501 A-4
C502 B-5
C503 B-4
C504 B-3
C505 B-5
C506 B-3
C510 A-3
C601 D-1
C901 E-2
C902 F-2
C903 E-3
C904 E-2
C906 E-1
C907 E-2
C908 E-1
C909 E-1
C913 D-1
CN001 C-2
CN101 A-3
CN301 C-1
CN302 A-4
CN501 F-2
CN701 A-3
CN801 C-5
D808 B-5
D809 B-5
FB001 D-1
FB004 C-2
FB005 C-2
FB006 D-1
FB008 C-1
FB201 D-3
FB202 E-3
FB204 F-4
FB205 E-3
FB206 E-3
FB207 F-3
FB501 B-5
FB801 B-5
IC001 C-1
IC101 A-3
IC103 B-3
IC105 C-3
IC201 E-4
IC202 E-4
IC401 D-4
IC402 C-2
IC403 D-3
IC404 C-4
IC405 C-5
IC503 B-4
IC901 F-1
IC902 E-2
IC903 D-1
L001 C-2
L101 B-3
L103 C-2
L201 D-3
L202 D-2
L203 E-3
L204 E-3
L205 E-4
L209 F-4
L401 C-2
L402 C-3
L403 C-3
L501 B-5
L502 B-3
L901 F-2
L902 E-2
Q001 D-2
Q002 D-1
Q003 D-1
Q004 D-1
Q005 D-1
Q103 B-3
Q201 E-4
Q202 E-4
Q203 F-3
Q204 E-3
Q205 E-3
Q206 F-4
Q207 E-4
Q401 E-2
Q501 B-3
Q512 A-3
Q706 A-4
R003 C-1
R004 C-1
R005 C-1
R006 C-1
R007 C-1
R009 C-2
R010 C-2
R013 D-2
R014 D-1
R017 D-1
R019 C-2
R022 C-2
R117 B-3
R120 C-2
R121 C-2
R122 B-3
R129 C-2
R130 A-3
R203 D-3
R204 D-3
R205 D-3
R206 D-3
R207 D-3
R208 D-3
R210 D-3
R211 E-3
R212 E-3
R213 E-3
R214 E-4
R215 E-3
R216 E-4
R217 E-4
R218 E-4
R219 E-3
R220 E-3
R223 F-4
R224 F-4
R225 F-4
R226 F-4
R227 F-3
R228 F-3
R229 E-3
R230 E-3
R231 E-3
R232 E-3
R233 E-4
R234 E-4
R235 E-3
R357 A-3
R362 A-4
R369 A-4
R370 A-4
R372 A-4
R373 A-4
R374 A-4
R375 A-4
R401 D-5
R404 D-5
R405 D-5
R406 C-5
R407 D-4
R408 D-4
R409 D-4
R410 D-4
R411 D-4
R413 C-4
R414 C-4
R416 C-4
R417 C-2
R418 C-4
R419 C-4
R420 C-4
R421 D-5
R422 C-4
R423 C-4
R424 C-4
R425 C-4
R426 C-5
R427 C-3
R428 D-4
R429 D-4
R431 B-4
R432 B-4
R433 B-4
R436 C-2
R437 C-4
R438 C-3
R440 C-3
R441 D-4
R442 D-4
R443 D-4
R501 A-4
R502 A-4
R503 A-4
R504 A-4
R505 B-4
R506 B-4
R508 B-4
R509 A-4
R510 B-4
R511 A-3
R517 B-3
R518 A-3
R623 E-1
R624 F-4
R625 E-1
R703 A-3
R704 A-3
R811 B-5
R813 B-5
R888 B-5
R889 B-5
R901 E-2
R902 E-2
R903 E-2
R904 E-2
R905 E-2
R906 E-2
R908 E-2
R909 E-1
R910 E-2
R911 E-1
R912 D-2
R913 D-2
R914 E-1
R915 D-1
R916 D-1
R917 D-2
R918 D-2
R919 E-1
R922 E-2
R923 E-1
R964 E-3
SE901 F-1
T801 C-2
X003 D-2
X004 D-2
X301 E-3
X302 F-2
X401 D-5
X501 A-4
X901 E-1
EB
C
31
5
5
2
46
345
21
321
45
RL-54 (FD83)
RL-56 (FD88)
(RELEASE SWITCH)
PK-47 (FD83)
PK-48 (FD88)
REC/PB AMP, MOTOR DRIVE,
LCD DRIVE, TIMING GENERATOR,
MODE SWITCH, BACK LIGHT DRIVE
FU-135 (FD83)
FU-137 (FD88)
(DC IN)
CD-228 (FD88)
CD-229 (FD83)
(CCD IMAGER)
Flush Unit
FC-70
CAMERA SIGNAL PROCESS, CAMERA DSP,
VIDEO DECODER, LENS MOTOR DRIVE,
AUDIO INTERFACE, MEDIA CONTROL, FD CONTROL,
A/V OUT, AUDIO A/D D/A CONVERTER,
DC/DC CONVERTER
FC-70 BOARD (SIDE A)
