Control Stick Tension Adjustment
Removing the Back of the Transmitter
Remove the battery cover by pressing down on the ridged areas of the cover and sliding the cover towards the
bottom of the transmitter. Unplug the battery and set it aside. Carefully remove the screws from the back of the
transmitter using a small Phillips screwdriver.
Note: Use care when installing the screws securing the back of the transmitter. They are
threading into plastic and can be stripped if over-tightened.
SPEKTRUM DX7 • INTRODUCTION

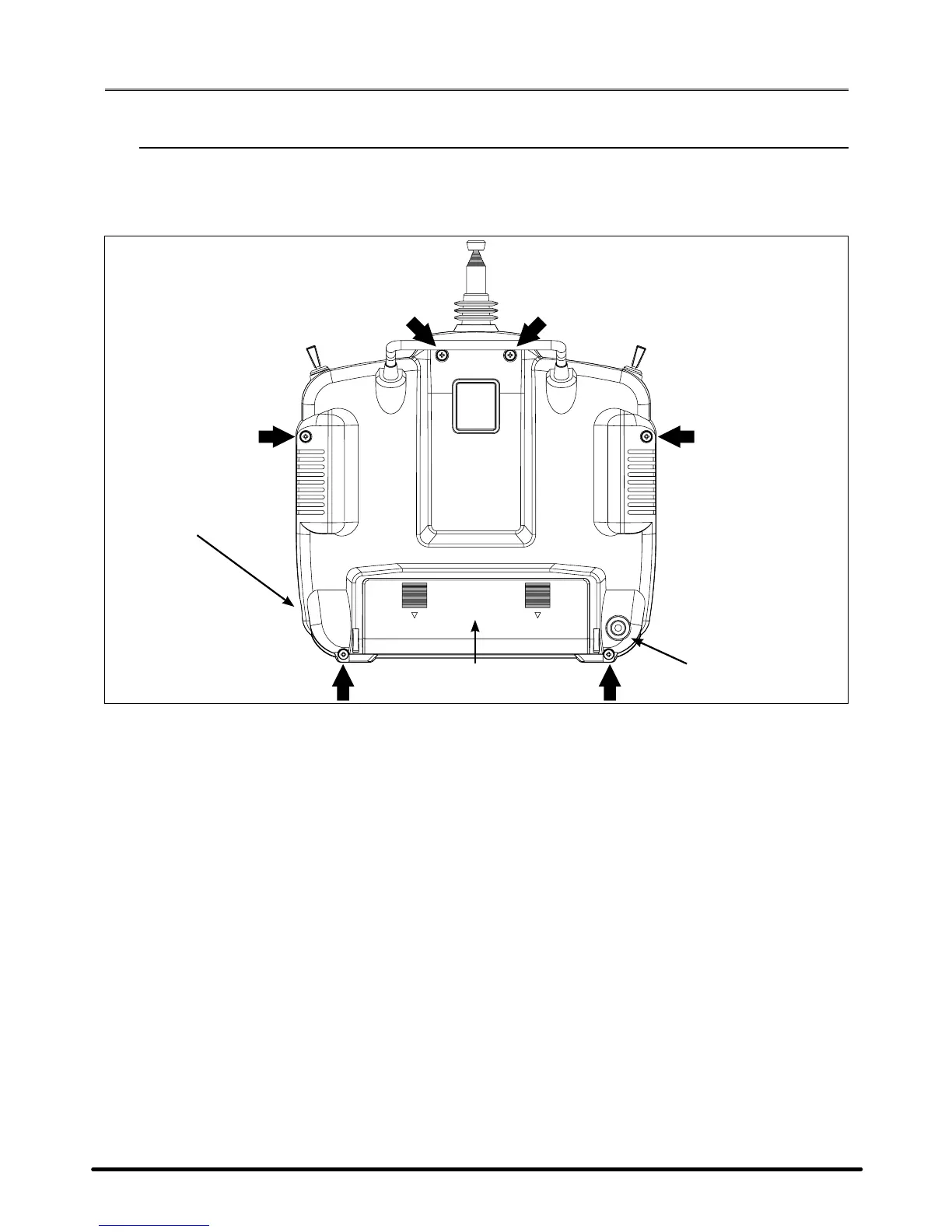

CHARGING JACK FOR
NI-CD BATTERY
BATTERY COVER
TRAINER JACK
CAUTION: THE BATTERY CONNECTOR
IS KEYED SO THAT IT CAN ONLY BE PLUGGED
IN ONE DIRECTION. DO NOT FORCE.
