Spektrum DX7 - Flaperon Wing Type Servo Connections; Delta Wing Type Servo Connections; V-Tail Type Servo Connections

41SPEKTRUM DX7 • AIRCRAFT PROGRAMMING GUIDE
Wing Type (continued)

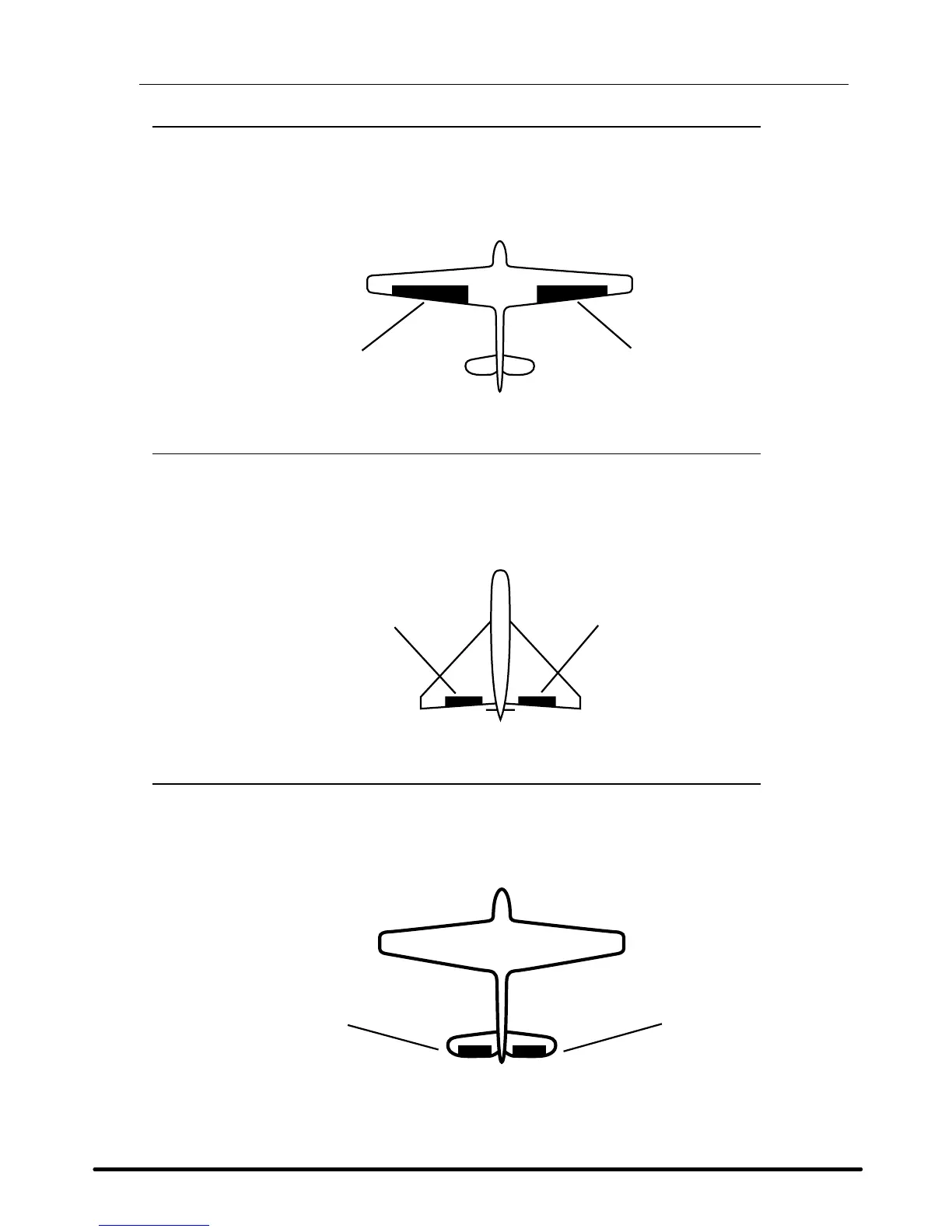

Flaperon Wing Type Servo Connections
• AILE servo port (right aileron)
• AUX1 servo port (left aileron)
AUX1 Servo Port
(Left Aileron)
AILE Servo Port
(Right Aileron)
Flaperon Wing Type Connection
Delta Wing Type Servo Connections
• ELEV servo port (right aileron)
• AILE servo port (left aileron)
AILE Servo Port
(Left Aileron)
ELEV Servo Port
(Right Aileron)
Delta Wing Type Connection
V-Tail Type Servo Connections
• RUDD servo port (right V-tail)
• ELEV servo port (left V-tail)
ELEV Servo Port
(Left V-Tail)
RUDD Servo Port
(Right V-Tail)
V-Tail Type Connection
