For use on dierent crops, the toolbar can be equipped with a
double hitch frame. This double hitch frame allows the implement to
be mounted in two dierent positions. The implement can then be
mounted centrally or laterally oset from the tractor’s centre.

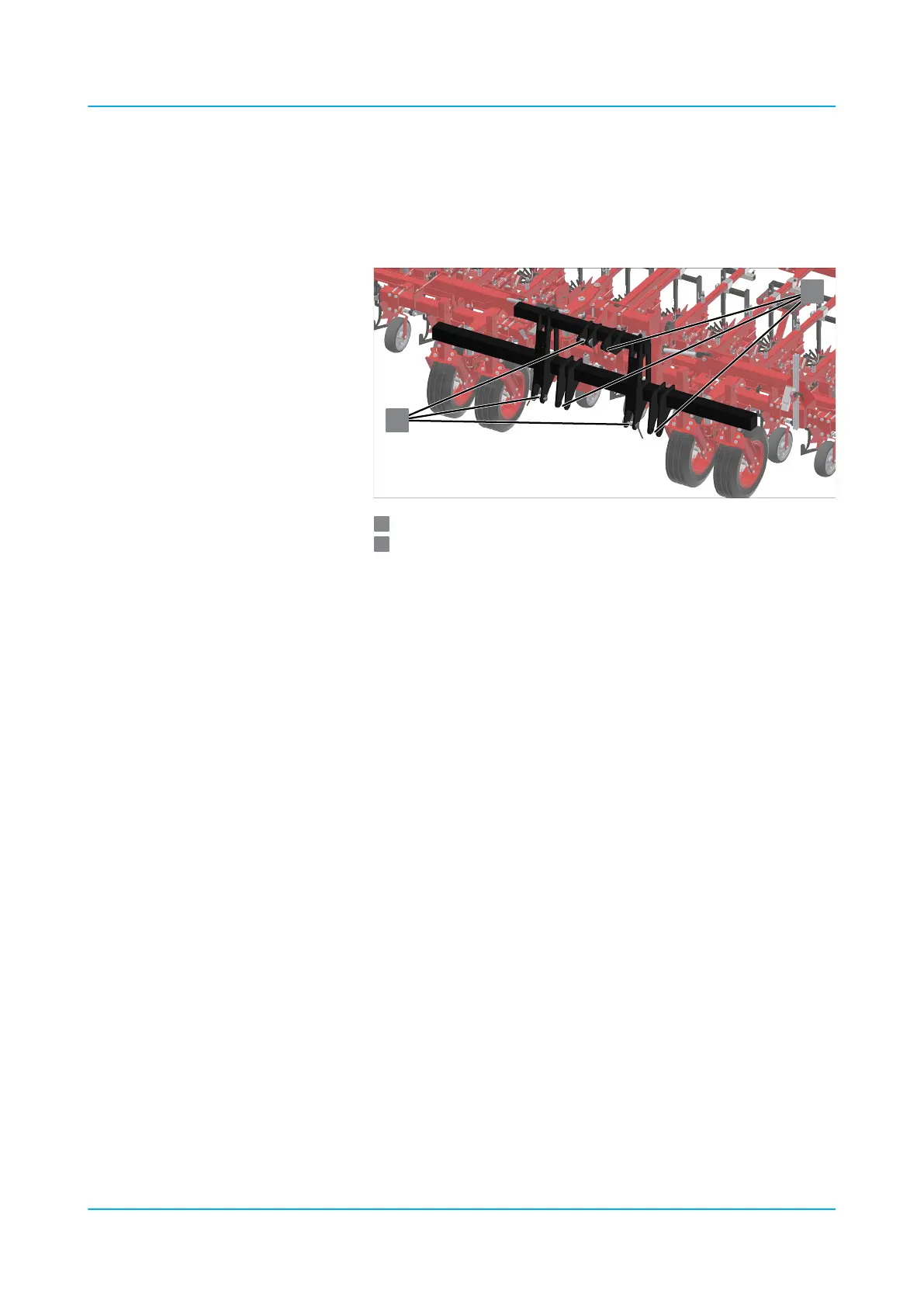

Attachment points for central attachment position
Attachment points for laterally oset attachment position
1. Determine the attachment position for the current crop.
2. Fit pins and balls into the top link recess and the lower link
recesses.
3. Mount the implement as described.
Like the rear-mounted implement, the front-mounted implement has a
headstock.
► Similar to rear mounting, mount the implement on the front three-
point linkage of the tractor.
Attachment of a double hitch frame
Front mounting of the implement to
the tractor
Attaching
