1. Grasp the Basic-Element/TRS-Element at a xed component and lift
it, e. g. at the tool holder
2
or at the rear of the parallelogram
1
.
2.
Attach the catch hook
3
at the pin
4
.
1. To release the catch hook, slightly lift the Basic-Element/TRS-Ele‐
ment.
2. Release the catch hook .
CAUTION: Risk of being crushed due to the dead weight of the
element
n Do NOT touch the shearing points of a moving part.
n Hold the element rmly.
3. Lower the hoeing element.
6.2.2.2 Lift and lower Combi-Element mechanically
For mechanical lifting, Combi-Elements in the parallelogram have a
lifting mechanism.
1
Lifting mechanism
2
Catch hook
3
Pin
4
Latch with handle (handle not shown)

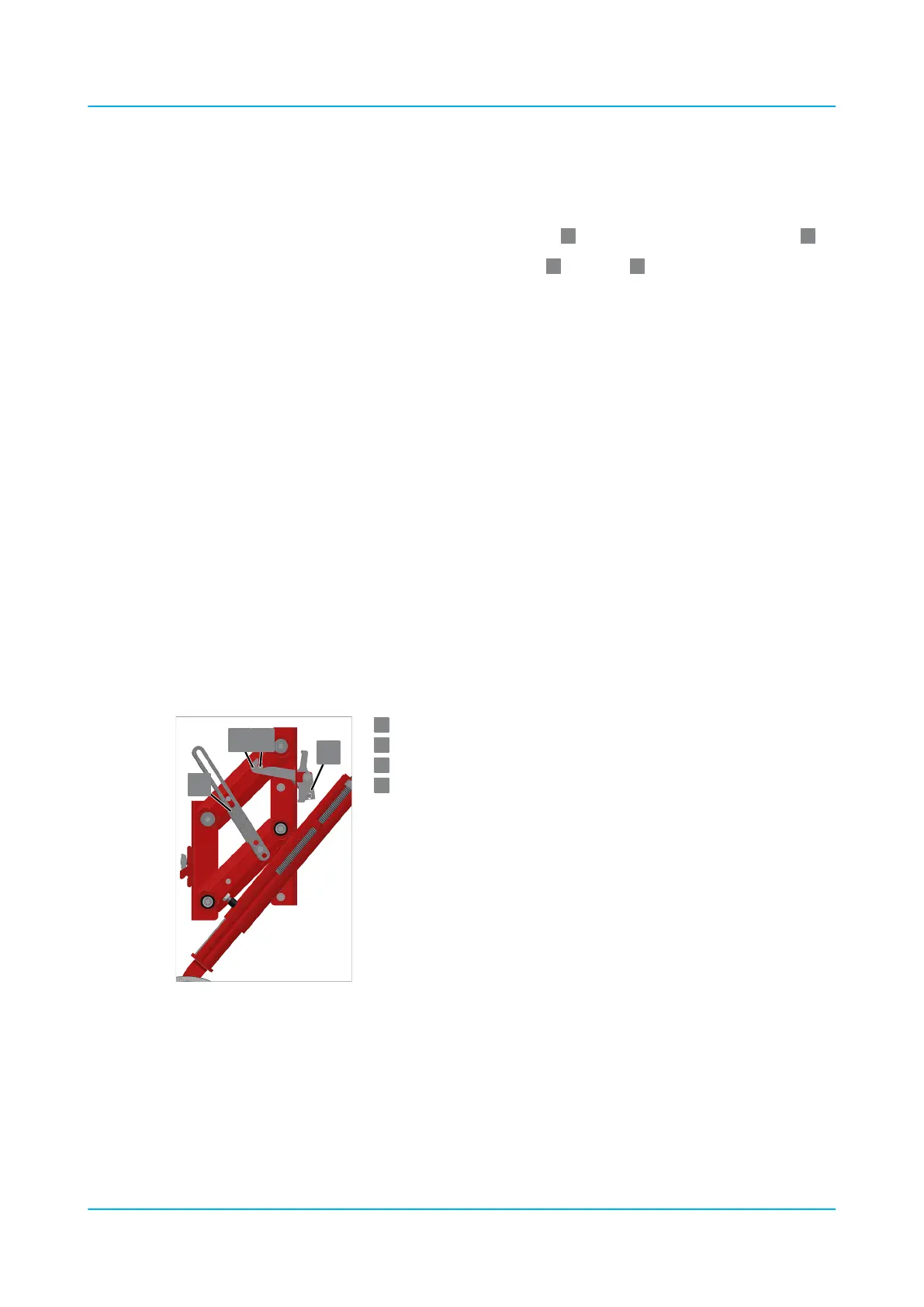

Section through the parallelogram of a Combi-Element
Lift Basic-Element/TRS-Element
Lower Basic-Element/TRS-Element
1
2 3
4
Operation
