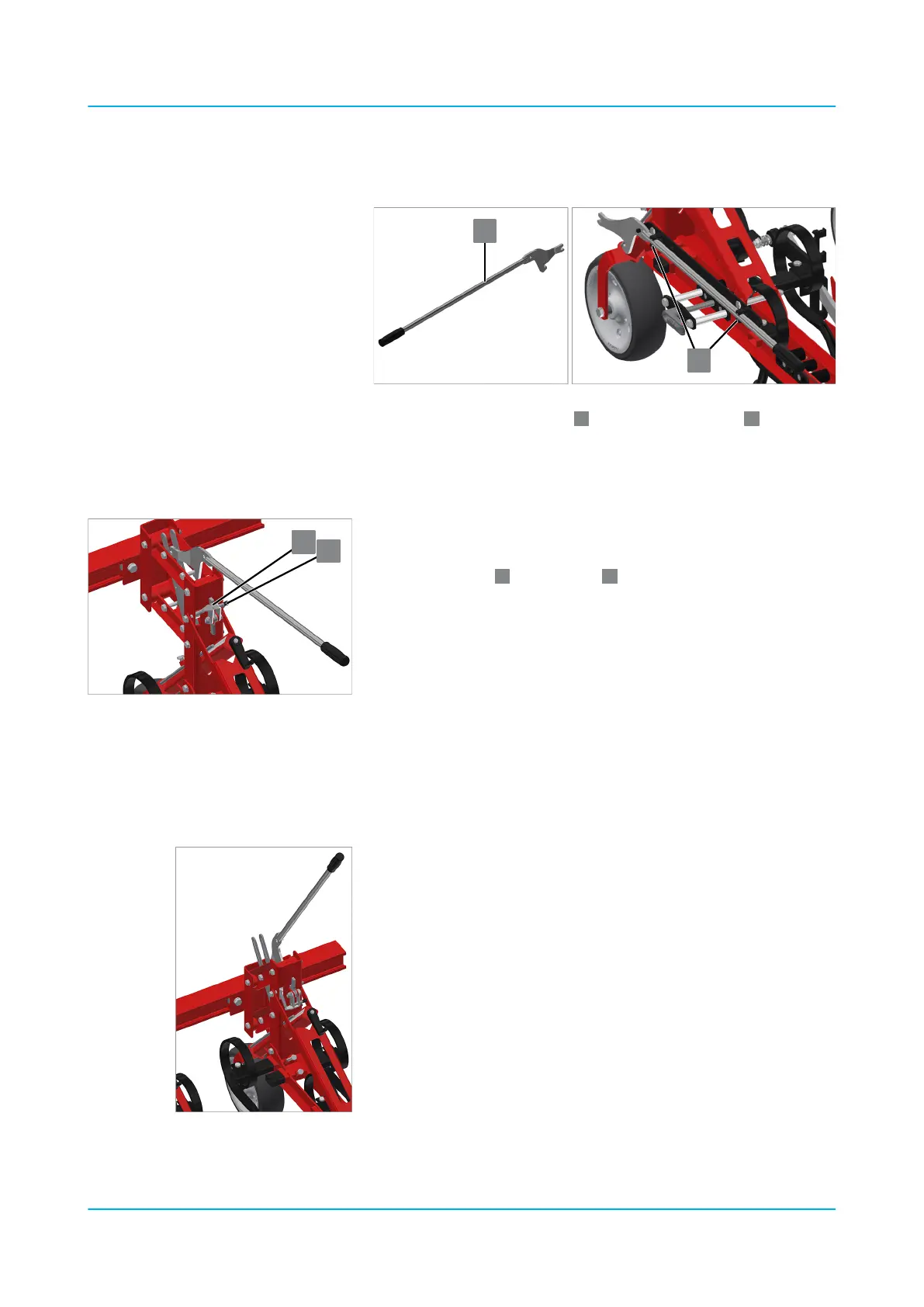

A lifting tool is supplied for lifting and lowering:
1
2
1
Lifting tool
2
Holder
When not used, the lifting tool
1
is hooked into a holder
2
on the
outer Combi-Element.
1. With the latch in the raised position and the released catch hook,
insert the lifting tool into the lifting mechanism.
2.
Hold the latch
1
at the handle
2
and press downwards.
ð
The catch hook engages at the pin in the parallelogram.
3. Raise the lifting tool.
ð
The Combi-Element is lifted.
1. With the latch in the lowered position, insert the lifting tool into the
lifting mechanism.
2. Hold the latch at the handle and pull upwards.
ð
The catch hook remains locked.
3. Raise the lifting tool until the catch hook is released.
ð
The Combi-Element is lowered.
Lifting tool
Lift Combi-Element mechanically
1
2
Lifting tool inserted into the lifting mecha‐
nism of the parallelogram
1
Latch
2
Handle
Lower Combi-Element mechanically
Operation
en-GB | Item no. 17513597 | BA 02/05-2022 59
