Maintenance 6
Maintenance every 500 hours
1044_110-001
3
2
1
4
Servicing the electric motors
Checking the cable connections

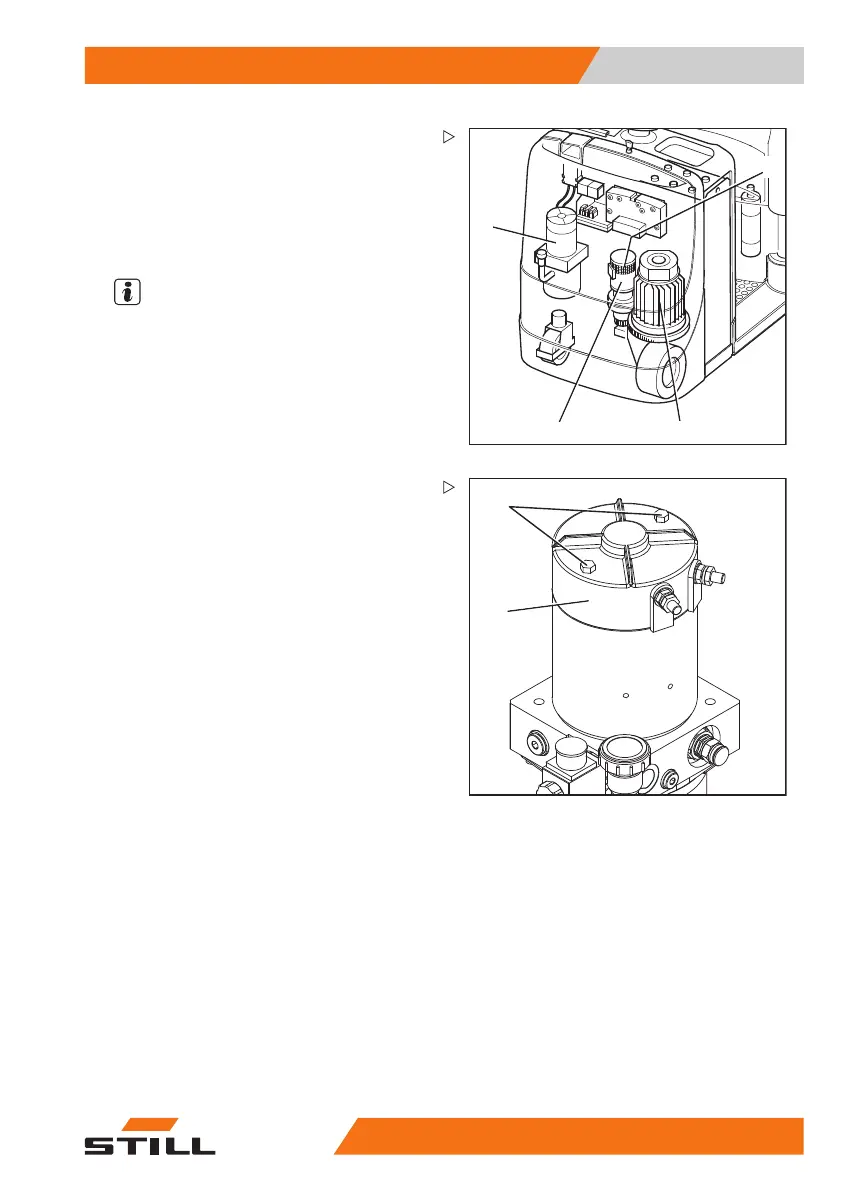

– Check the traction motor (3) and pump
motor (1) and steering motor (2) cables
for secure connection, condition and
insulation.
NOTE
Corroded connections and broken cables lead
to drops in voltage, leading to malfunctions.
– Remove any corrosion and r
enew broken
cables.
1044_110-002
6
5
Change the pump motor and the steering
motor brushes
– Shut down the pall
et truck, remove the
battery connecto
r. Remove the front
bonnet.
To access the motor brushes:
– Remove the pump motor screws (6) and
take off the cap (5).
– Open the cover ba
nd (4) on the steering
motor.
– Lift the brush springs up and take out the
brushes.
The brushes (7) may only be worn down to a
50
