Overview 4
Options and variants
Load back rest with vertical pallet
hook (optional)
Hand protective guard (L):
Do not remove the guard
Before using the truck, check that there is a
protective guard and that this guard is intact
The system allows you to transport empty
pallets in a vertical position in the following two
ways:

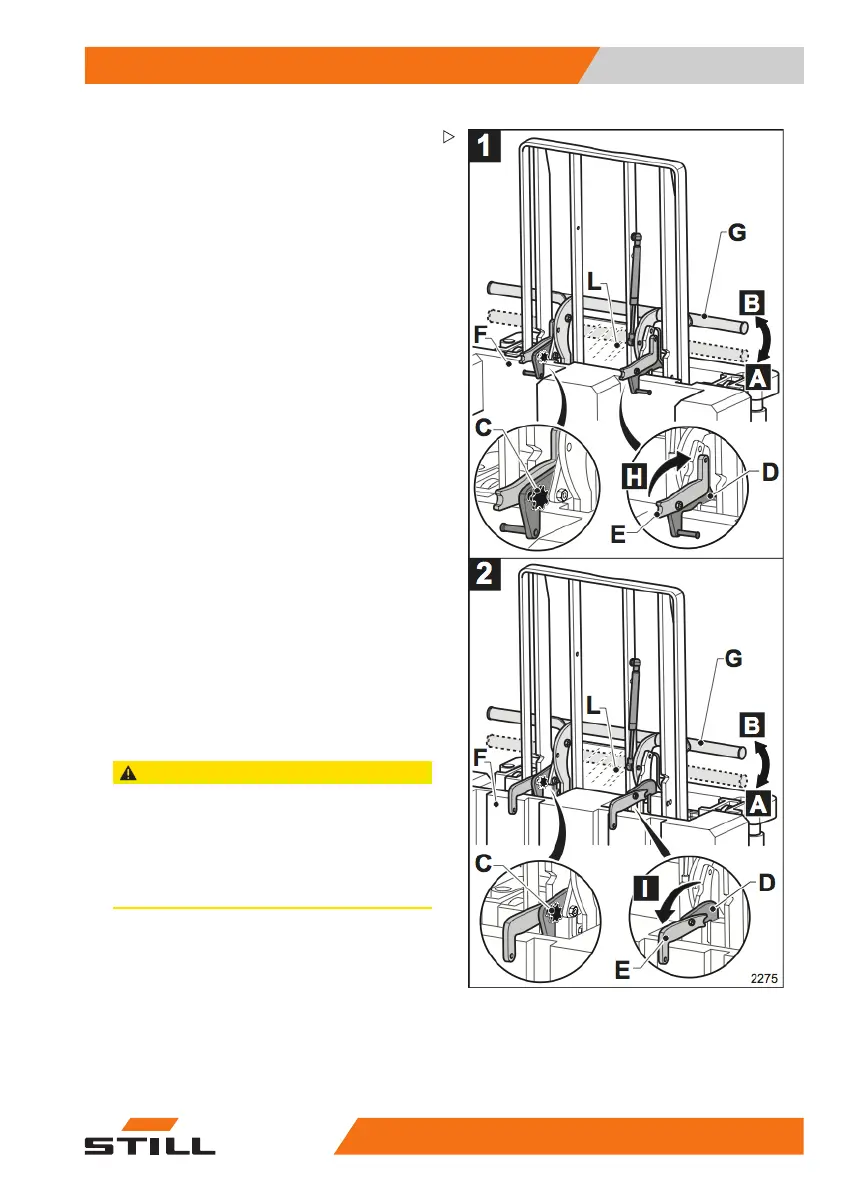

See image (1) The pallet (F) is held by the
clamp (D)
See image (2) The pallet (F
) is held by the
clamp (E)
If the pallet to be transp
orted is positioned as
shown in image (1),thecl
amp (E) should be
turned backwards (H). Pr
ocedure:
Pull the bar (G) upwards (B) to lower the
clamps (D) and (E)
Unscrew the knob (C)
Turn the clamp (E) backw
ards (H)
Completely screw in the knob (C)
Repeat the preceding steps for the other
clamp (E)
Push the bar (G) downwa
rds (A) to raise
clamps (D) and (E)
Position the pallet in the position defined
(1) and clamp it between the clamps (D),
pulling the bar (G) towards (B)
CAUTION
Risk of crushing hands and feet
While moving the bar (G) towards (A) or (B), keep
your hands away from the clamps (D - E) of the
pallet lock.
When manually positioning the pallet, be careful
that the pallet does not fall.
If the pallet to be transported is positioned as
shown in image (2), the clamp (E) should be
turned forwards (I). Procedure:
Pull the bar (G) upwards (B) to lower the
clamps (D) and (E)
Unscrew the knob (C)
Turn the clamp (E) forwards (I)
Completely screw in the knob (C)
50
108043405 [EN] 53
