Still CX - Steering; Brakes

Operation 5
Driving
1044_420-001
1

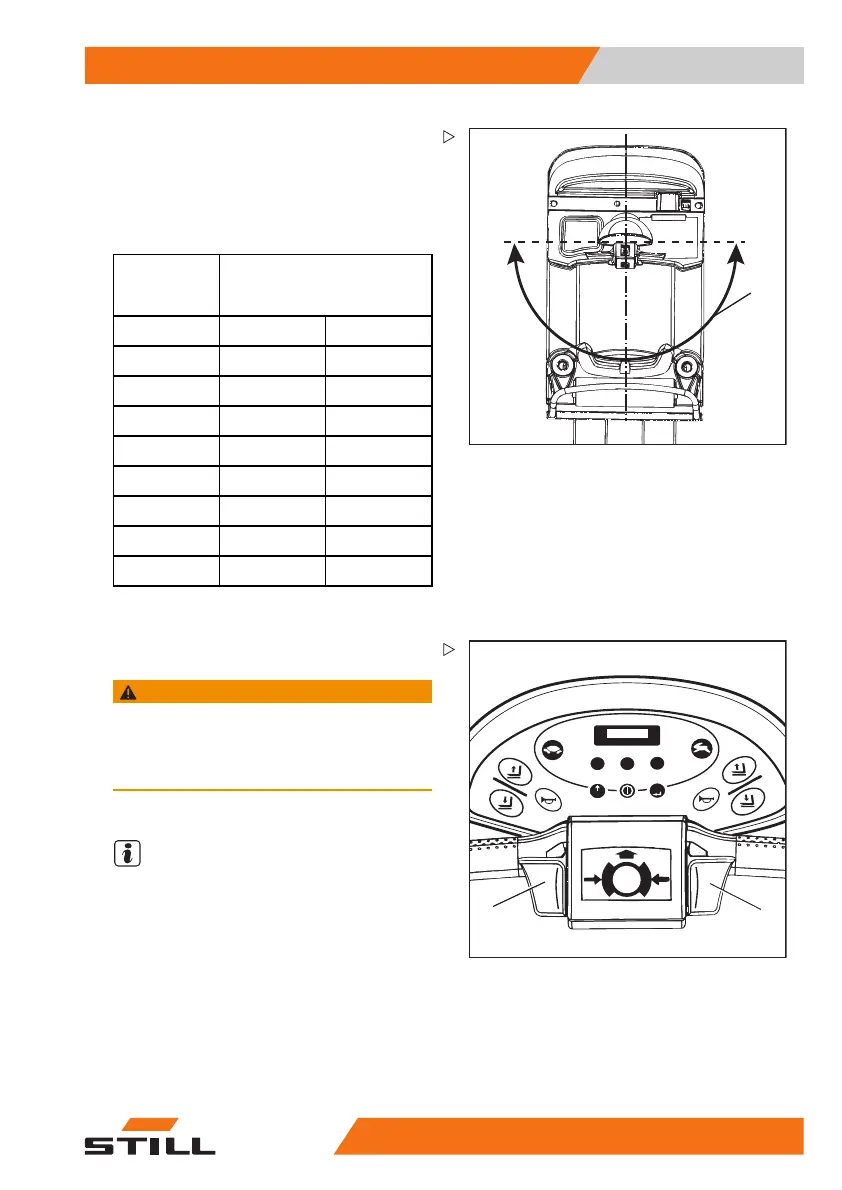

Steering
Thetruckissteeredbyturningthetillerin
range (1).
The turning radius (Wa) depends on the fork
length and the battery (refer to the table).
Turning radius (Wa) values
for the calculation of aisle
widths (all values in mm)
Fork lengths
450 Ah 600 Ah
1190 2430 2516
1450 2690 2776
1650 2530 2616
2150 3030 3116
2390 3270 3356
2390 3040 3126
2900 3550 3636
3100 3550 3636
.
123
456
789
PRG
PRG
1044_501-009
1
2
Brakes
WARNING
The floor surface properties influence the driving
and braking behaviour of your truck.
Therefore take this into account when driving and
braking.
Soft braking (regenerative braking)
NOTE
The truck is braked electrically. The battery is
charged by regenerative braking.
– Release travel control (1) or (2) when
driving.
50
108043405 [EN] 73
