Before driving

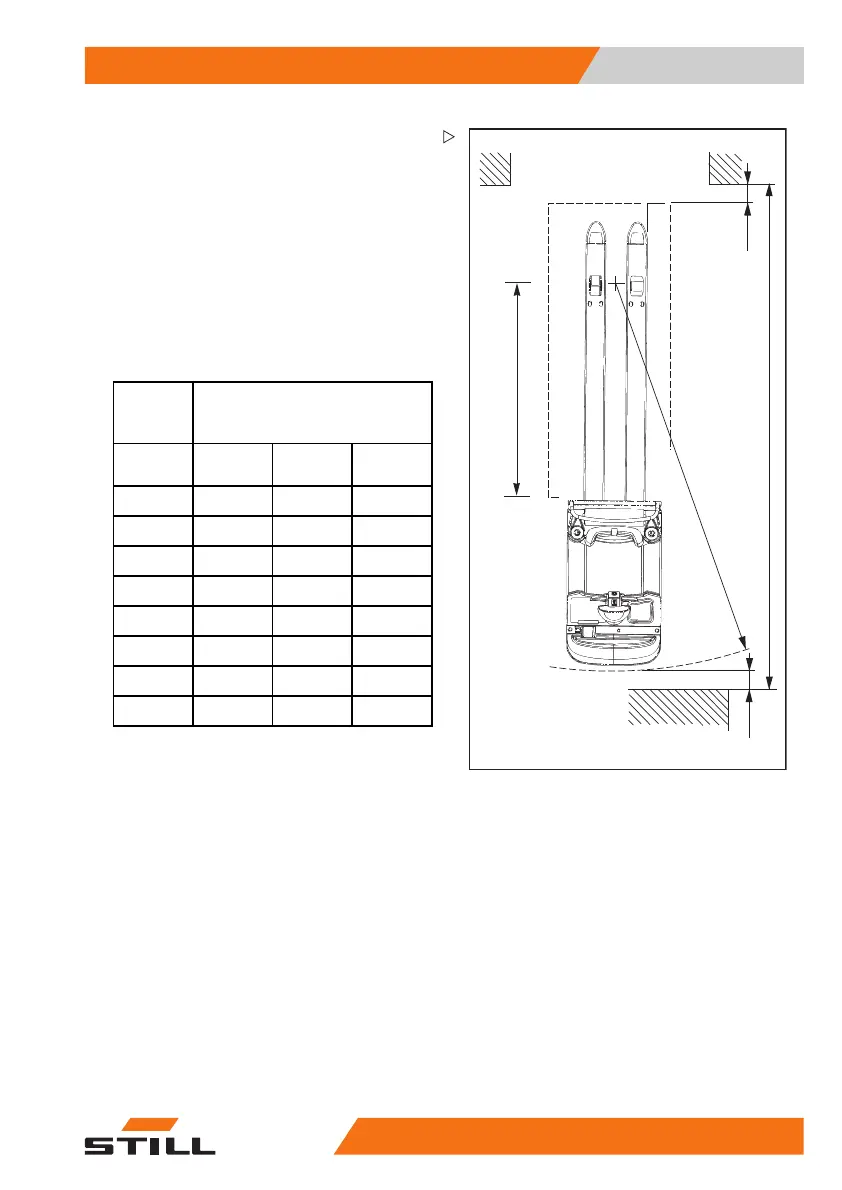

Dimensions of roadways and aisles
The dimensions and aisle widths contained in
section description apply under established
conditions to ensure safe driving. Check,
when necessary, if a wider aisle is required
when the load dimensions differ.
The required aisle widths (
Ast) depend on the
dimensions of the load and m
ay be calculated
following the formula: Ast
= Wa - X + Length of
pallet + 200 mm.
Turning radius (WA) values for
the calculation of aisle widths
(All values in mm)
Fork
lengths
Offset X 450 Ah 600 Ah
1190
1005 2430 2516
1450
1265 2690 2776
1650
1105 2530 2616
2150
1605 3030 3116
2390
1845 3270 3356
2390
1615 3040 3126
2900
2125 3550 3636
3100
2125 3550 3636
Obey the national regulations.
The truck may
only be used on roadways not
having too ti
ght curves, too large gradients
and too narro
w and too low passages.
Condition o
f roadways
Roadways must be solid enough, free of
debris and dropped objects. Drainage ducts,
railway crossings and the like must be level
and, if necessary, provided with ramps so that
they can be crossed without jolts, if possible.
There must be sufficient clearance between
the highest parts of the truck or load and fixed
parts of the surroundings. The height depends
on the height of lift and the dimensions of the
load. Refer to the technical data.
