Stratasys Objet260 - UV Lamp Check 6

Objet260 User Guide 6 Operating and Maintaining the Objet260 3DPrinter
DOC-37004 Rev.E 6-75
ThewizardoperatestheUVlampsandchecksiftheirpoweriswithinthe
acceptablerangeforeachprintingmode.
Note: Themodecurrentlybeingcheckedappearsinthelower-leftcornerof
theprinterinterface.

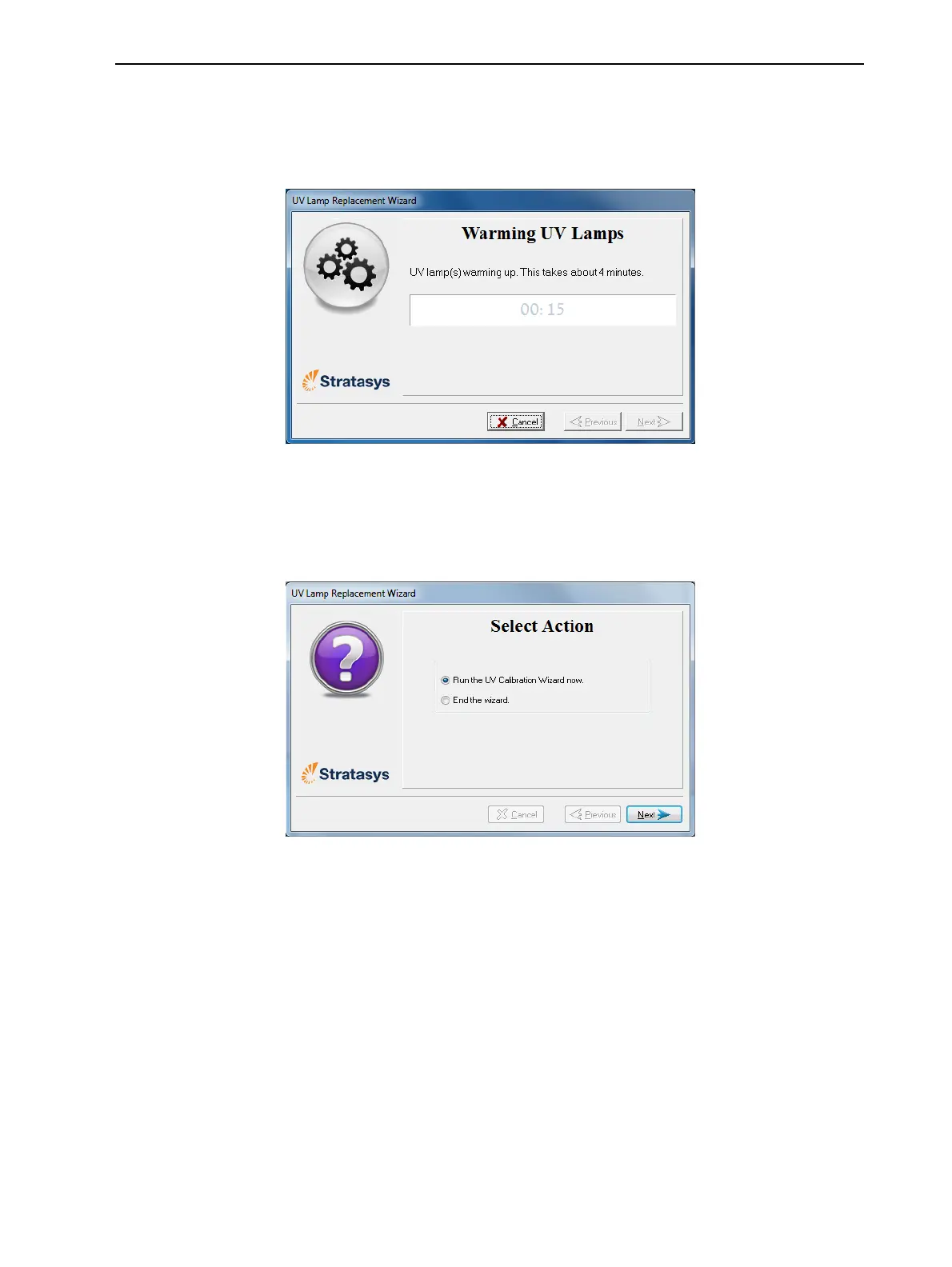

Figure6-116StatusscreenduringUVlampcheck
AfterreplacingaUVlamp,itisrecommendedthatyoucalibrateitspower
forthevariousprintingmodes.Thenextscreenallowsyoutocontinueto
theUVCalibrationwizard(see"TestingandCalibratingtheUVLamps"on
page6-61).
Figure6-117Wizardcontinuationscreen
