Objet260 User Guide 5 Using Objet Studio
DOC-37004 Rev.E 5-49

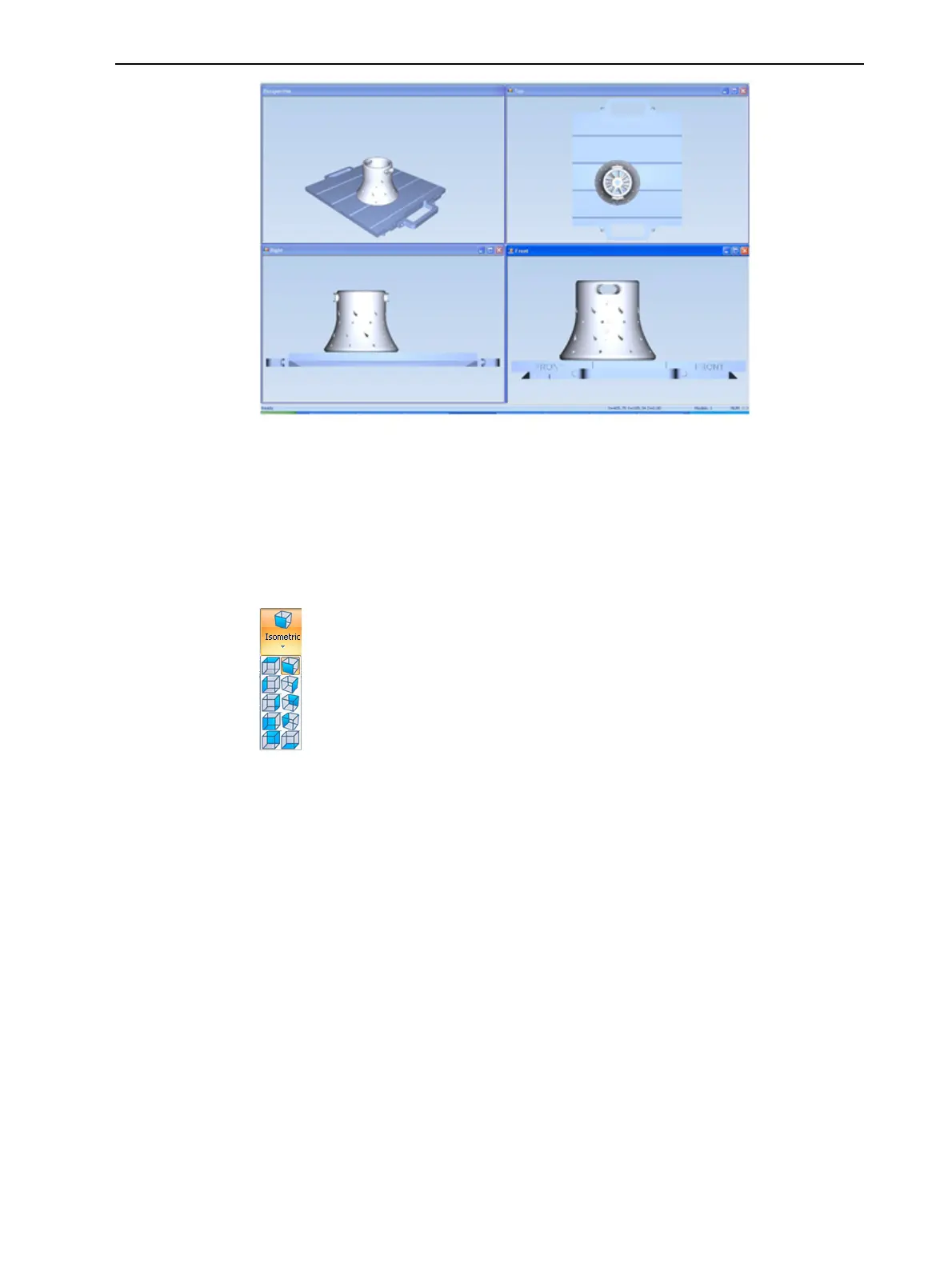

Figure5-594-viewscreenlayout
Tray
Perspective
Thedefaultperspectiveofthebuildtrayis“isometric.”Youcanchangethe
perspectiveoftheactivewindowwithoneoftenoptions.
Tochangetheperspectiveofthebuildtrayintheactivewindow:
1. OntheTray Settingsribbon,openthePerspectiveflyouttoolbar.
Figure5-60Perspective toolbar
2. Clicktheiconthatrepresentsthedesiredperspective.
