Stratasys Objet260 - DisplayOptions; Screen Layout

Objet260 User Guide 5 Using Objet Studio
DOC-37004 Rev.E 5-48
Todisplayobjectswithoutthebuildtray:
➢ FromtheViewmenu,clear(de-select)theDisplay Trayoption.
Screen Layout
ObjetStudioautomaticallyadjuststhedefaultscreenlayouttodisplaythe
optimumviewsofthebuildtrayandthemodeltree.Youcanviewmodels
fromdifferentperspectivesbychangingthescreenlayout.
Tochangethescreenlayout:
➢ OntheViewflyouttoolbar,selectSingleView,or4Views.

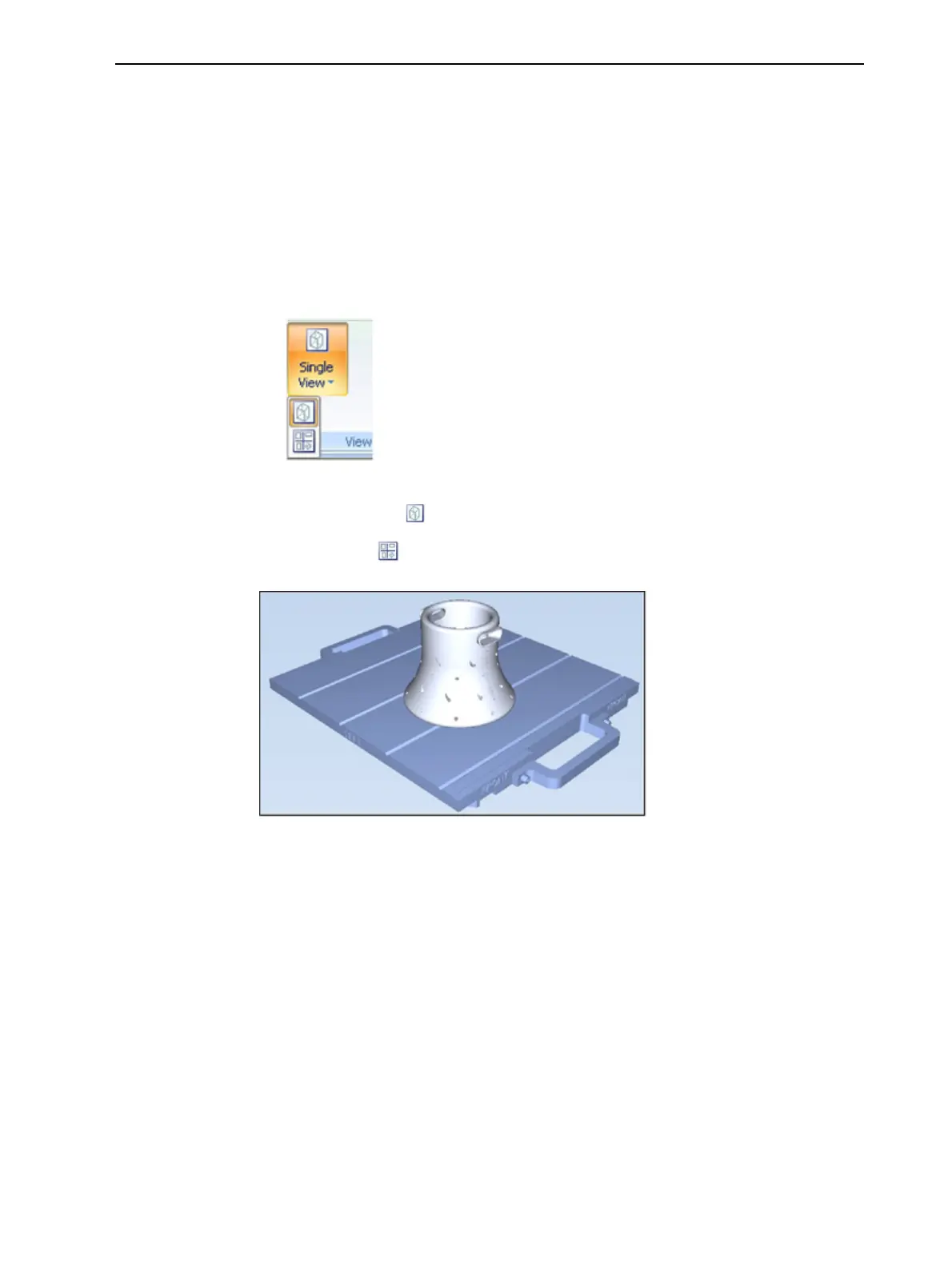

Figure5-57Screenlayouticons
❒ SingleView isthedefaultscreenlayout.
❒ 4Views displaysperspective,top,frontandrightviews.
Figure5-58Single-viewscreenlayout
