Stratasys Objet260 - Handling Trays

Objet260 User Guide 5 Using Objet Studio
DOC-37004 Rev.E 5-55
Handling Trays
Afterpreparingmodelsonthebuildtray,youcandothefollowing:
•Testthatitcanbeprinted("validation").
•Calculatethetimeandmaterialresourcesneededtoprintit.
•Sendittotheprinterforproduction.
•Saveitforlatercompletionorprinting.
•Saveitasacompressedfileforconvenientstorageandtransfer.

Tray Validation
Beforesendingajobtotheprinterforproduction,youshouldcheckthatthe
trayis“valid”andcanbeprinted.
Note: Becauseoftheuniquecharacteristicsofeachtypeofmodelingmaterial,
makesurethatthecorrectmaterialisselectedbeforeperformingTrayValidation.
Tovalidatethatthetraycanbeprinted:
➢ OntheTray Settingsribbon,intheBuild Processgroup,click .
or—
FromtheToolsmenu,selectPlacementValidation.
Ifthetrayisnotvalid,thecoloroftheproblematicmodelsonthetray
changesaccordingtoapre-setcode.

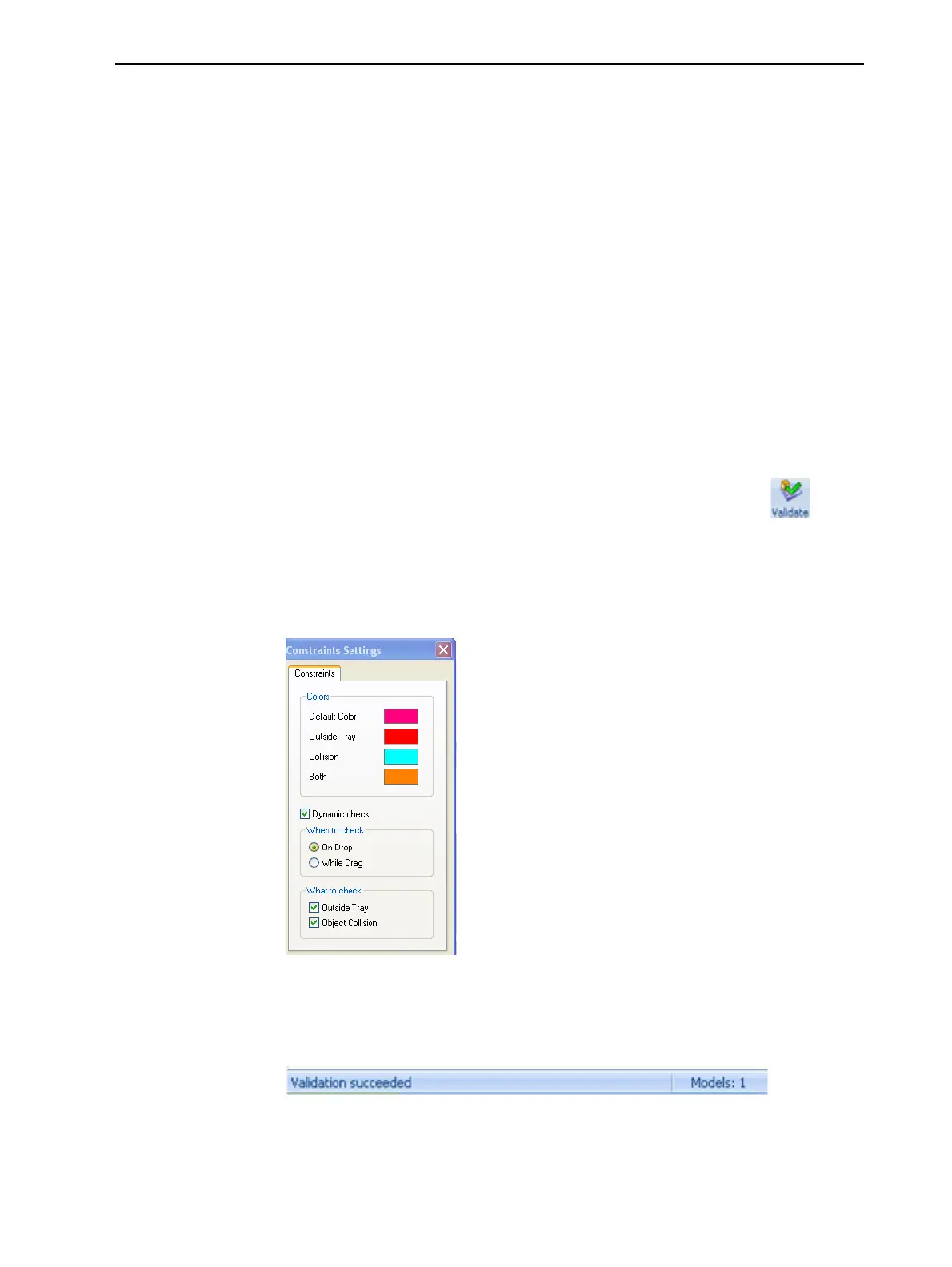

Figure5-69Colorcode
Note: The“Both”coloralsoindicatesaproblematicstlfile.
Thevalidationstatusappearsonthebaratthebottomofthescreen.
Figure5-70Validationdetailsinstatusbar
