Stratasys Objet260 - Pattern Test

Objet260 User Guide 6 Operating and Maintaining the Objet260 3DPrinter
DOC-37004 Rev.E 6-31
11.Removealltoolsandcleaningmaterialsfromtheprinter,andclosethe
cover.
12.Confirmthisinthewizardscreen,andclickNext.

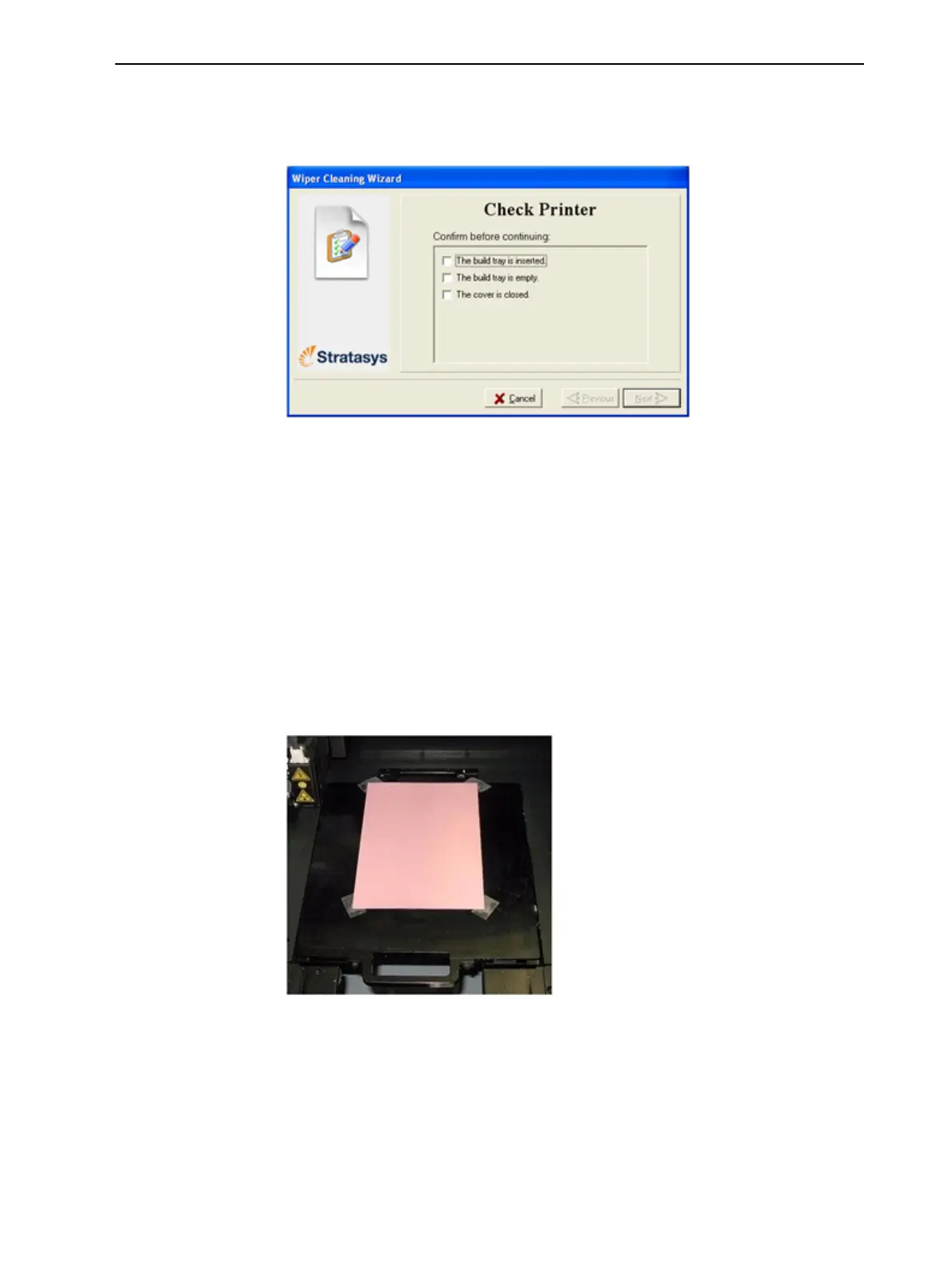

Figure6-32Confirmationscreen
13.ClickDonetoclosethewizard.
Pattern Test
Thepatterntestisthebasicverificationoftheprinter’sabilitytoproduce
qualitymodels,sinceitdemonstratestheconditionofthenozzlesintheprint
heads.Makesure,therefore,thatyouperformthistestweekly,andwhenever
yoususpectaprintingproblem.
Toperformthepatterntest:
1. Makesurethatthebuildtrayisempty.
2. Prepareasheetofpinkpaper—A-4orLettersize.
3. Intheprinter,tapethepinkpapertothecenterofthebuildtray.
Figure6-33Paperpositionedforpatterntest
