Todisplayobjectsasboxes,showingtheirmaximumdimensionsinsteadoftheir
shape:
➢ FromtheViewmenu,selectDisplayBoundingBox.

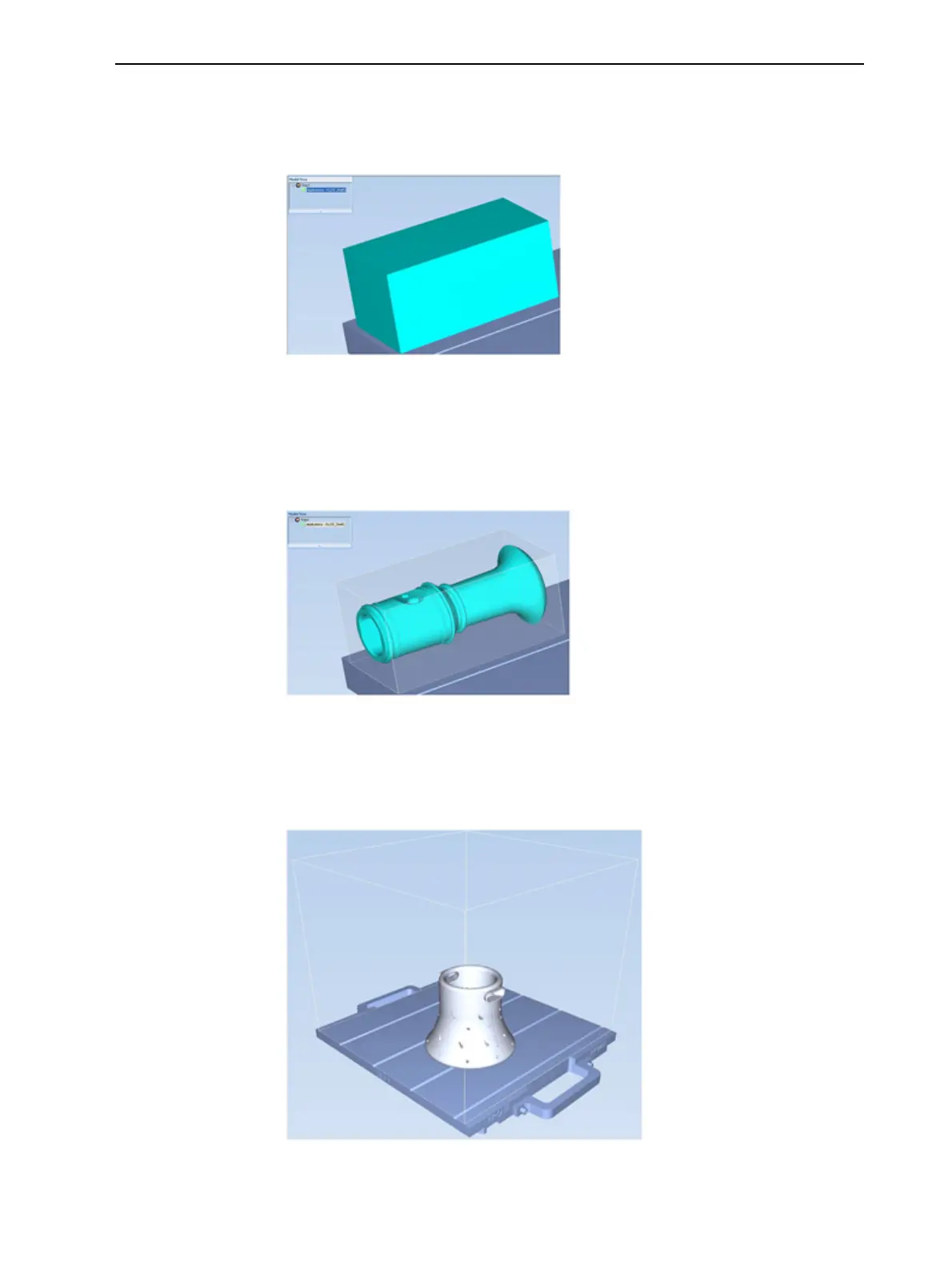

Figure5-54Modeldisplayedwithboundingbox
Todisplaytheareaaroundobjectsneededforsupportmaterial(toproducea
mattefinish):
➢ FromtheViewmenu,selectDisplayThickeningBox.
Figure5-55Modeldisplayedwiththickeningbox
Todisplaythemaximumbuildheight:
➢ FromtheViewmenu,selectDisplayTray3DBox.
Figure5-56Tray3DBox
