Stryker LUCAS 3 Service Manual

LUCAS
®
3 Chest Compression System – Service Manual
3328798-002, ©2017 Physio-Control, Inc.
Page 76 of 91
- Mandrel, LUCAS Hinge Insertion (Optional Tool) -
• Remove the Support Leg.
2. Reassembling
• With LUCAS still on the side, place the new support leg fully extended out from LUCAS.

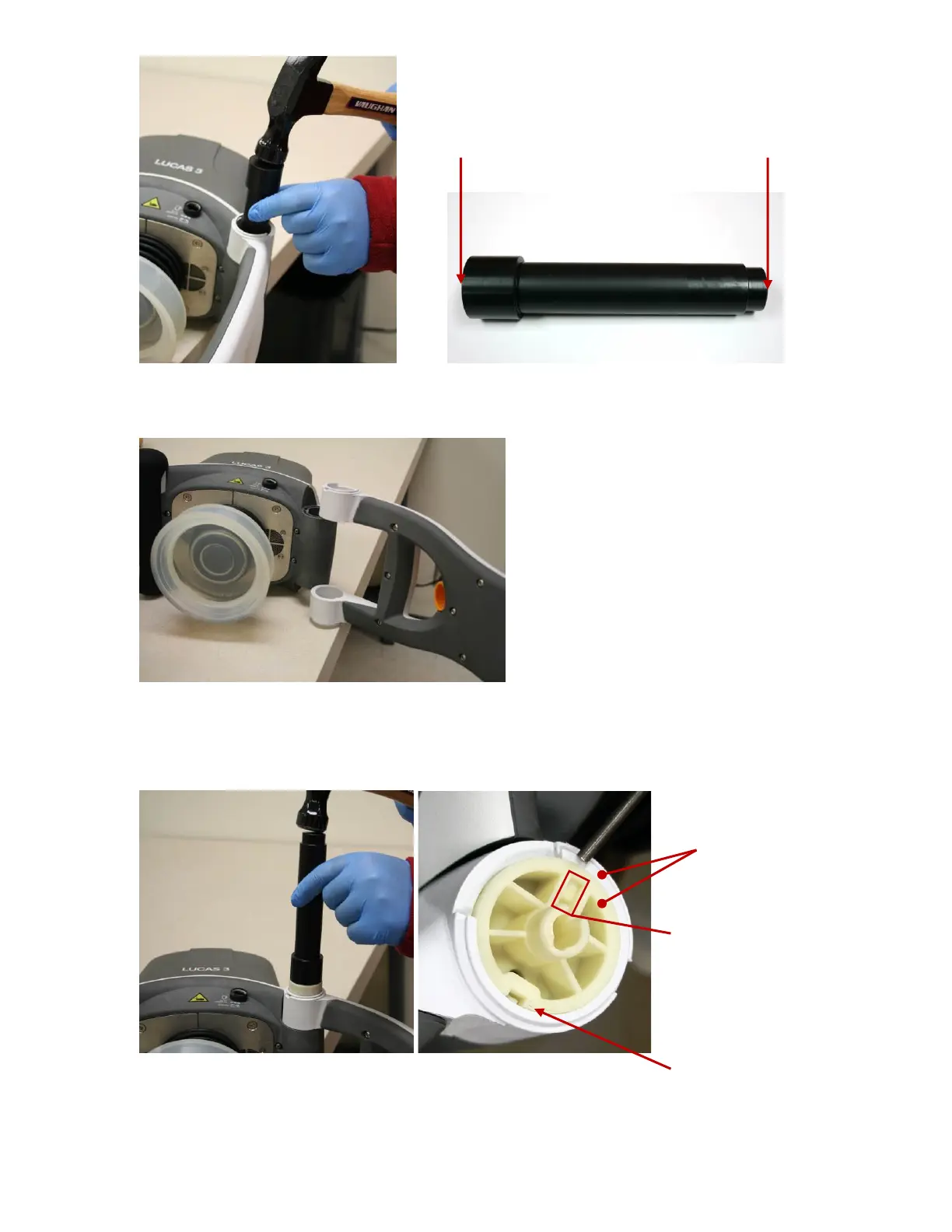

• Insert the Angle Shafts; start with the one that is press fitted into the Main Body, oriented as picture
below. Knock it down so that it is completely flush into the Support Leg.
On the same level
Angle Shaft Tool
Use this end to remove
Use this end to install
During this
reassembling step, the
keyways for the Spring
should always be
pointing towards the
Compression Module on
both shafts.
Note: Notch of the Angle
Shaft pointing toward
the claws.

Stryker LUCAS 3 Specifications

General

Device Type	Chest Compression System
Power Source	Rechargeable Lithium-ion Battery
Compression Depth	5.3 ± 0.2 cm (2.1 ± 0.1 in)
Battery Life	45 minutes of operation
Battery Charge Time	Approximately 4 hours
Operating Modes	Pause
Patient Size	Fits most adult patients
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	–20 to +60 °C (–4 to 140 °F)
IP Rating	IP43
Compression Rate	100 compressions per minute
