LUCAS
®
3 Chest Compression System – Service Manual
3328798-002, ©2017 Physio-Control, Inc.
Page 77 of 91

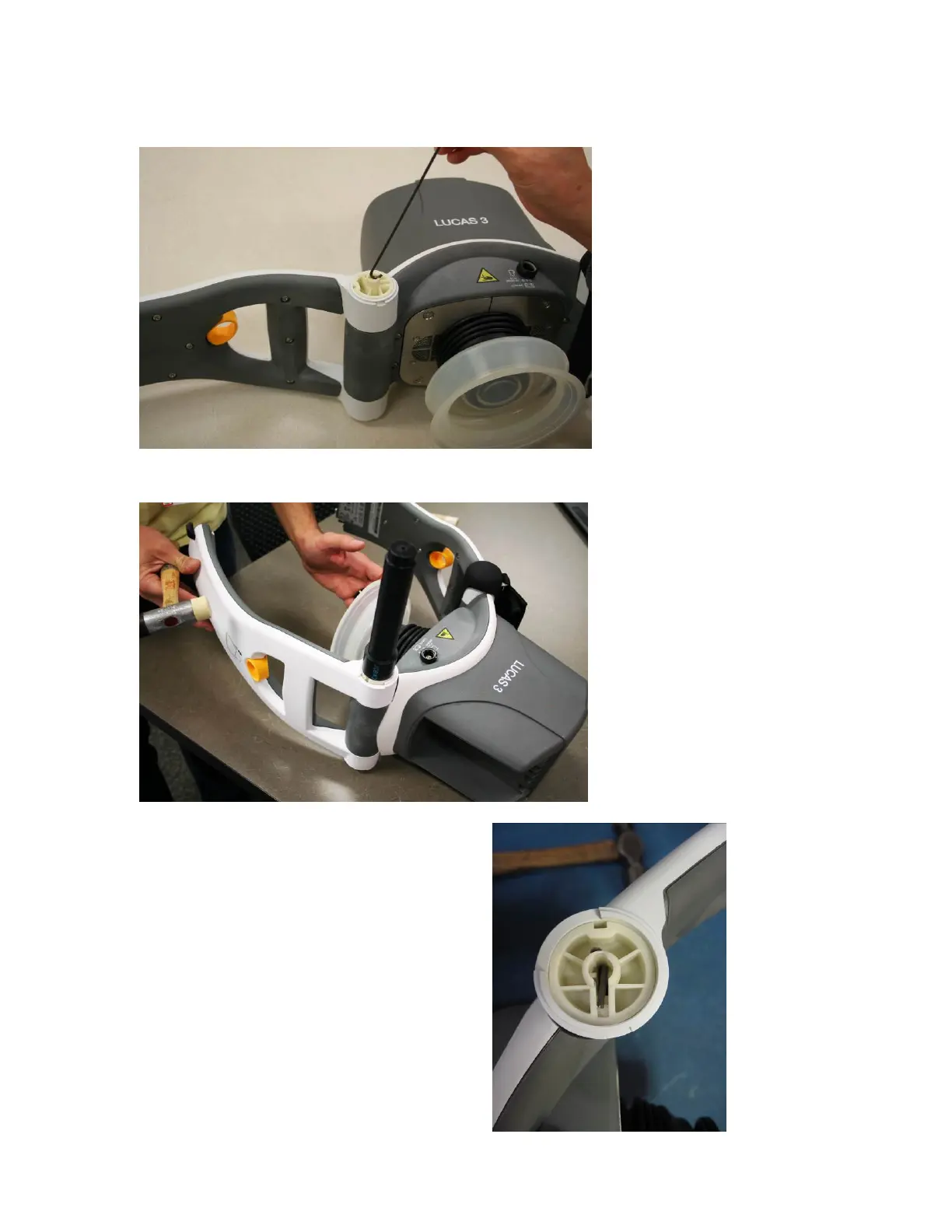

• Turn LUCAS over on the other side and insert the non-press fitted Angle Shaft by hand force until it stops.
Ensure that the keyways for the spring are aligned with each other.
• Insert the Spring with the rounded end first, all the way down through both Angle Shafts. Use a Mandrel
to fully seat the spring into the Angle Shaft.
• Turn the leg inwards to its correct position.
• Ensure the L shaped end of the spring is
properly seated inside the Angle Shaft.
