off the audio source for the specific audio input. The MMuuttee button toggles on and off and
stays highlighted in orange when muted.
Up to four audio input buttons can be displayed on the Input Levels tab. If more than four
audio inputs have been configured, a scroll bar will appear on the right side of the screen.
The current page number and the number of pages will appear between the up and down
scroll buttons.

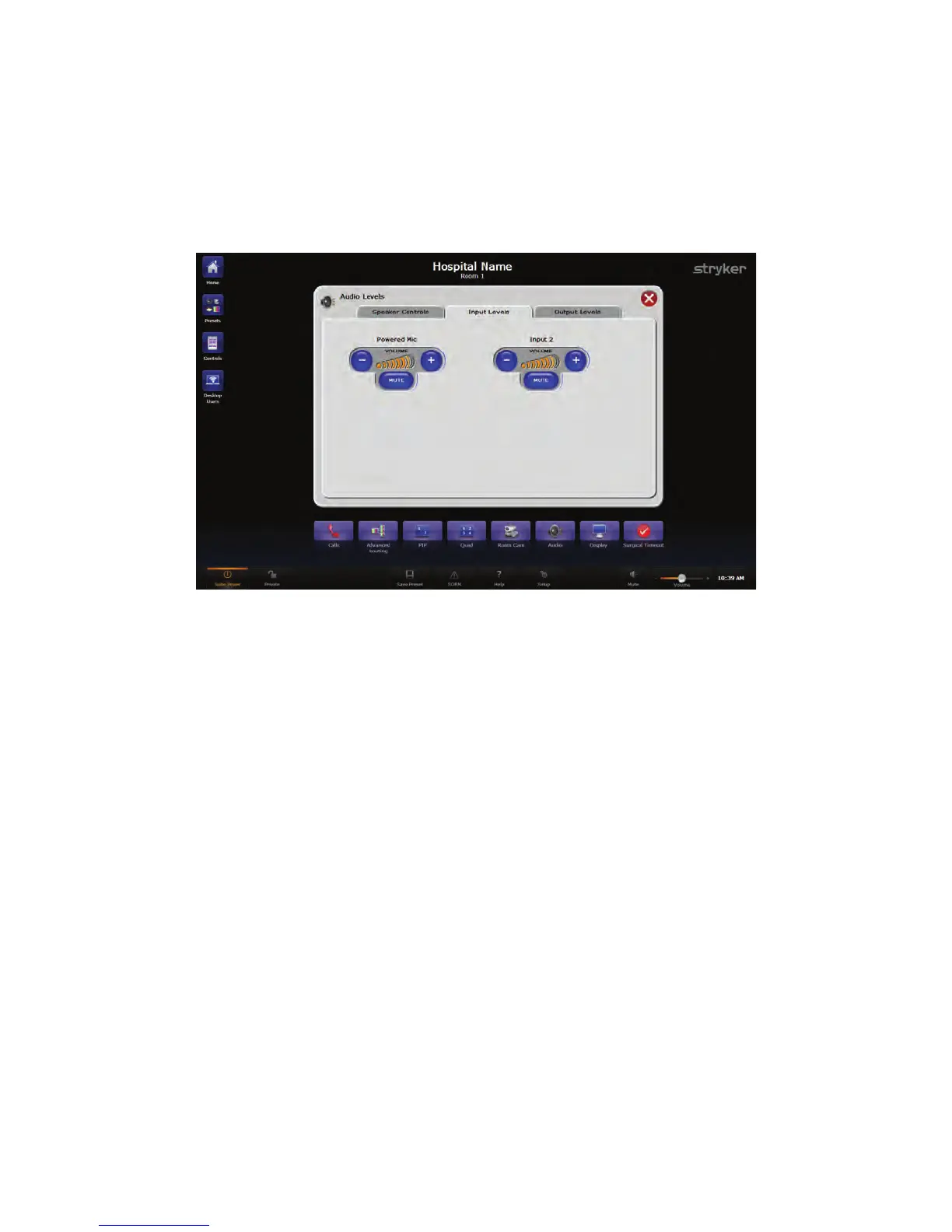

FFiigguurree 3399.. IInnppuutt LLeevveellss SSccrreeeenn
14.3 Output Levels
The Output Levels screen provides the ability to change the audio output levels. The
SwitchPoint Infinity 3 Control System router supports up to 10 audio outputs and the
SPI3-Lite router supports up to four outputs, including two outputs for the speakers. To
access the Output Levels screen, press the AAuuddiioo LLeevveellss button on the Quick Button
Bar and press the Output Levels sub tab.
Each audio output level has a volume level indicator bar to show its current settings. To
adjust the volume, press the “--” or “++” buttons to decrease or increase the audio output
volume, respectively. The MMuuttee button in the center of each level indicator bar will turn
off the audio source for the specific audio output. The MMuuttee button toggles on and off and
stays highlighted in orange when muted.
Up to four audio output buttons can be displayed on the Output Levels tab. If more than
four audio outputs have been configured, a scroll bar will appear on the right side of the
screen. The current page number and the number of pages will appear between the up
and down scroll buttons.
