S Class 2 cutter Service manual
Replacements guidelines 2-30

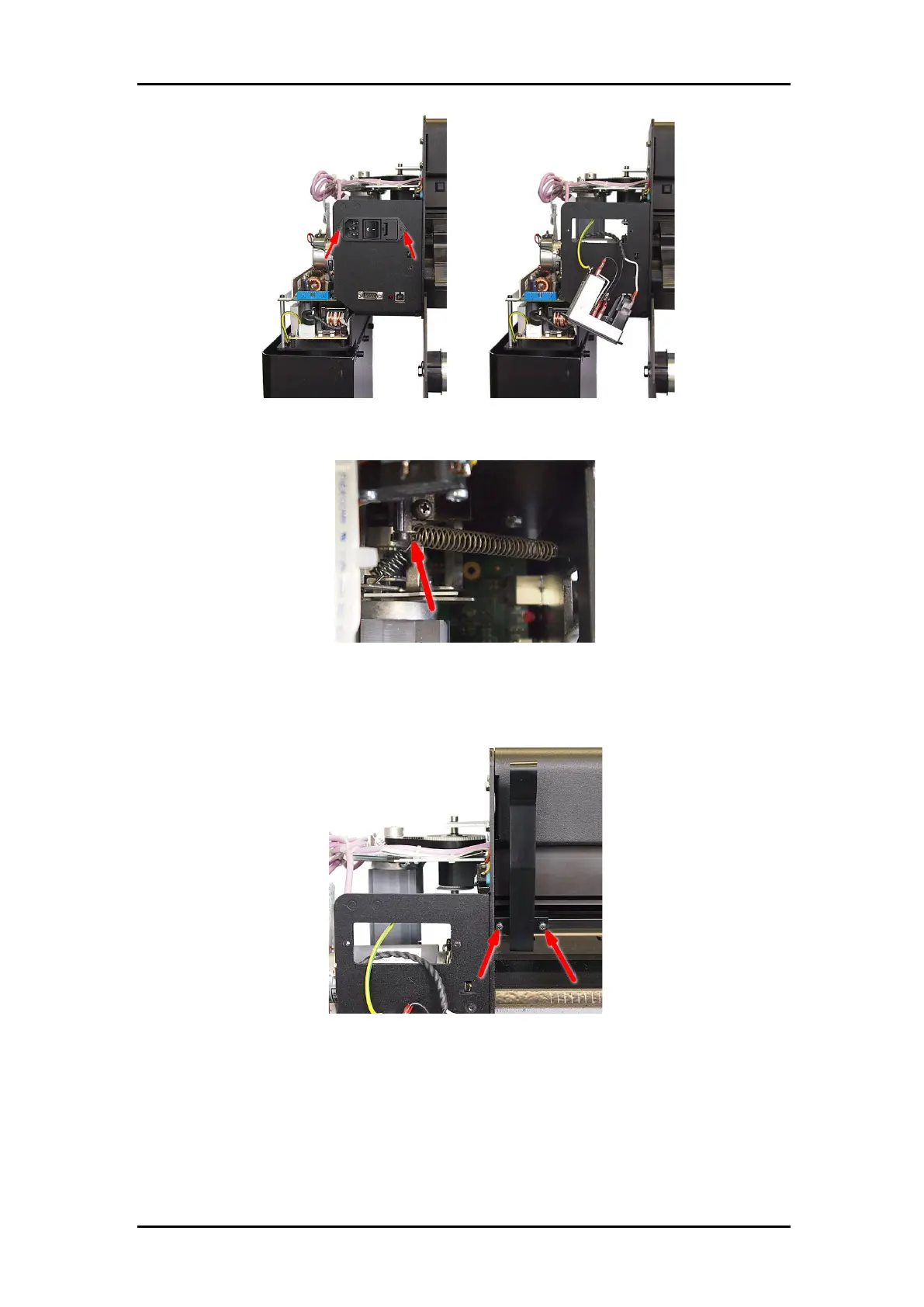

Remove spring from the switch actuator at the end of the pinch roller bar.
Lower the pinch rollers.
Remove the screws from the cam handle.
Raise the pinch rollers.
Slide the pinch roller blocks over the wide sleeve of the drive drum.
Slide the pinch roller bar 3 cm (1 inch) to the left.
