S Class 2 cutter Service manual
Replacements guidelines 2-31

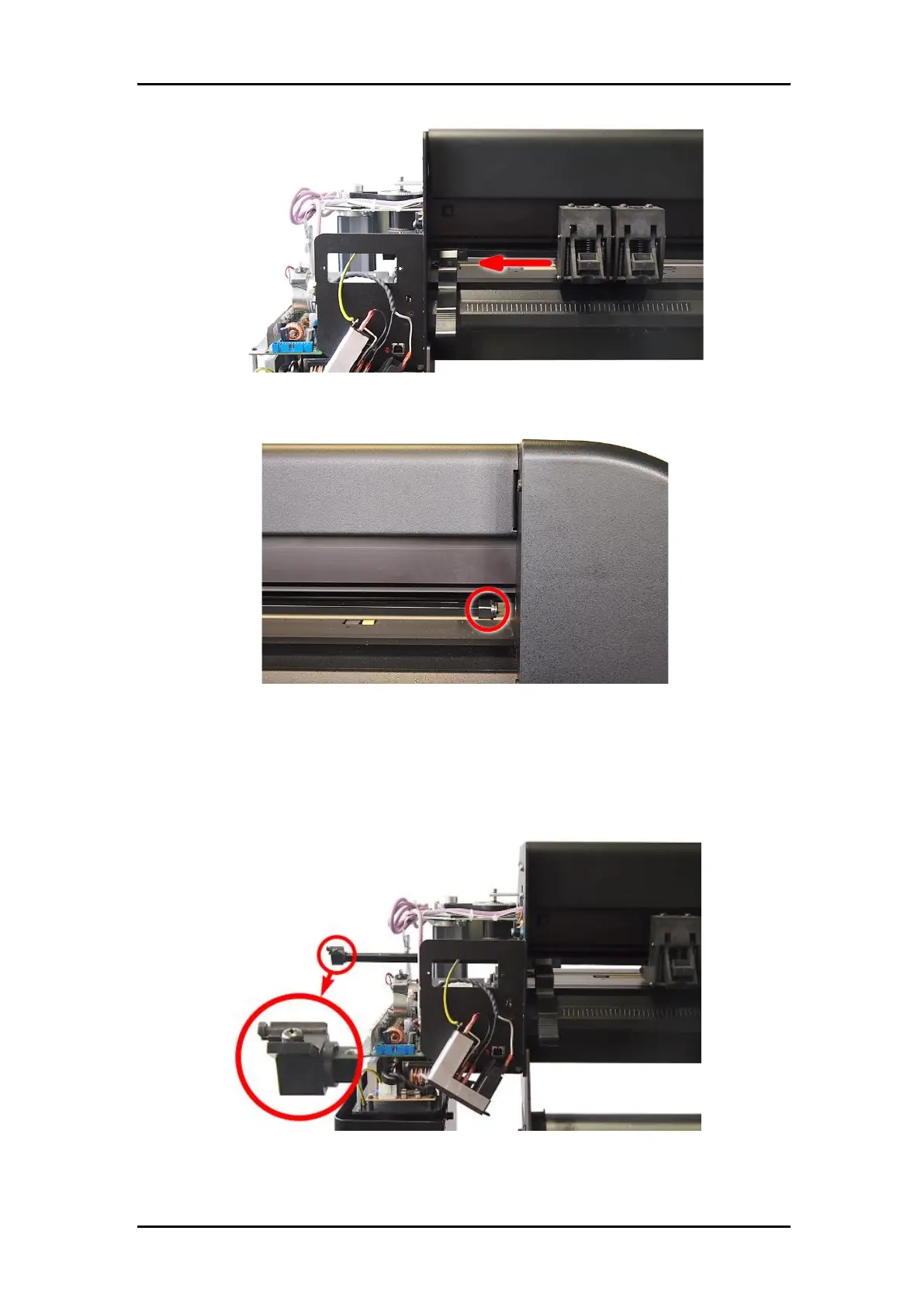

Remove the end piece from the pinch roller bar.
Slide the pinch roller bar out of the machine to remove the old cam handle.
Re-insert the pinch roller bar, while sliding the pinch roller bar in the new cam handle.
Watch the position of the notch at the end of the pinch roller bar: the screw to fix the
switch actuator should point upwards.
Slide the pinch roller bar in the pinch roller blocks.
