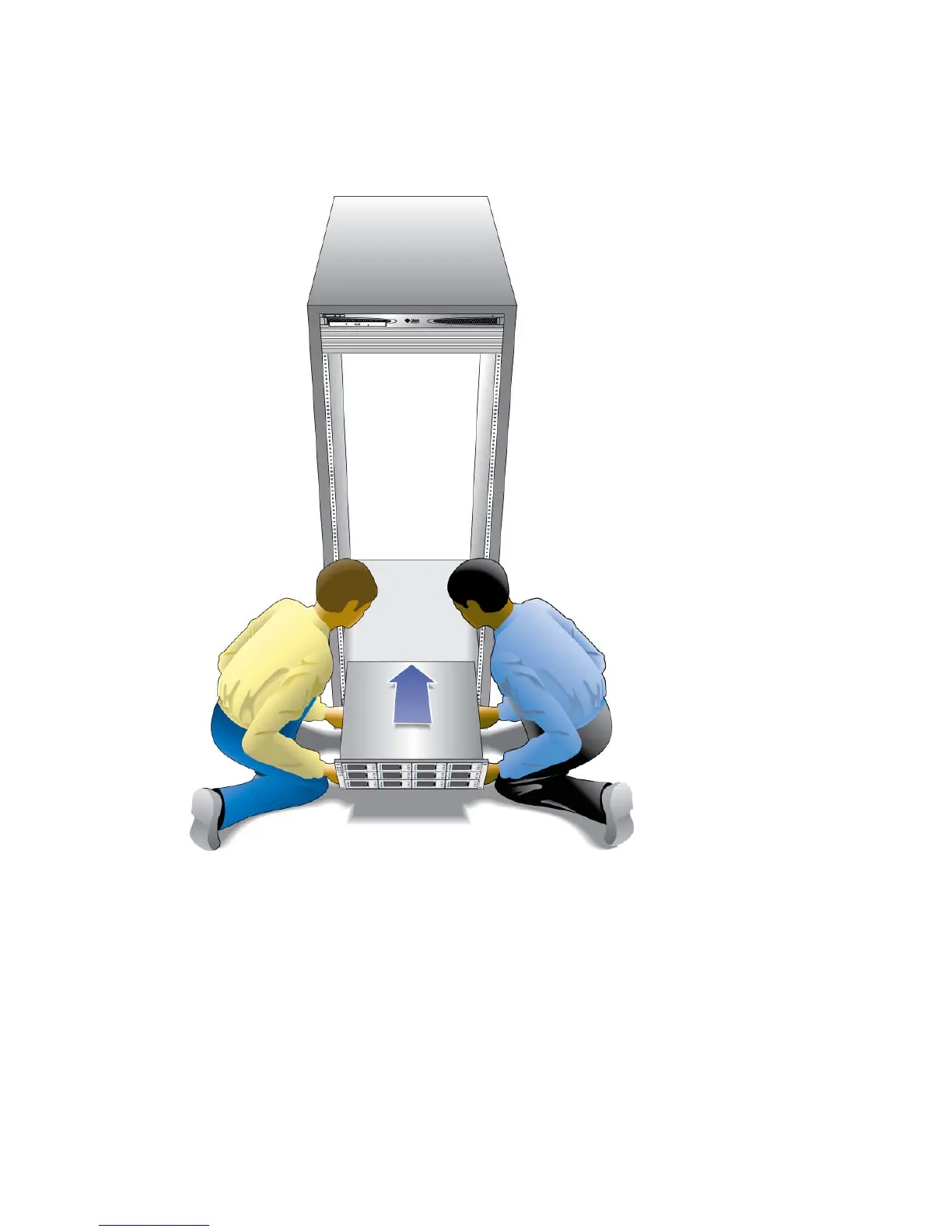

FIGURE 2-12 Positioning the Controller Tray in the Cabinet
2. Carefully slide the tray into the cabinet until the front mounting flanges on the
tray touch the vertical face of the cabinet (
FIGURE 2-13).
