Chapter 6 Connecting Data Hosts to the 2540 Array 71

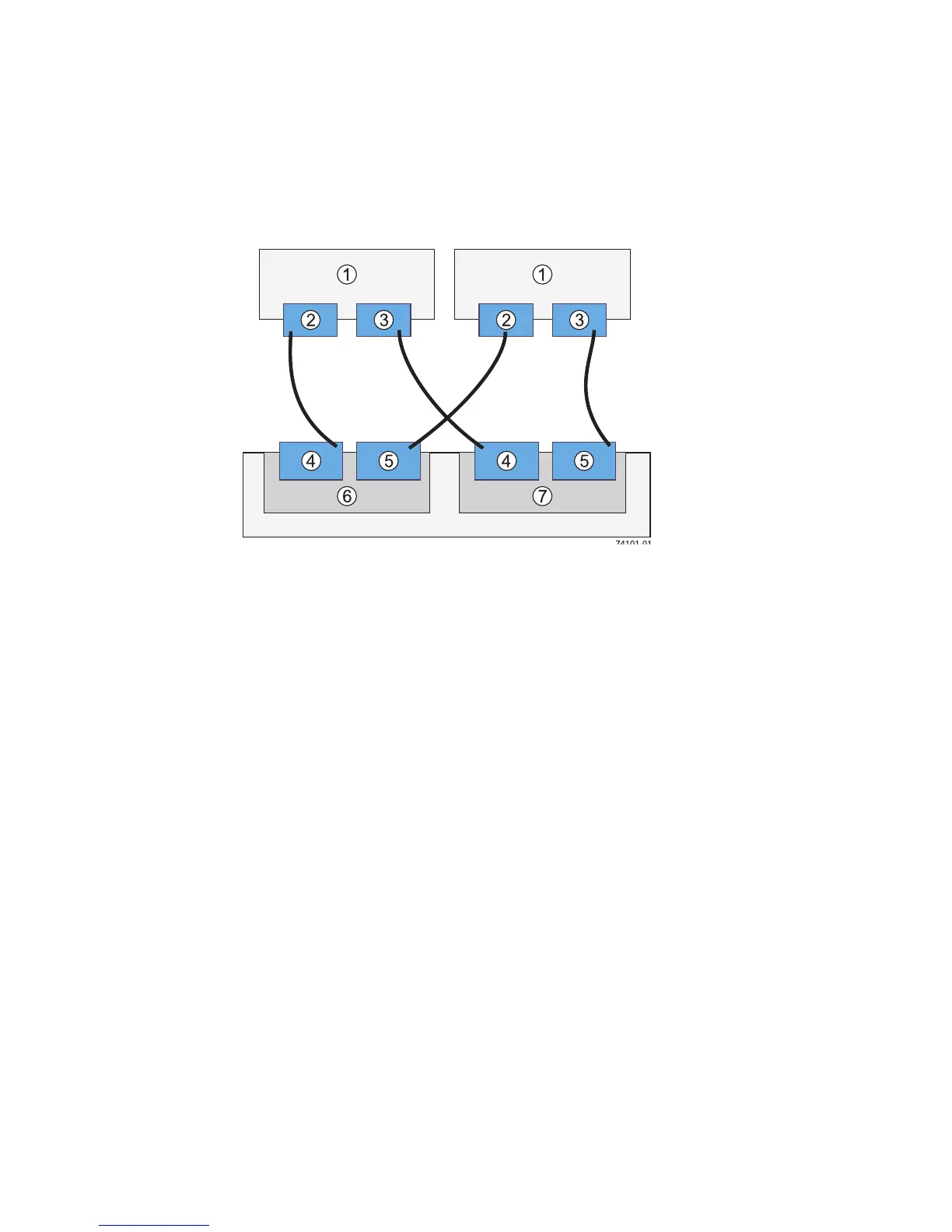

FIGURE 6-2 Direct Connection from Two Data Host Servers

FIGURE 6-3 Data Host Connection Through a Fibre Channel Switch

1. Host

2. HBA 1

3. HBA 2

4. Host Port 1

5. Host Port 2

6. Controller A

7. Controller B
