Appendix C Assembly, Installation and Initial Start Up Procedures C-5
C.1.4 Tools Required
1. Phillips Screwdriver, #2.
2. Antistatic wrist strap.
3. Socket driver for 5mm. hex head screws.
C.2 Typical Assembly
▼ Procedure
1. Install power supply (if not already installed, normally supplied with enclosure).
2. Install additional fan below power supply (Optional fan).
3. Install the rear IO panel.

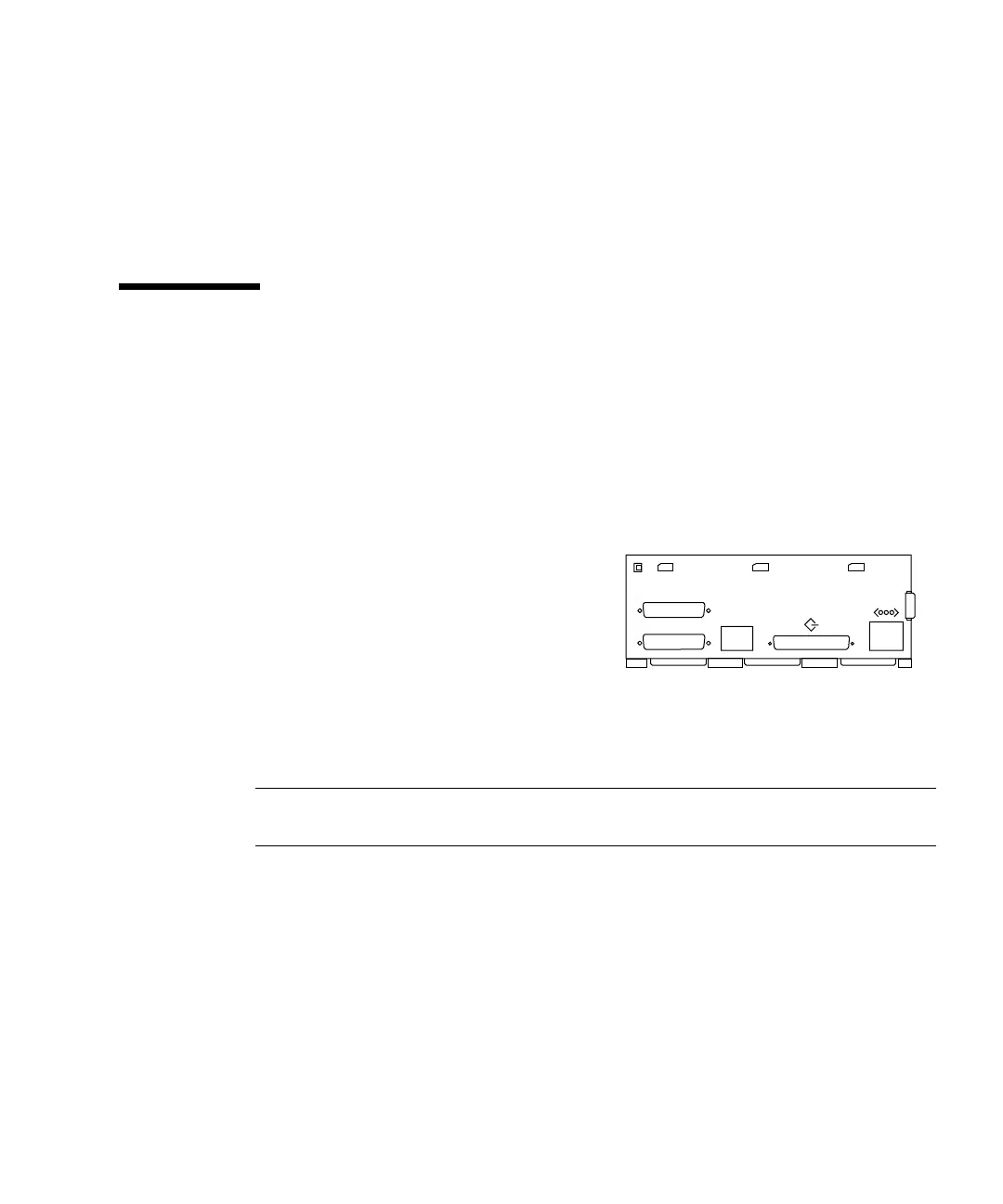

FIGURE C-1 Ultra AXi IO Panel
4. Install the chassis standoffs (i.e., motherboard supports).
Note – Depending on access and clearances, it may be preferable to install some
peripherals and cables before the motherboard is installed.
KEYBD
SERIAL
PARALLEL
