Appendix C Assembly, Installation and Initial Start Up Procedures C-25
18. Install ATI Video Card
Note – Be sure to follow instructions from PCI card vendor.
a. Carefully remove the new PCI card from
the protective packaging.
b. Ensure the jumper on the card is set to
Interrupt Enable.
c. Hold the card by its edges, align the
contacts on the bottom of the card with
the slots in the socket.
d. Apply pressure evenly along the length
of the PCI card and push it into its
motherboard connector socket. When
doing this action and the motherboard
is inside a case such as an ATX mini-
tower, be sure that the connector bracket
is properly seated on the back panel.
e. Use a hex head machine screw and
attach the connector bracket to the back
panel.

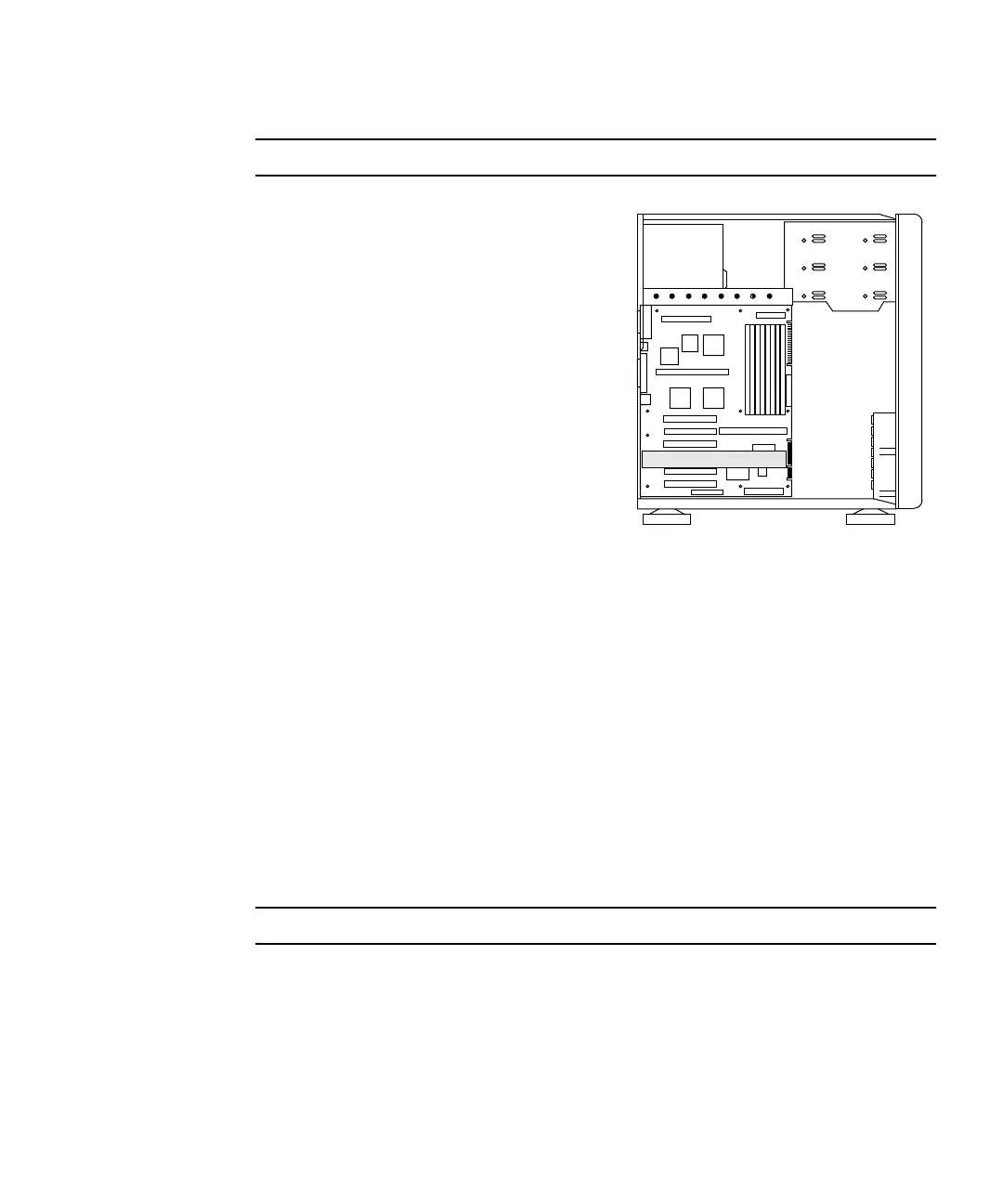

FIGURE C-24 ATI Video Boost PCI Card
19. To Complete Assembly
a. Tie all cables and wires as needed.
b. Apply labels.
c. Install enclosure feet.
d. Install blank plates over unused PCI slots.
e. Install enclosure cover.
20. Make all external connections.
Note – Ensure power supply and monitor power switches are off.
a. Connect monitor signal cable from ATI Video Boost connector to monitor.
b. Connect keyboard cable to keyboard connector as applicable.
c. Connect network cable as applicable.
d. Connect power cables to power supply input and monitor.
ATI Video Card
