A-26 SPARCengine Ultra AX i OEM Technical Manual • May 1999
A.4 Adapters
A.4.1 (PS/2) Keyboard and Mouse J2500 Mouse
Adapter J2501 Keyboard

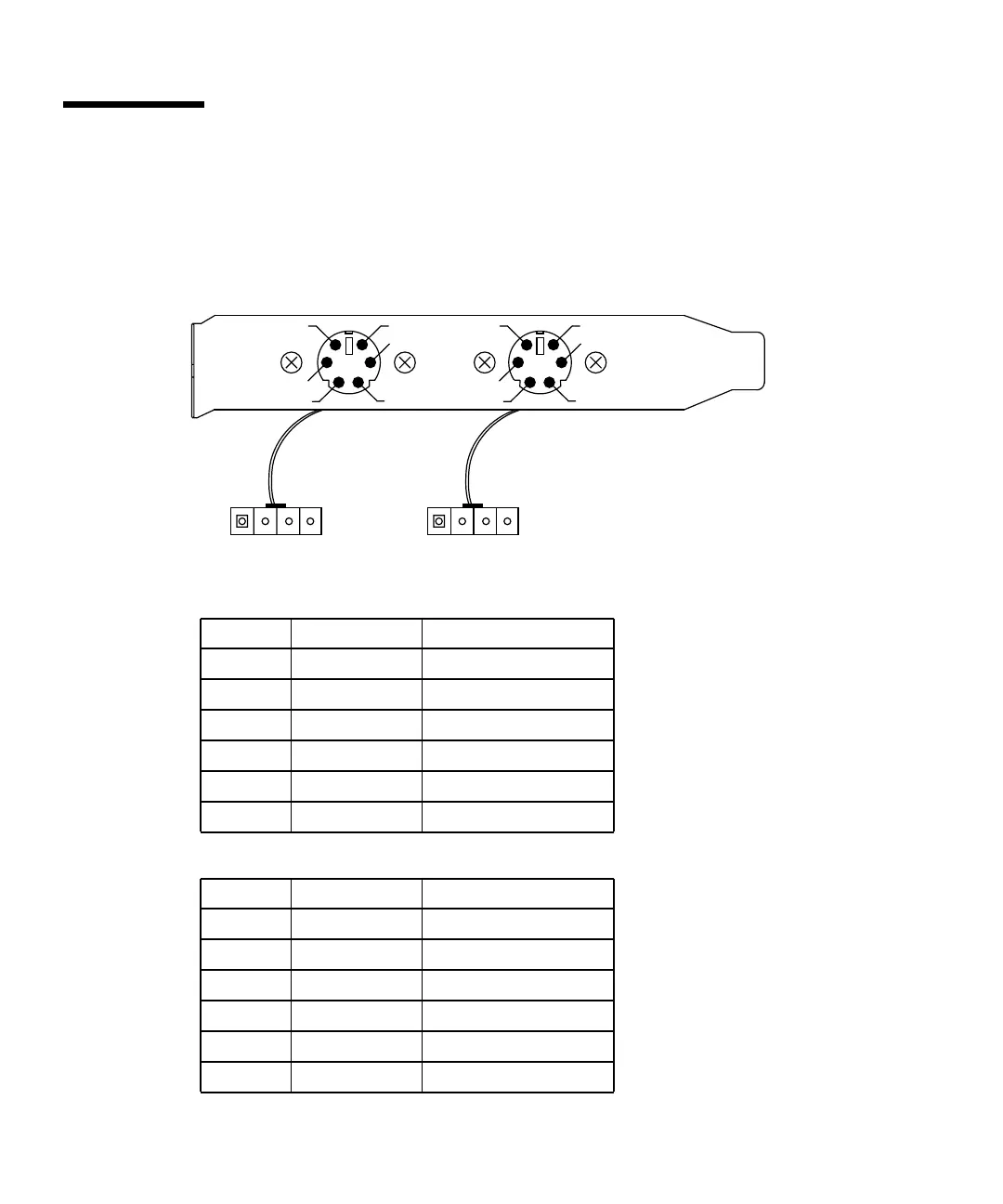

PS/2 Back Panel and Adapter Connectors
TABLE A-25 PS/2 Mouse Connections
Signal DIN Connector Pin Motherboard Connector Pin
Data 1 1
NC 2
Gnd 3 2
Vcc 4 3
Clk 5 4
NC 6
TABLE A-26 PS/2 Keyboard Connections
Signal DIN Connector Pin Motherboard Connector Pin
Data 1 1
NC 2
Gnd 3 2
Vcc 4 3
Clk 5 4
NC 6
PS2
PS2
65
2
4
3
1
65
2
4
3
1
Motherboard
Connectors
Keyboard
Mouse
