Sun Microsystems SPARCengine Ultra AXi User Manual

Appendix A Jumpers, Headers, Connectors, and Adapters A-23

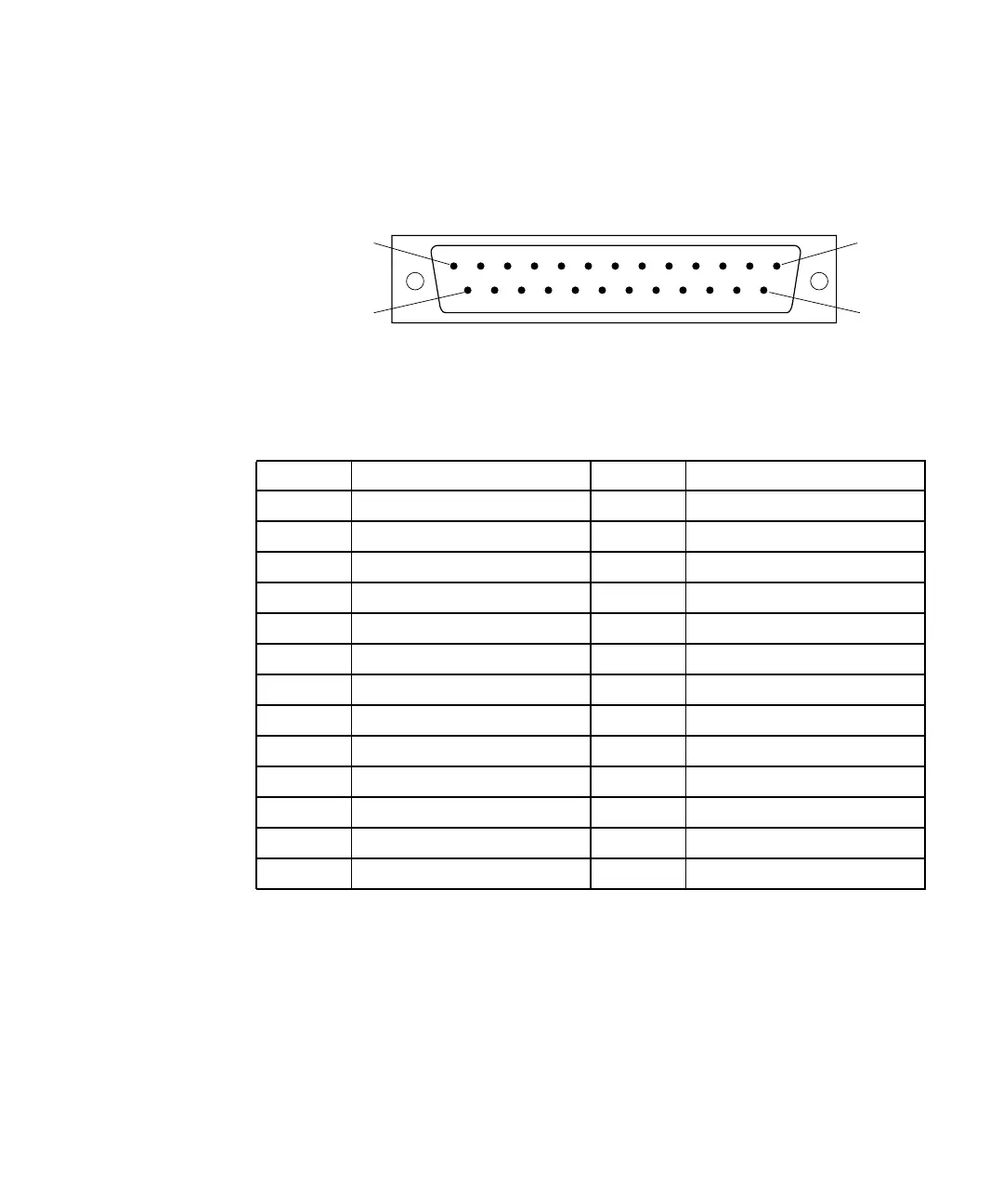

A.3.11 Parallel Port Female Connector J0901
TABLE A-22 Parallel Port Connector Pinouts
Pin # Signal Name Pin # Signal Name
1 Strobe_out_l 14 Auto_feed_out_l
2 Data[0] 15 Errpr_in_l
3 Data[1] 16 Init_out_l
4 Data[2] 17 Select_in_l
5 Data[3] 18 GND
6 Data[4] 19 GND
7 Data[5] 20 GND
8 Data[6] 21 GND
9 Data[7] 22 GND
10 Ack_out_l 23 GND
11 Busy_out_l 24 GND
12 Pe_in 25 GND
13 Select_out
AMP Inc. Part No. 750601-4
1
14
13
25
