Appendix C Assembly, Installation and Initial Start Up Procedures C-11
7. Install the PS/2 keyboard and mouse adapter.
Tip – Due to limited clearance, the adapter cable connectors should be connected to
the motherboard before the adapter is installed in the enclosure
a. Unscrew the retainer screw and remove the cover from the first expansion slot
adjacent to the RJ45 Ethernet connector. This is the preferred location to avoid
blocking PCI Expansion slots.
b. Connect the PS/2 mouse adapter cable to the motherboard header J2500.
c. Connect the PS/2 keyboard adapter cable to the motherboard header J2501.
d. Insert the tab of the PS/2 keyboard and mouse adapter in the expansion slot
and align the top retaining slot with the retainer screw hole.
e. Retain the PS/2 keyboard and mouse adapter with the screw removed in step a.

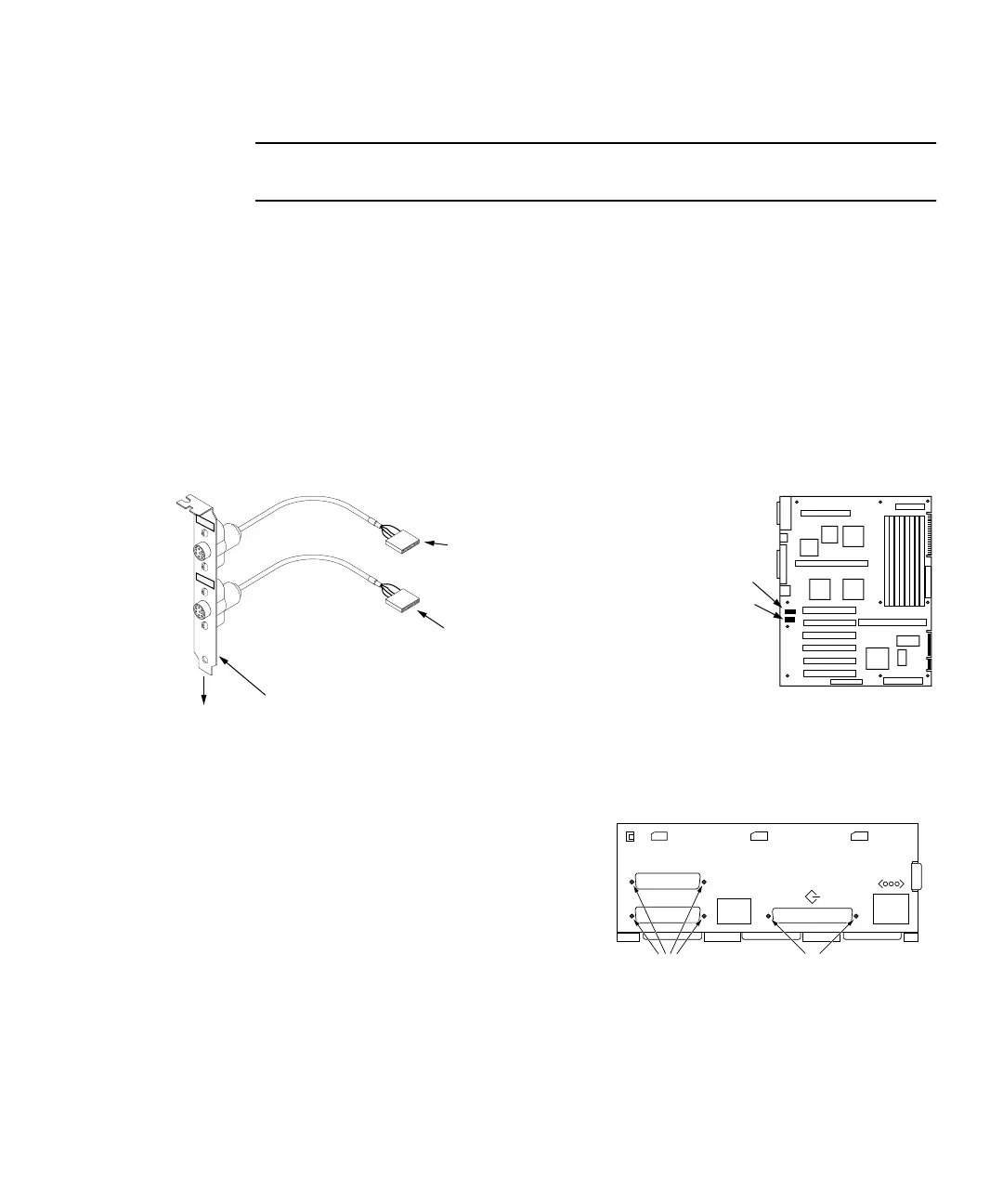

FIGURE C-8 Ultra AXi PS/2 Keyboard and Mouse Adapter
8. Install Serial, Parallel and SCSI
connector fasteners through IO panel.
a. Use four 4-40 x 4-40 female screw
locks to fasten the serial and parallel
connectors to the IO panel.
b. Use two 4-40 x 2-56 female screw
locks to fasten the SCSI connector to
the IO panel.
FIGURE C-9 IO Panel Connector Panel Fasteners
PS/2 Keyboard/Mouse Adapter Bracket
(install in rear panel card slot)
Insert
PS/2
Mouse
Port
PS/2
Keyboard
Port
PS/2 Mouse Adapter Cable
(Connect to J2500)
PS/2 Keyboard Adapter Cable
(Connect to J2501)
J2500
J2501
KEYBD
SERIAL
PARALLEL
4-40 x 4-40
Four Places
4-40 x 2-56
Two Places
To Next Page
