Appendix A Jumpers, Headers, Connectors, and Adapters A-15

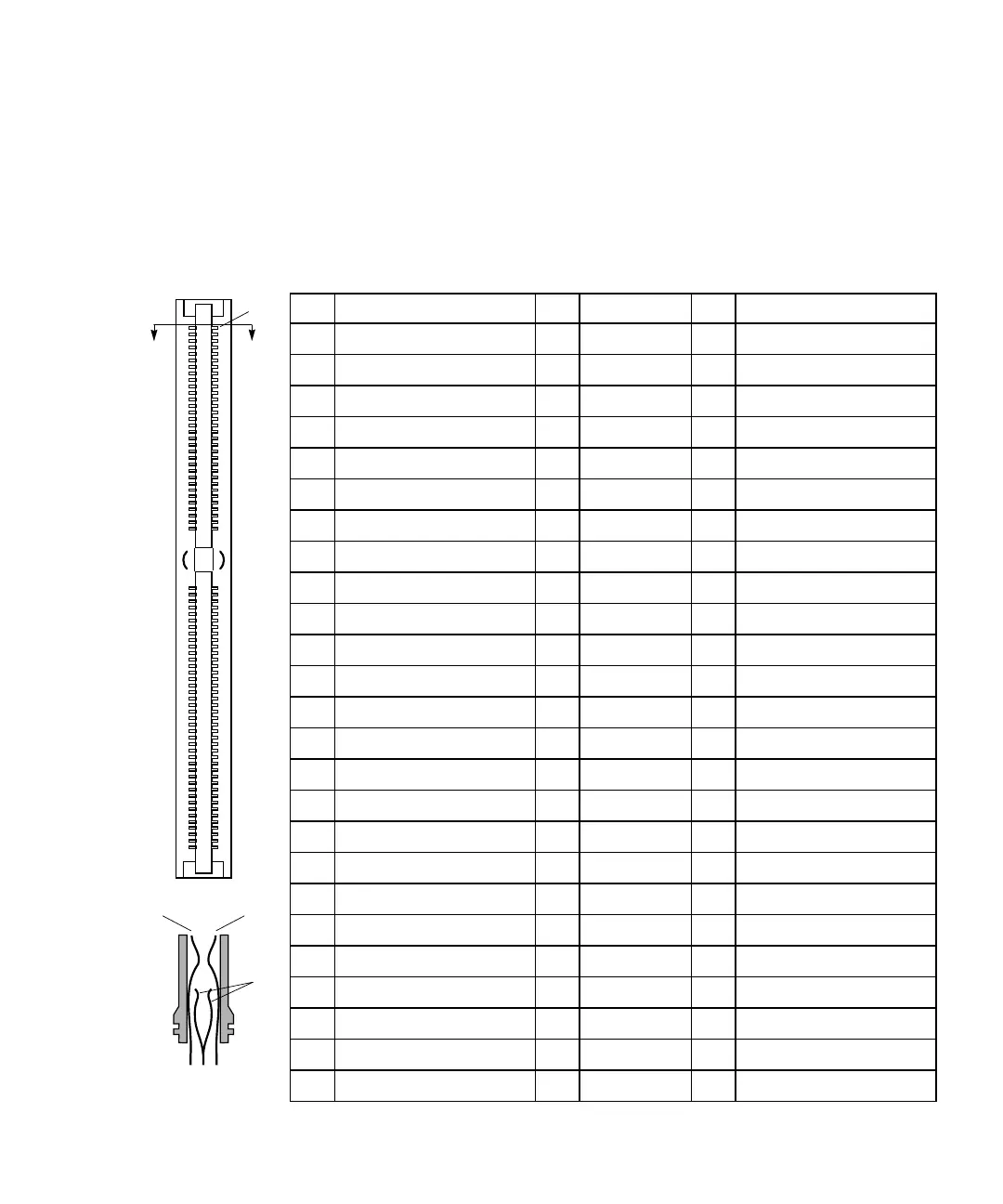

A.3.5 UPA64S (Vertical FFB) Connector J0601
AMP Inc. Part No. 145236-2
This connector uses four contact blades in each cavity. The top pair (furthest from
the board) are separately wired and the bottom pair are connected. See Section AA
below.
TABLE A-16 UPA64S (Vertical FFB) Connector Pinouts
Pin Signal Name Pin Signal Name Pin Signal Name
1
VCC
2
VCC
3
VCC
4
VCC
5
GND
6
VCC
7
SPARE0
8
VCC
9
VCC
10
SPARE2
11
GND
12
SPARE1
13
USB_DATA-
14
VCC
15
USB_DATA+
16
SPARE6
17
GND
18
SPARE7
19
-12V
20
VCC
21
+ 12V
22
UPA_DATABUS<61>
23
GND
24
+ 12V
25
UPA_DATABUS<63>
26
VDD
27
UPA_DATABUS<62>
28
UPA_DATABUS<59>
29
GND
30
UPA_DATABUS<60>
31
UPA_DATABUS<57>
32
VDD
33
UPA_DATABUS<58>
34
UPA_DATABUS<55>
35
GND
36
UPA_DATABUS<56>
37
UPA_DATABUS<53>
38
VDD
39
UPA_DATABUS<54>
40
UPA_DATABUS<51>
41
GND
42
UPA_DATABUS<52>
43
UPA_DATABUS<49>
44
VDD
45
UPA_DATABUS<50>
46
UPA_DATABUS<47>
47
GND
48
UPA_DATABUS<48>
49
UPA_DATABUS<45>
50
VDD
51
UPA_DATABUS<46>
52
UPA_DATABUS<43>
53
GND
54
UPA_DATABUS<44>
55
UPA_DATABUS<41>
56
VDD
57
UPA_DATABUS<42>
58
UPA_DATABUS<39>
59
GND
60
UPA_DATABUS<40>
61
UPA_DATABUS<37>
62
VDD
63
UPA_DATABUS<38>
64
UPA_DATABUS<35>
65
GND
66
UPA_DATABUS<36>
67
UPA_DATABUS<33>
68
VDD
69
UPA_DATABUS<34>
70
UPA_DATABUS<31>
71
GND
72
UPA_DATABUS<32>
73
UPA_DATABUS<29>
74
VDD
75
UPA_DATABUS<30>
1
AA
SECTION AA
1
3
2
To Next Page
