Sun Microsystems SPARCengine Ultra AXi - FIGURE B-4 Height Profile IO Side of Board (no CPU Fan; FIGURE B-5 Height Profile from Module End of Board (no CPU Fan

B-4 SPARCengine Ultra AX i OEM Technical Manual • May 1999
Except as described in the height profiles, no other vertically oriented component
exceeds 19mm, (.750 inch) in height. None of the horizontally oriented components
exceeds 5.6mm, (0.220 inch) in height.

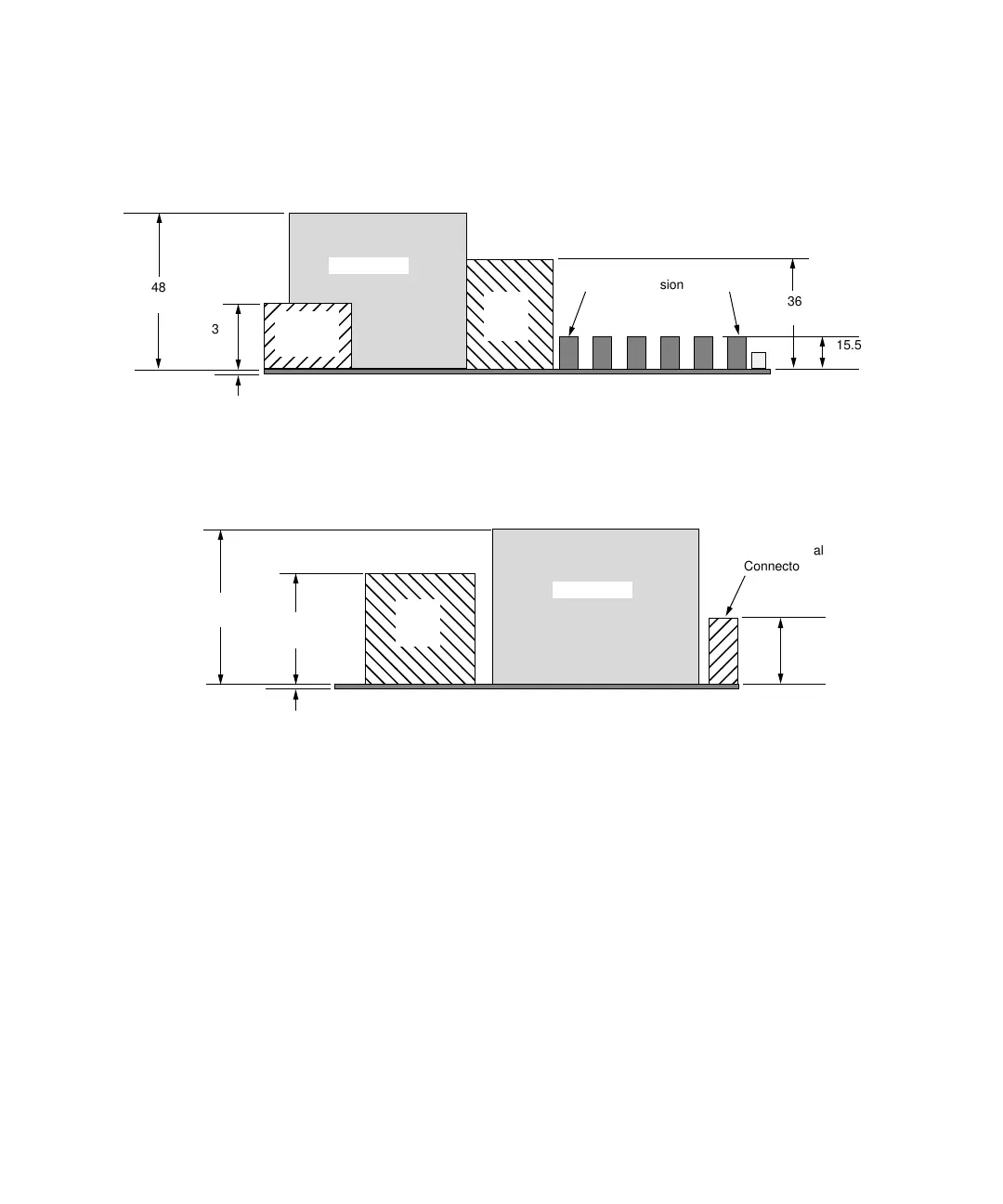

FIGURE B-4 Height Profile IO Side of Board (No CPU Fan)
FIGURE B-5 Height Profile from Module End of Board (No CPU Fan)
,



15.5
36
48
32

