A.3 Connectors
A.3.1 ATX Power Connector J1901

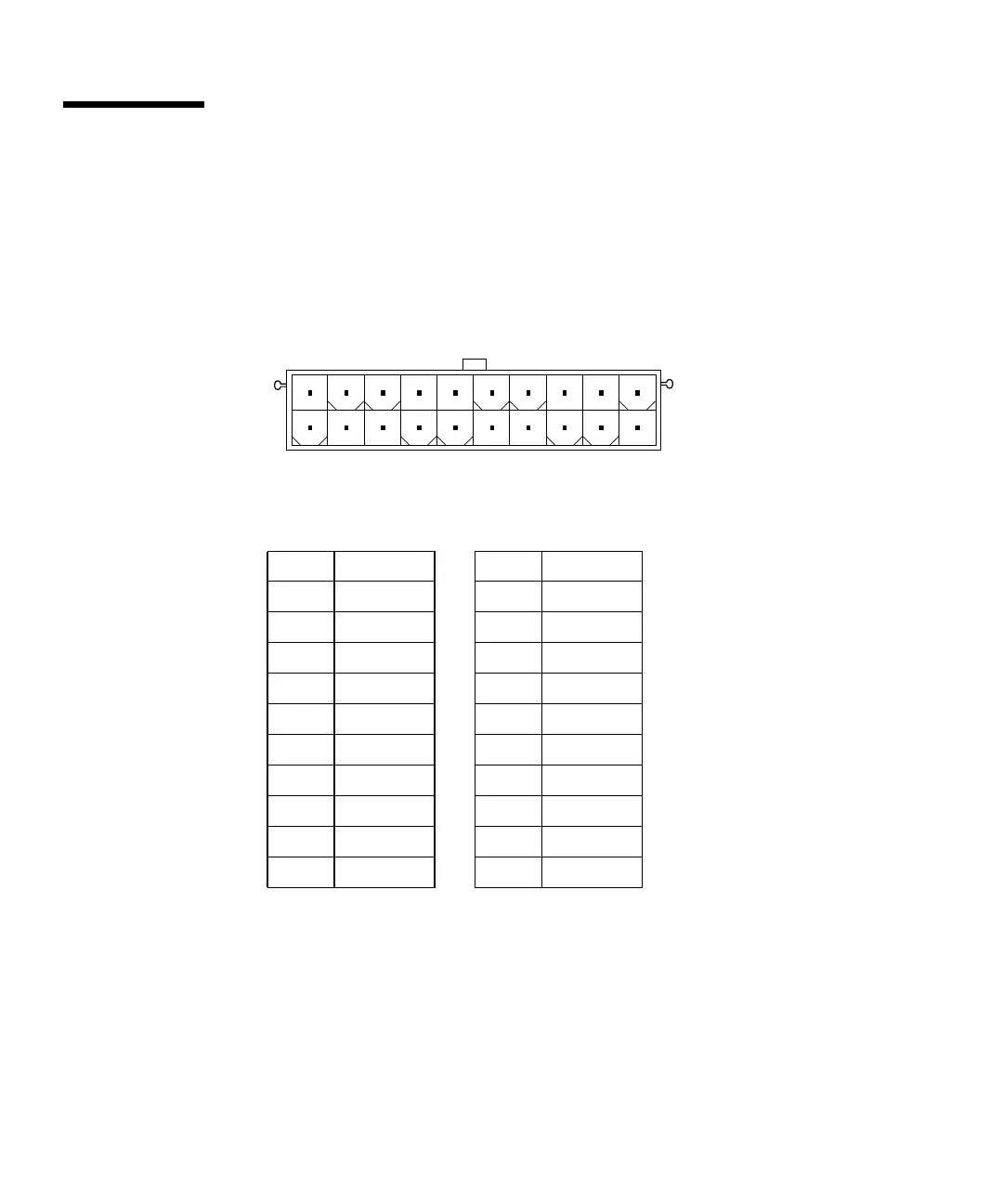

TABLE A-12 ATX Power Connector
Pin Voltage Pin Voltage
1 3.3V 11 3.3V
2 3.3V 12 -12V
3 COM 13 COM
4 5V 14 PS_ON
5 COM 15 COM
6 5V 16 COM
7 COM 17 COM
8 PW_OK 18 -5V
9 5V_SB 19 5V
10 +12V 20 5V
Molex Inc. Part No. 39-29-9202
110
20 11
