A.3.6 PCI 32-Bit Connectors J2001, J2002, J2003
J2101, J2102, J2103

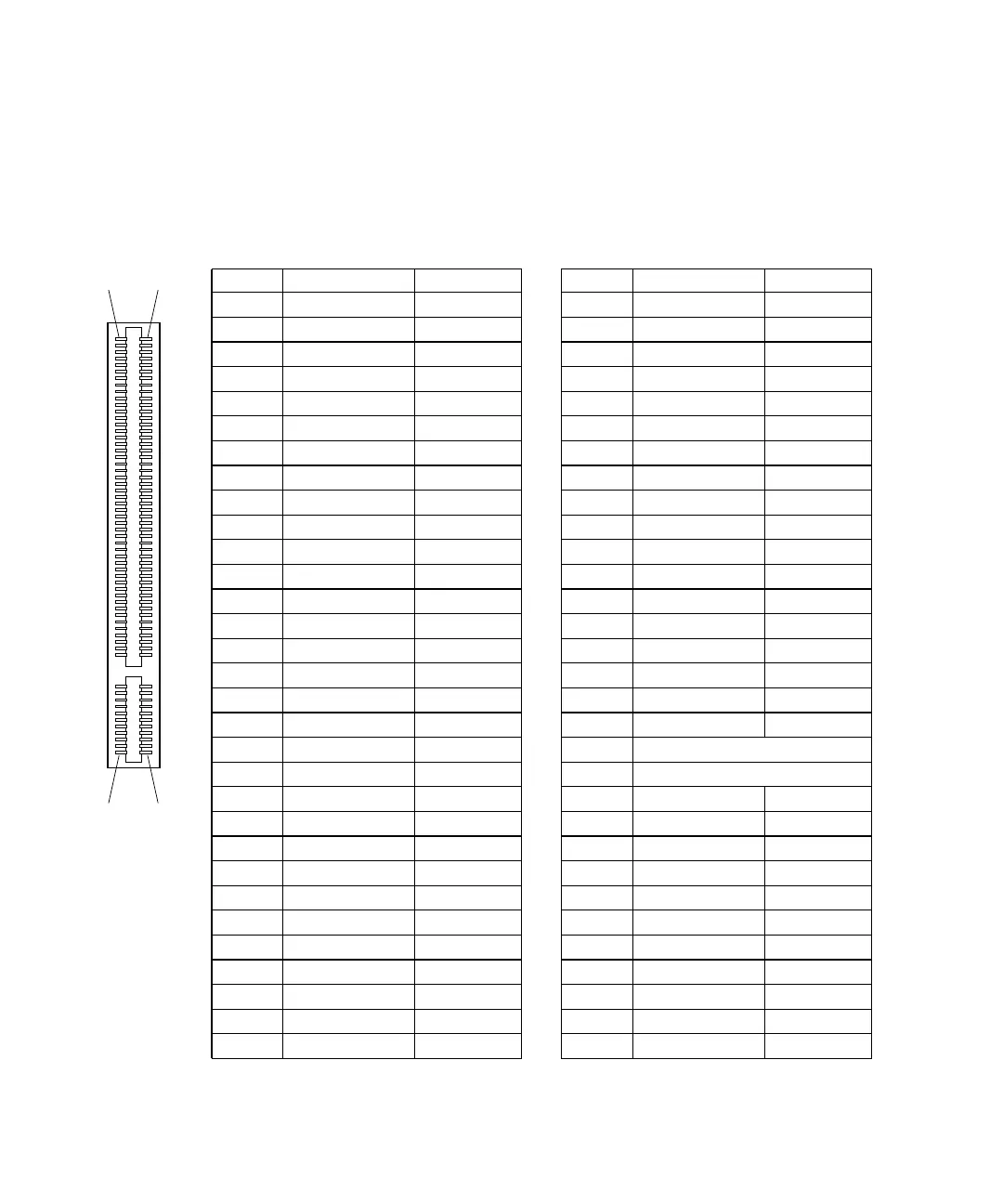

TABLE A-17 32-Bit PCI Connector Pinouts
Pin Side B Side A Pin Side B Side A
1 -12V TRST# 32 AD[17] AD[16]
2 TCK +12V 33 C/BE[2]# +3.3V
3 GND TMS 34 GND FRAME#
4 TDO TDI 35 IRDY# GND
5 +5V +5V 36 +3.3V TRDY#
6 +5V INTA# 37 DEVSEL# GND
7 INTB# INTC# 38 GND STOP#
8 INTD# +5V 39 LOCK# +3.3V
9 PRSNT1# Reserved 40 PERR# SDONE
10 Reserved +5V (I/O) 41 +3.3V SBO#
11 PRSNT#2 Reserved 42 SERR# GND
12 GND GND 43 +3.3V PAR
13 GND GND 44 C/BE[1]# AD[15]
14 Reserved Reserved 45 AD[14] +3.3V
15 GND RST# 46 GND AD[13]
16 CLK +5V (I/O) 47 AD[12] AD[11]
17 GND GNT# 48 AD[10] GND
18 REQ# GND 49 GND AD[09]
19 +5V (I/O) Reserved 50 Connector Key
20 AD[31] AD[30] 51 Connector Key
21 AD[29] +3.3V 52 AD[08] C/BE[0]#
22 GND AD[28] 53 AD[07] 3.3V
23 AD[27] AD[26] 54 +3.3V AD[06]
24 AD[25] GND 55 AD[05] AD[04]
25 +3.3V AD[24] 56 AD[03] GND
26 C/BE[3]# IDSEL 57 GND AD[02]
27 AD[23] +3.3V 58 AD[01] AD[00]
28 GND AD[22] 59 +5V (I/O) +5V (I/O)
29 AD[21] AD[20] 60 ACK64# REQ64#
30 AD[19] GND 61 +5V +5V
31 +3.3V AD[18] 62 +5V +5V
B1 A1
B62 A62
AMP Inc. Part No. 145154-4
