Appendix A Jumpers, Headers, Connectors, and Adapters A-13

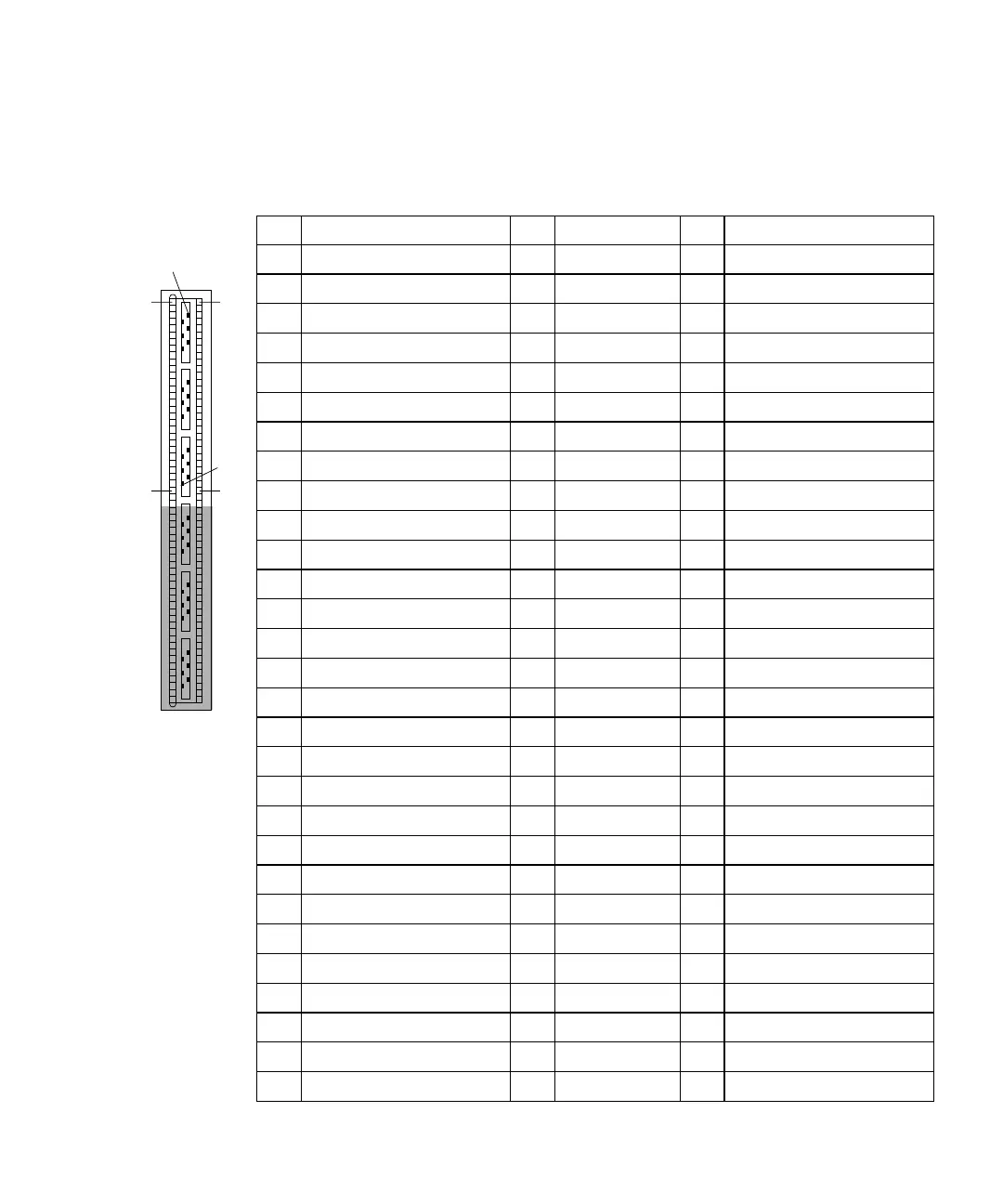

A.3.4 UltraSPARC Module (PCI-66) Connector J0102
TABLE A-15 PCI 66 Connector Pinouts
Pin Signal Name Pin Signal Name Pin Signal Name
2 VDD CORE 1 VDD CORE
4 GND 3 GND
6 VDD CORE 121 VDD CORE 5 VDD CORE
8 GND 122 VDD CORE 7 GND
10 GND 123 VDD CORE 9 GND
12 GND 124 VDD CORE 11 GND
14 VDD CORE 13 VDD CORE
16 GND 15 GND
18 GND 17 GND
20 VDD CORE 19 VDD CORE
22 GND 21 GND
24 VDD CORE 23 VDD CORE
26 GND 125 VDD CORE 25 GND
28 GND 126 VDD CORE 27 GND
30 GND 127 VDD CORE 29 GND
32 VDD CORE 128 VDD CORE 31 VDD CORE
34 GND 33 GND
36 VDD CORE 35 VDD CORE
38 GND 37 GND
40 PAD<01> 39 PAD<00>
42 PAD<03> 41 PAD<02>
44 PAD<05> 43 PAD<04>
46 PCBE_L<0> 129 GND 45 PAD<06>
48 PAD<09> 130 GND 47 PAD<07>
50 PAD<10> 131 GND 49 PAD<08>
52 PAD<12> 132 GND 51 PAD<11>
54 PAD<14> 53 PAD<13>
56 PCBE_L<01> 55 PAD<15>
58 PSERR_L 57 PPAR
AMP Inc. Part No. 536279-5
132
12
121
5758
