Sun Microsystems SPARCengine Ultra AXi User Manual

3-4 SPARCengine Ultra AX i OEM Technical Manual • May 1999
3.2 Layout Diagram

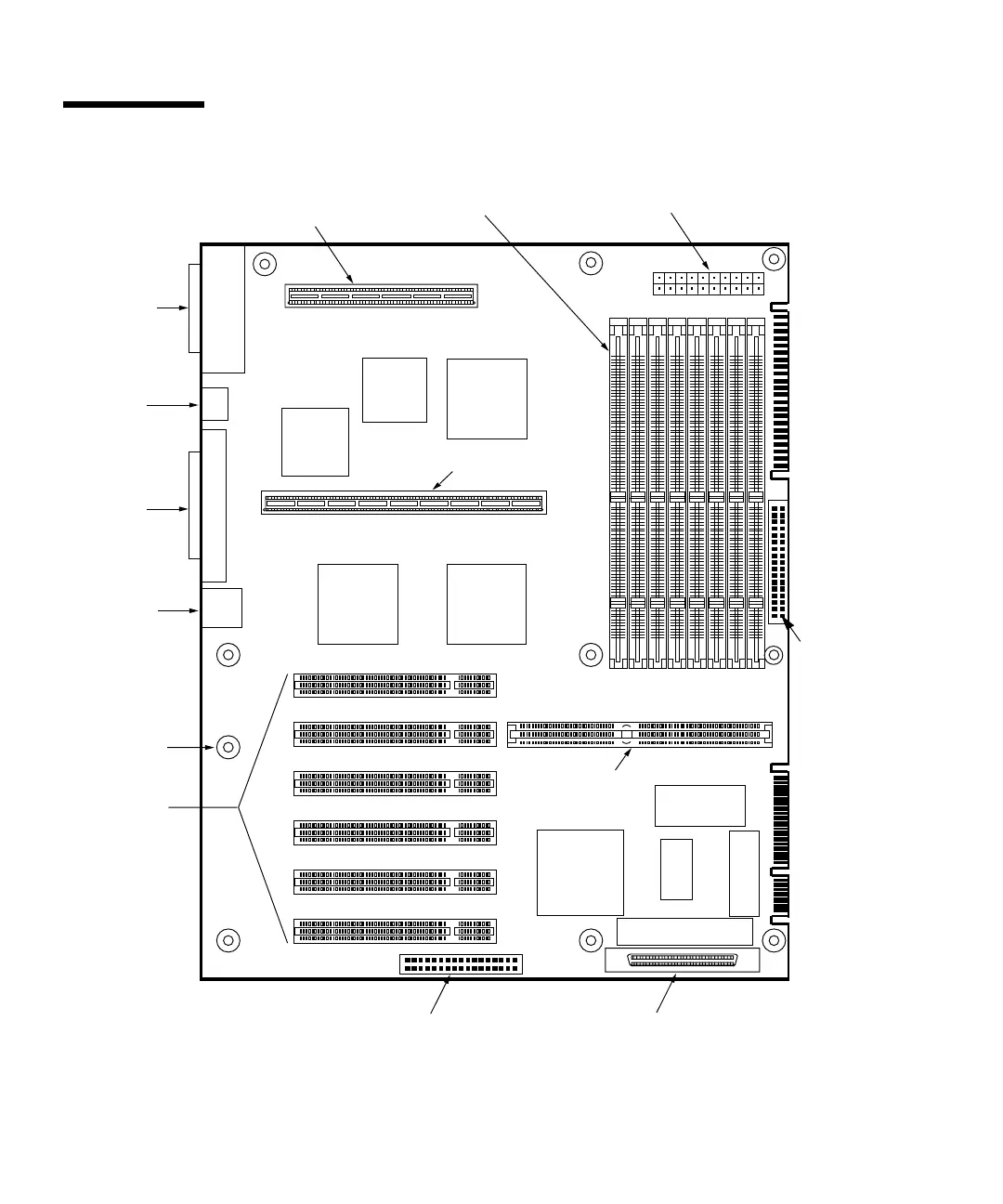

FIGURE 3-2 Ultra AXi Layout
Also see FIGURE A-1 on page A-2 for Header, Jumper and Connector information.
CPU Connector to
PCI 66 Bus
Serial/Parallel
Connectors
SCSI
PCIO
CPU Connector to
Memory/UPA64S
Serial
APB
RIC
Power Connector
Memory
Super I/O
UPA 64S
TOD/
NVRAM
FLASH
Part No., Serial No.
Bar Code
Assy/ Rev No.
ROM Emulator
Internal SCSI Connector
External SCSI
Connector
Mounting Hole
10 places
Floppy
Connector
Pin 1
PCI
Connectors
Sun Keybd/
Mouse
Ethernet

Sun Microsystems SPARCengine Ultra AXi Specifications

General

Brand	Sun Microsystems
Model	SPARCengine Ultra AXi
Category	Motherboard
Language	English
