A.3.13 Sun Keyboard and Mouse J0902

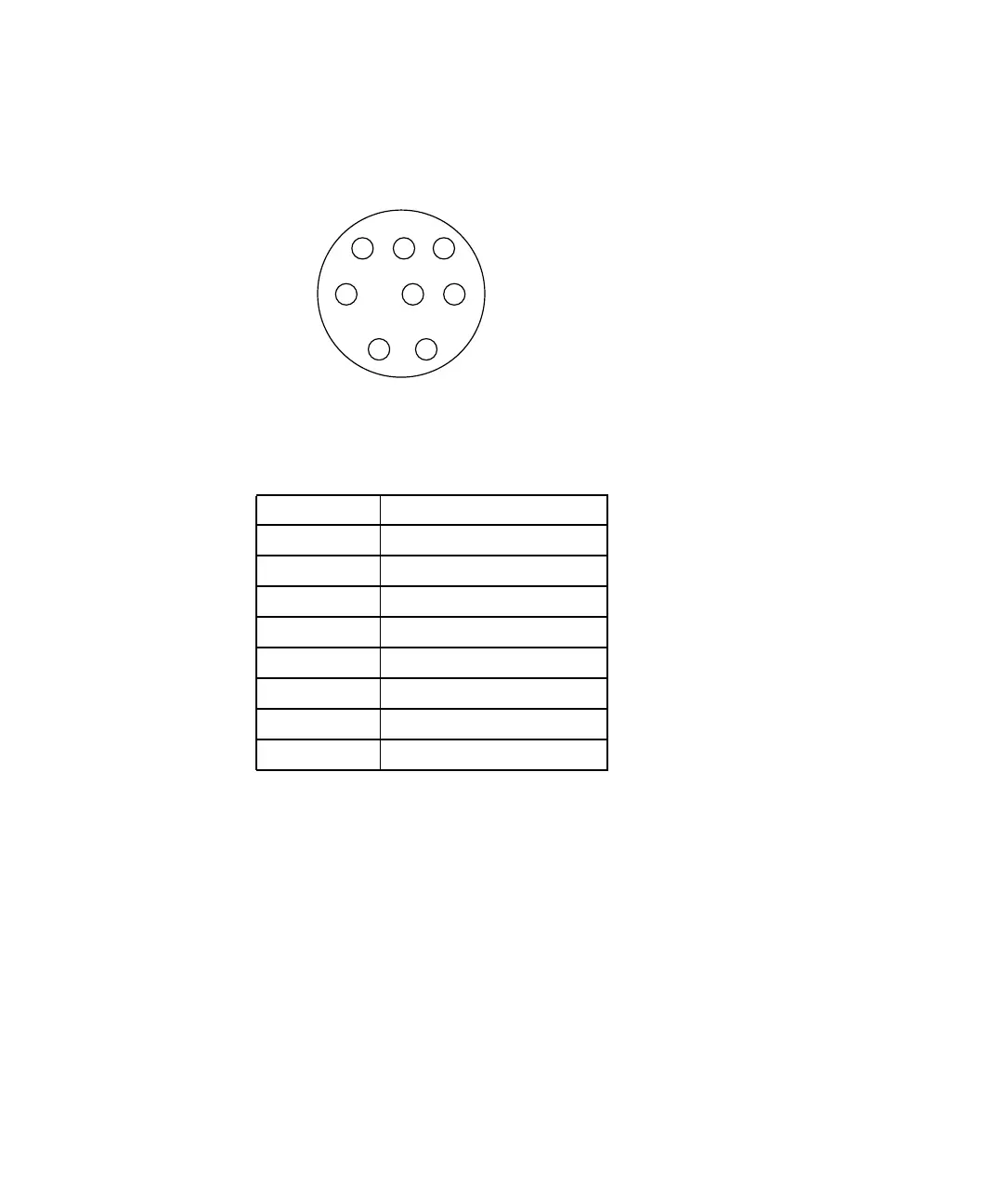

Mini DIN Connector
TABLE A-24 Sun Keyboard/Mouse Connector Pinouts
Pin # Signal
1 GND
2 GND
3 VCC KBD
4MSin
5 SUN_KBD_OUT
6 VCC KBD
7 POWER_ON_L
8 VCC
AMP Inc. Part No. 749179-1
FOXCONN Part No. MH11083-K2-HT
1
6
543
87
2
