A-24 SPARCengine Ultra AX

OEM Technical Manual • May 1999

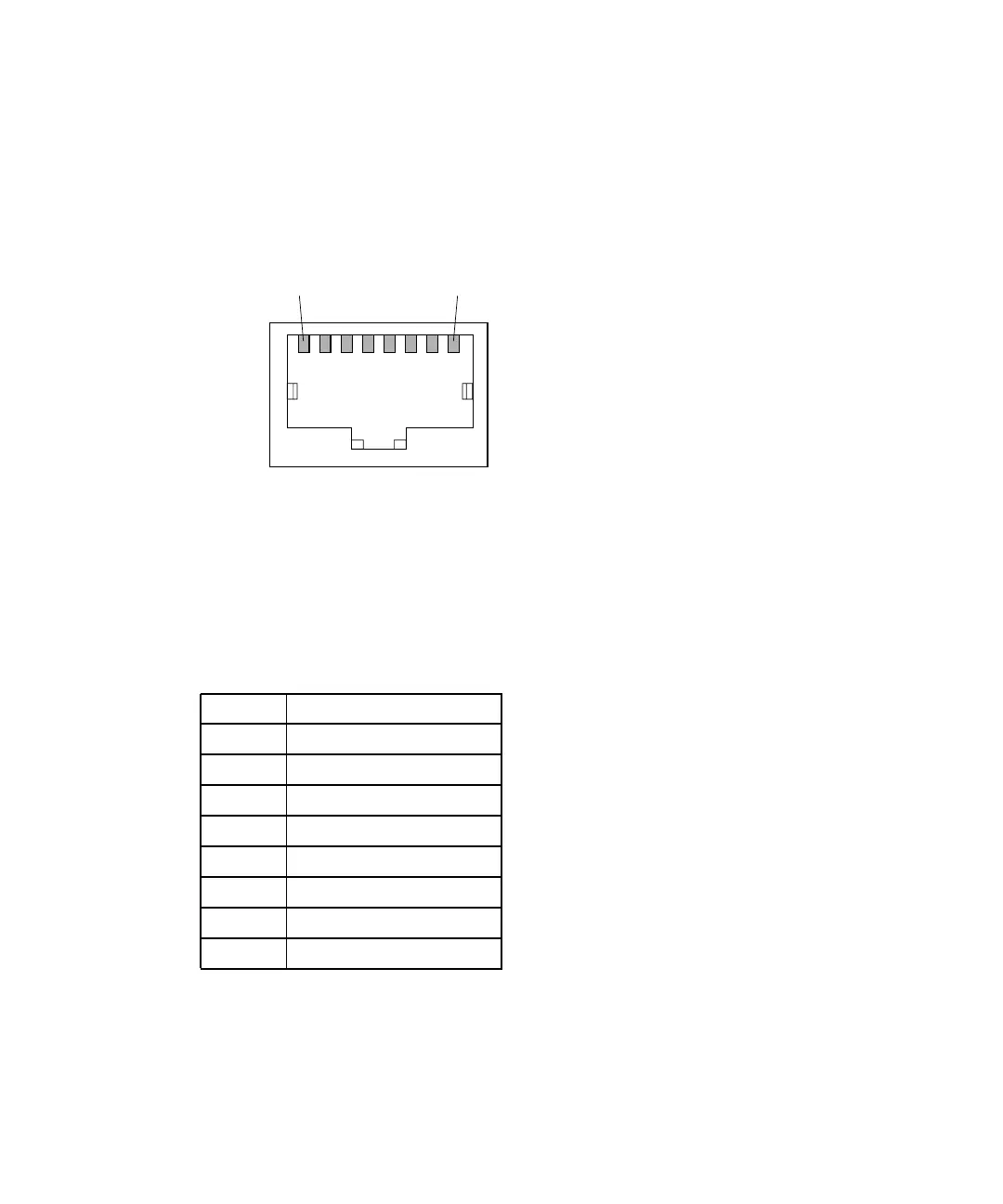

A.3.12 EtherNet Transceiver Connector TP J2301

Twisted pair connection. Auto-configuration determines either 10BASE-T or

100BASE-T operation.

TABLE A-23 Type RJ-45 Connector

Pin # Signal Name

1 Transmit Data +

2 Transmit Data -

3 Receive Data +

4 Presence Detect Tx

5 Presence Detect Tx

6 Receive Data -

7 Presence Detect Rx

8 Presence Detect Rx

Stewart Inc. Part No. SS-6488S-A-NF-SB02

MAXCONN Part No. MJHS-R-88
