Appendix C Assembly, Installation and Initial Start Up Procedures C-17

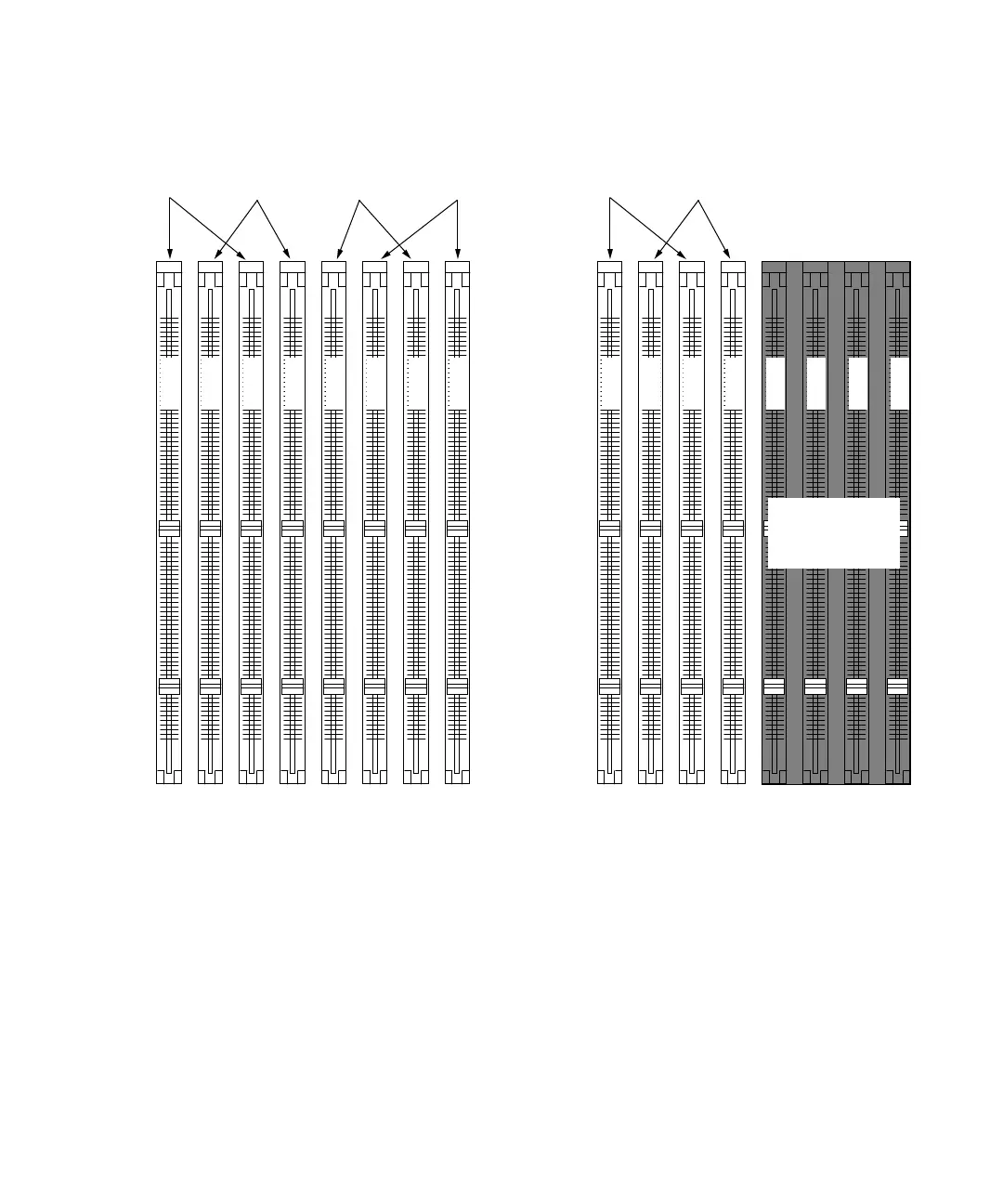

FIGURE C-14 DIMM Sockets Pair Assignments
J0301
J0401 J0302 J0303 J0403 J0304 J0404 J0402
Pair Pair 1
J0301
J0401 J0302 J0303 J0403 J0304 J0404 J0402
Pair Pair 2
10-bit Column Address
11-bit Column Address
DO NOT USE
THESE SOCKETS
Pair Pair 3
