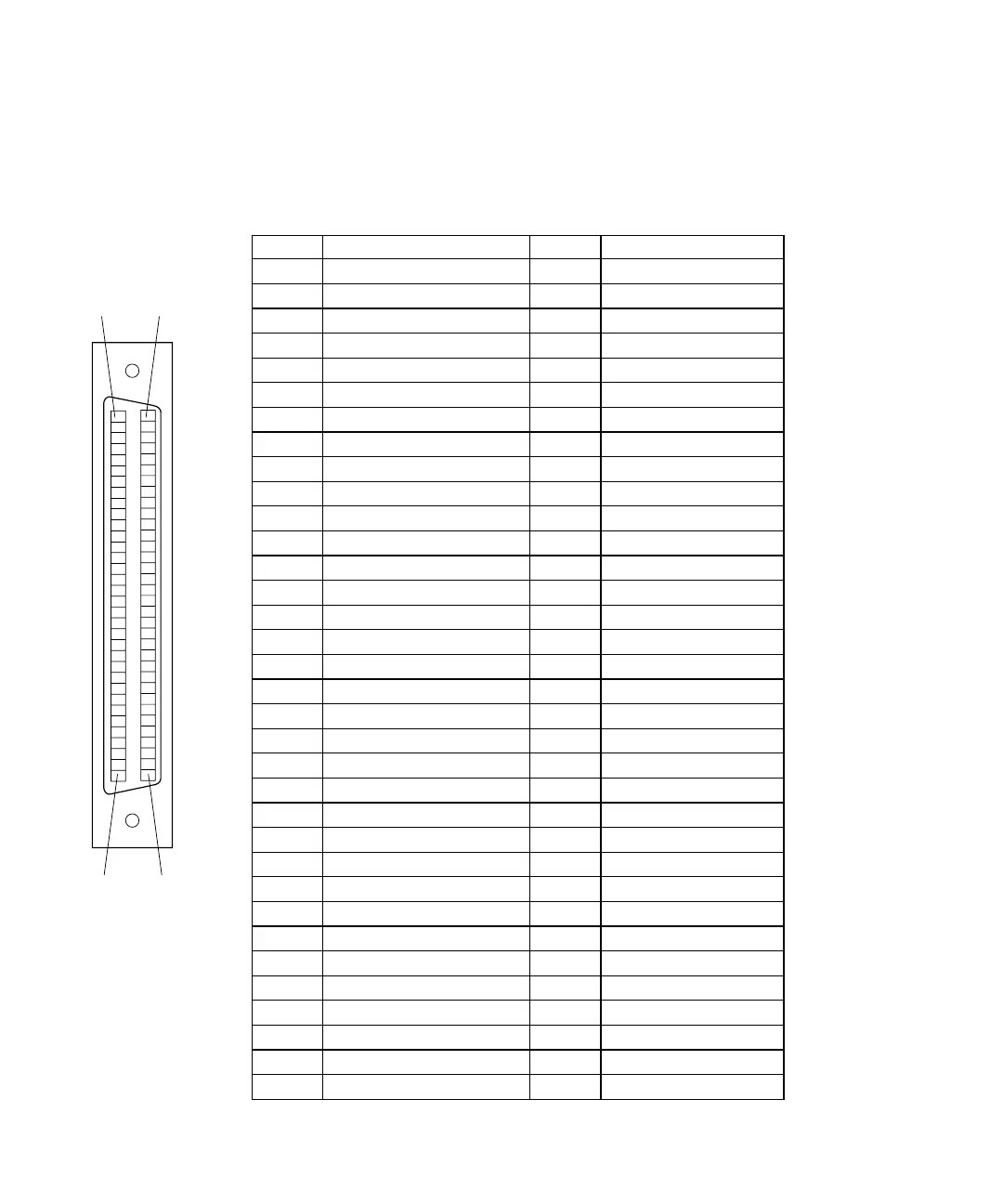

A.3.8 External SCSI Connector J1003
TABLE A-19 SCSI External Connector (Channel B) Pinouts
Pin Signal Name Pin Signal Name
1 GND 35 SCSI_BC_DAT<12>
2 GND 36 SCSI_BC_DAT<13>
3 GND 37 SCSI_BC_DAT<14>
4 GND 38 SCSI_BC_DAT<15>
5 GND 39 SCSI_BC_PAR<1>
6 GND 40 SCSI_BC_DAT<0>
7 GND 41 SCSI_BC_DAT<1>
8 GND 42 SCSI_BC_DAT<2>
9 GND 43 SCSI_BC_DAT<3>
10 GND 44 SCSI_BC_DAT<4>
11 GND 45 SCSI_BC_DAT<5>
12 GND 46 SCSI_BC_DAT<6>
13 GND 47 SCSI_BC_DAT<7>
14 GND 48 SCSI_BC_PAR<0>
15 GND 49 GND
16 GND 50 GND
17 TERMPWRB 51 TERMPWRB
18 TERMPWRB 52 TERMPWRB
19 GND 53 GND
20 GND 54 GND
21 GND 55 SCSI_BC_ATN_L
22 GND 56 GND
23 GND 57 SCSI_BC_BSY_L
24 GND 58 SCSI_BC_ACK_L
25 GND 59 SCSI_BC_RST_L
26 GND 60 SCSI_BC_MSG_L
27 GND 61 SCSI_BC_SEL_L
28 GND 62 SCSI_BC_CD_L
29 GND 63 SCSI_BC_REQ_L
30 GND 64 SCSI_BC_IO_L
31 GND 65 SCSI_BC_DAT<8>
32 GND 66 SCSI_BC_DAT<9>
33 GND 67 SCSI_BC_DAT<10>
34 GND 68 SCSI_BC_DAT<11>
1
35
34
68
AMP Inc. Part No. 749076-7
