5-4 Sun Fire X4450 Server Service Manual • November 2009

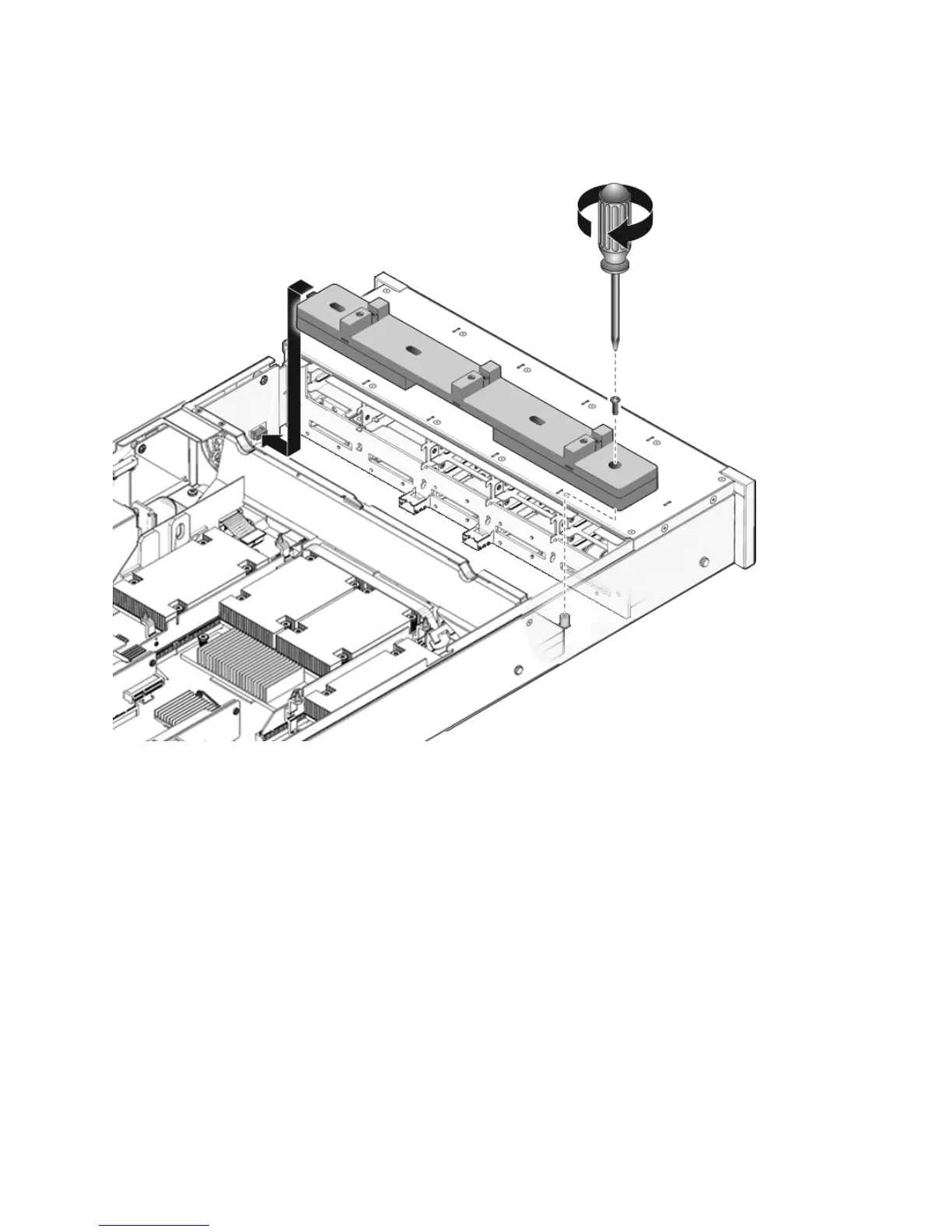

FIGURE 5-2 Installing a Fan Power Board
2. Secure the board to the chassis with a Phillips screw.
3. Reinstall the fan modules.
See Section 3.3.5, “Installing a Fan Module” on page 3-13.
4. Install the top cover.
See Section 6.1, “Installing the Top Cover” on page 6-2.
5. Slide the server into the rack.
See Section 6.3, “Returning the Server to the Normal Rack Position” on page 6-4.
6. Reconnect the power cord (or cords) to the power supply (or supplies).
Verify that the AC Present LED is lit.
See Section 6.4, “Powering On the Server” on page 6-5.
