Chapter 5 Servicing Infrastructure Boards and Components 5-21
11. Lift the cables out of the chassis.

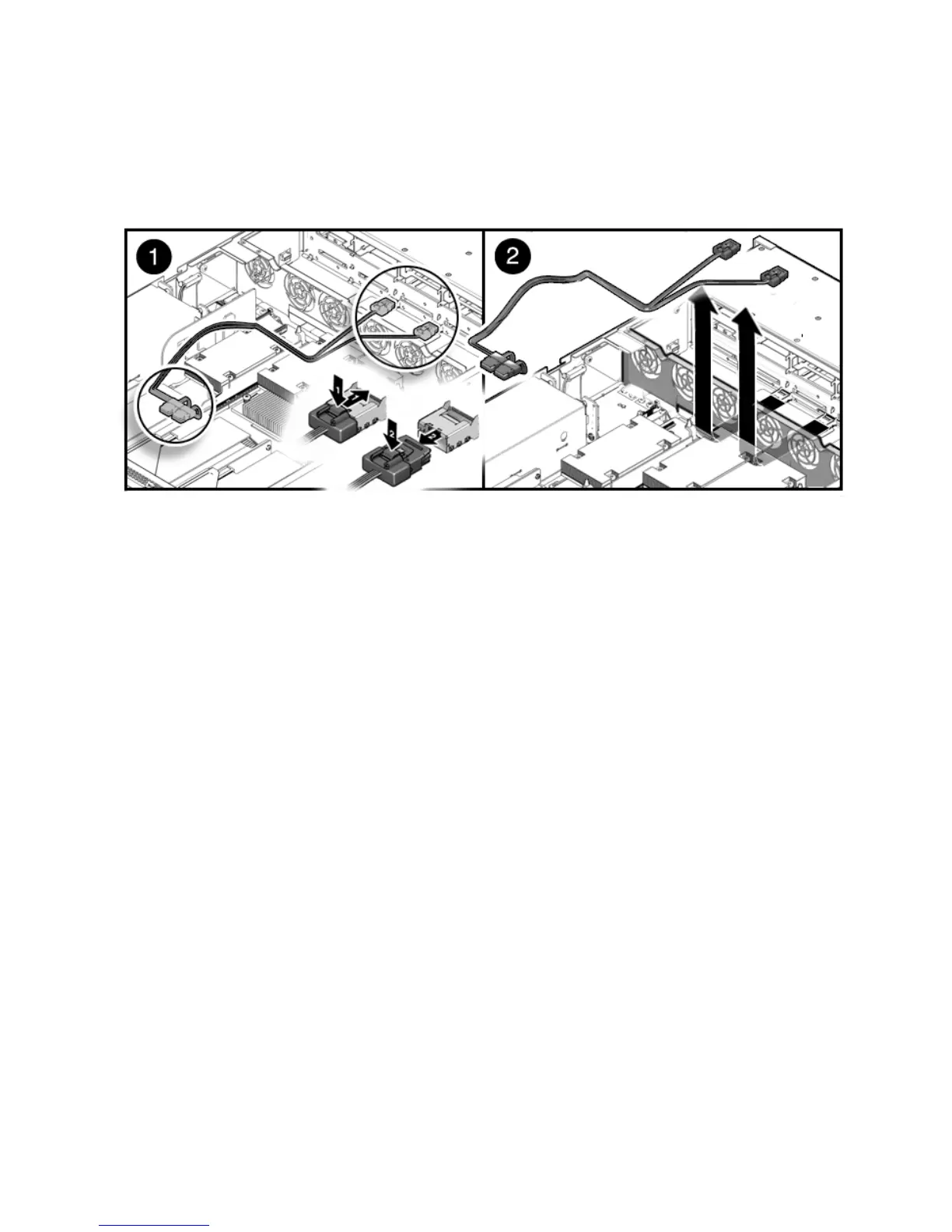

FIGURE 5-14 Removing Drive Cables in a SAS Configuration
5.8.2 Installing HD Cables in a SAS Configuration
To install two drive cables; Disk 0-3 and Disk 4-7 in a SAS configuration, do the
following.
1. Prepare the server for service.
a. Power off the server.
See Section 2.4, “Powering Off the Server” on page 2-3.
b. Disconnect the power cord (or cords) from the power supply (or supplies).
See Section 2.4, “Powering Off the Server” on page 2-3.
c. Slide the server out of the rack.
See Section 2.5, “Extending the Server to the Maintenance Position” on
page 2-5.
d. Attach an antistatic wrist strap.
See Section 2.7, “Performing Electrostatic Discharge and Antistatic Prevention
Measures” on page 2-9.
e. Remove the top cover.
See Section 2.8, “Removing the Top Cover” on page 2-11.
2. Remove the memory tray.
See Section 4.2.1, “Removing the Memory Tray” on page 4-11.
