1-6 Sun Fire X4450 Server Service Manual • November 2009
1.3 Sun Fire X4450 Server Front Panel
Features
FIGURE 1-2 shows front panel features on the Sun Fire X4450 server.

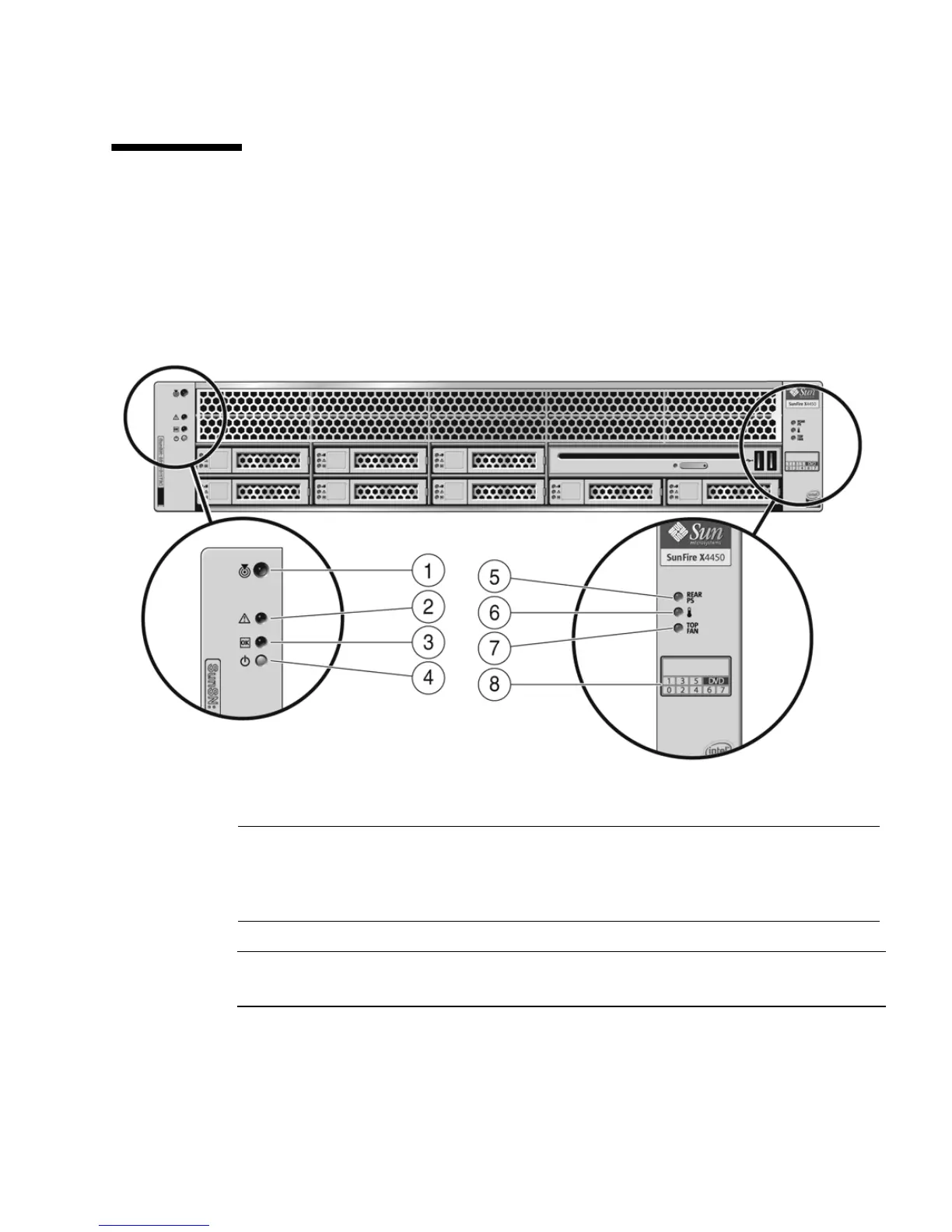

FIGURE 1-2 Front Panel Features
Note – When a faulty component is identified internally on the server, such as a
DIMM module LED turning on, the Service LED is also lit.
Figure Leg end
1 Locator LED/Locator button (white) 5 Power Supply Service Required LED (amber)
2 Service Action Required LED (amber) 6 System Overtemperature LED (amber)
3 Power/OK LED (green) 7 Fan Module Service Required LED (amber)
4 Power button 8 Drive map
