Sun Microsystems Sun Fire X4450 - Installing a PDB Cable

5-26 Sun Fire X4450 Server Service Manual • November 2009

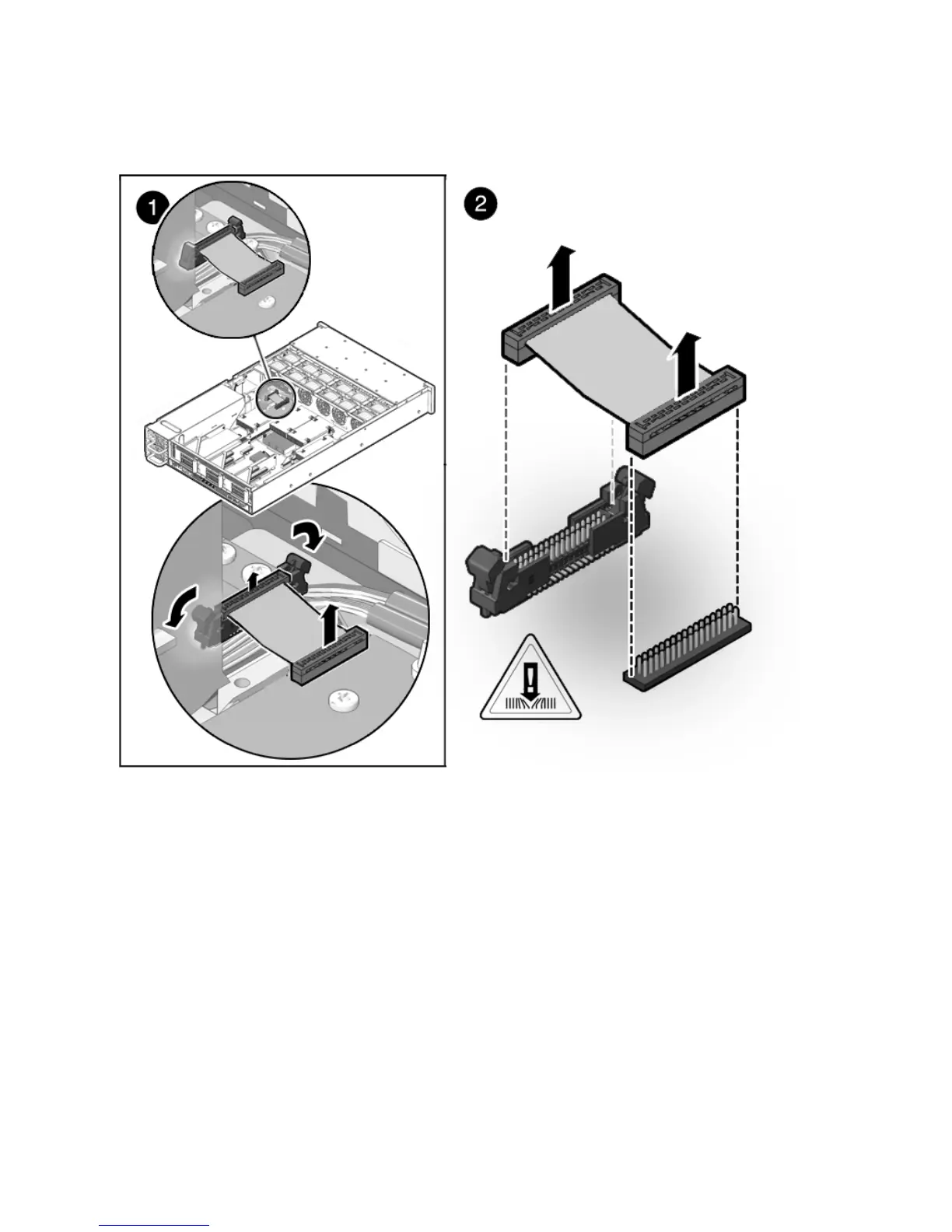

FIGURE 5-17 Removing a PDB Cable
5.8.4 Installing a PDB Cable
To install a Power Distribution Board cable.
1. Remove the PDB cable.
2. Inspect the motherboard pin field to ensure all pins are straight.
3. Open the latches on the PDB connector.
Ensure key of cable lines up with slot on the connector.
4. Push the cable connector into the PDB connection until it is seated. (
FIGURE 5-18)
The latches should be above the connector housing.
