Appendix A Connector Pinouts A-3
A.2 Network Management Port Connector
The network management connector (labeled NET MGT) is an RJ-45 connector
located on the motherboard and can be accessed from the back panel. This port needs
to be configured prior to use.

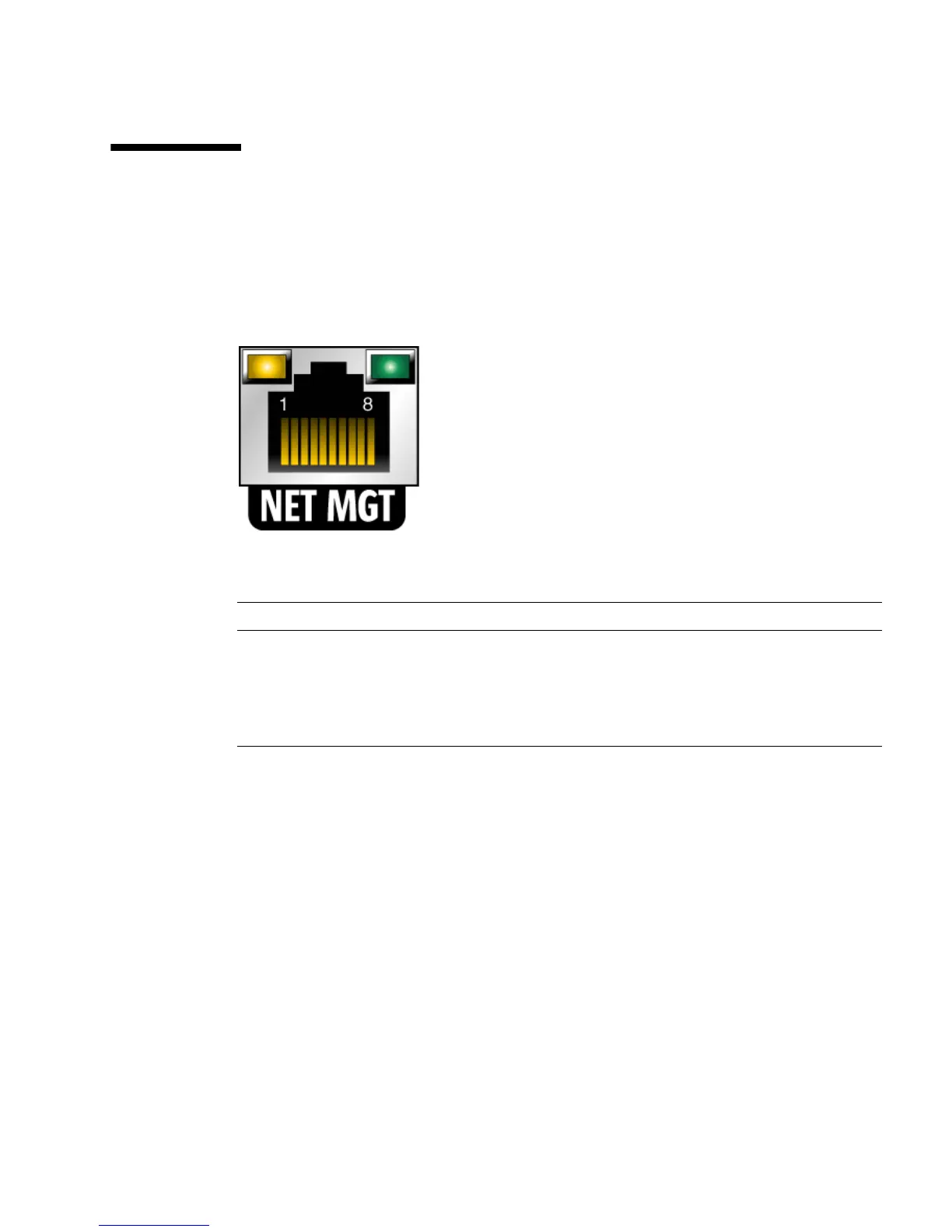

FIGURE A-3 Network Management Connector Diagram
TABLE A-2 Network Management Connector Signals
Pin Signal Description Pin Signal Description
1 Transmit Data + 5 Common Mode Termination
2 Transmit Data – 6 Receive Data –
3 Receive Data + 7 Common Mode Termination
4 Common Mode Termination 8 Common Mode Termination
