1.4 Sun Fire X4450 Server Rear Panel
Features

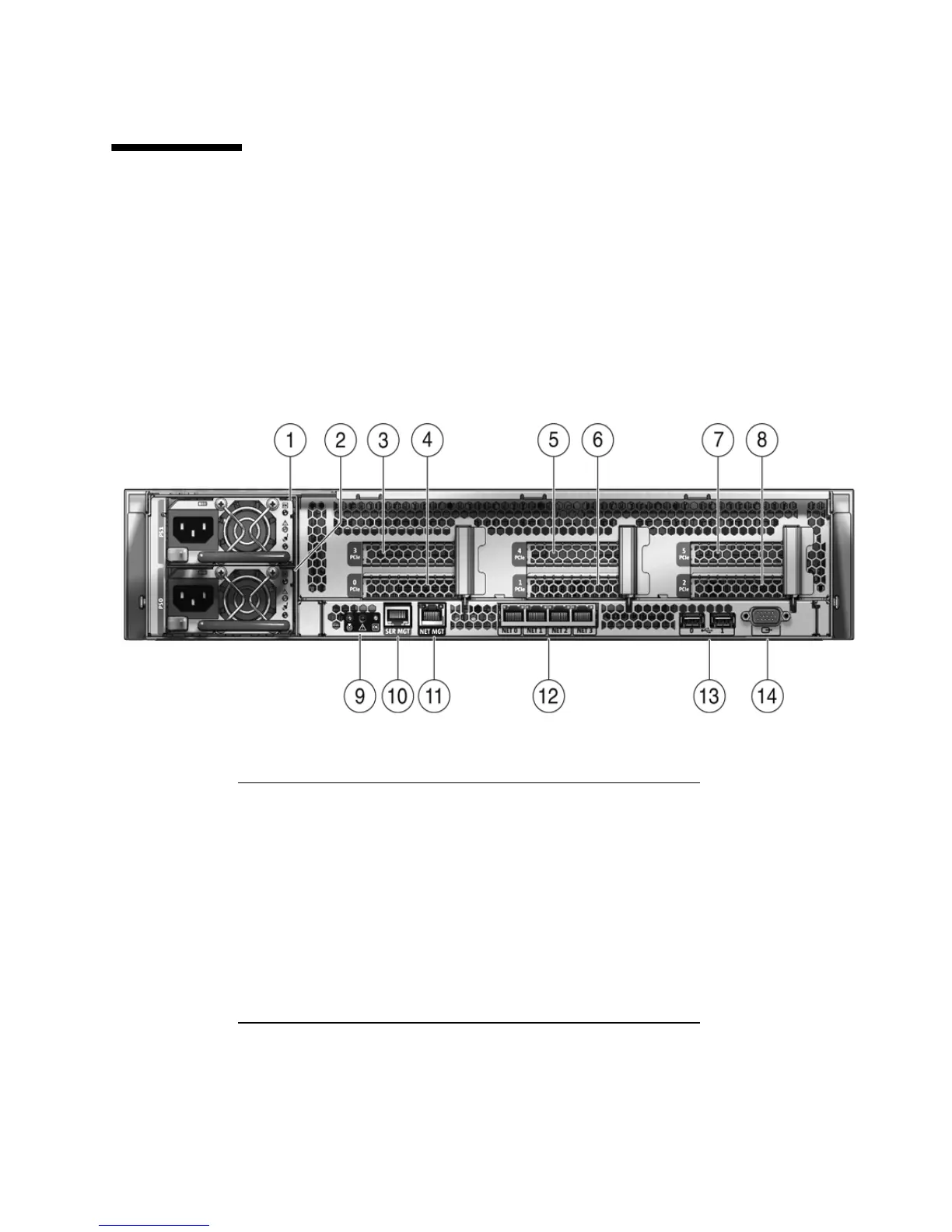

FIGURE 1-3 shows rear panel features on the Sun Fire X4450 server. For more detailed
information about ports and their uses, see the Sun Fire X4450 Server Installation
Guide. For a detailed description of PCIe slots, see Section 4.5, “Servicing PCIe
Risers” on page 4-20.
FIGURE 1-3 Rear Panel Features
Figure Leg end
1 PSU 1 9 Rear Panel System Status LEDs
Locator LED/Locator button (white)
Service Action Required LED (amber)
Power/OK LED (green)
2 PSU 0 10 Serial Management Port
3 PCIe 3 11 Network Management Port
4 PCIe 0 NMI button (Behind panel, not shown)
5 PCIe 4 Reset Button (Behind panel, not shown)
6 PCIe 1 12 Gbit Ethernet Ports (Net 0, 1, 2, 3)
7 PCIe 5 13 USB Ports (0, 1)
8 PCIe 2 14 HD-15 Video Port
